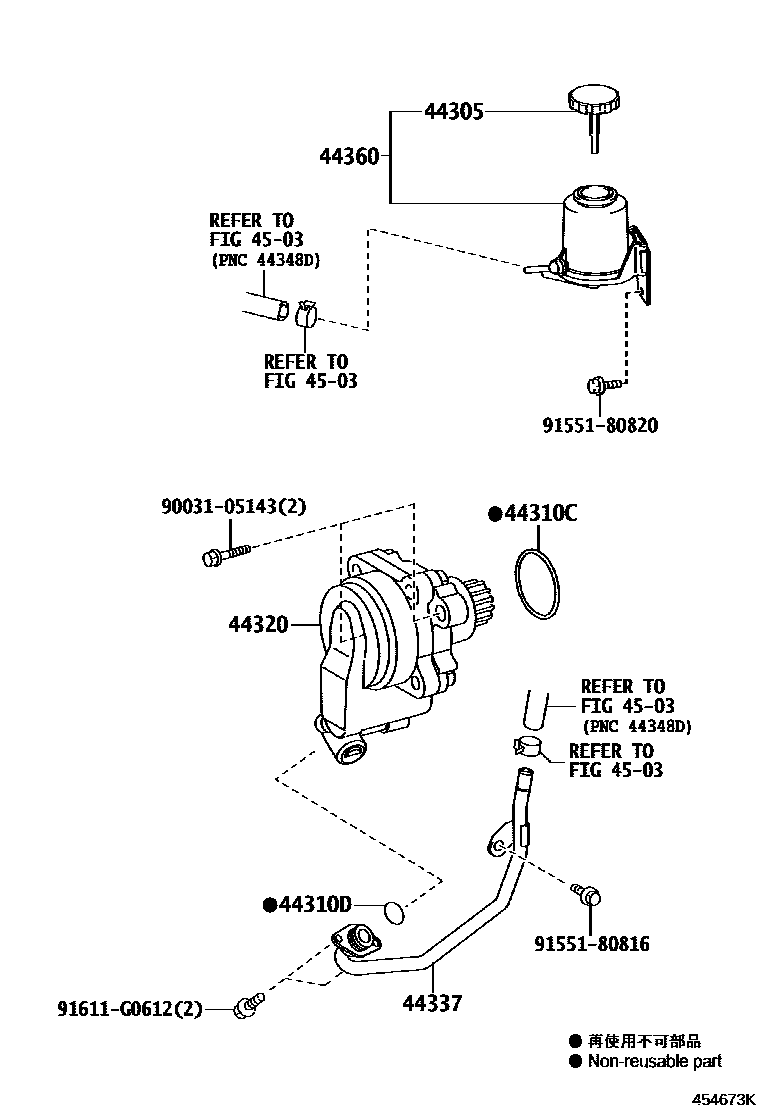

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-37030iWU600,650201107-201112

main44305-37031iXZU600..GCC;WU600,650,XZU650201201-202005

44310CRING, O(FOR VANE PUMP)

main90301-60002iXZU600..GEN201911

44310DRING, O(FOR VANE PUMP UNION)

main90301-15019iXZU600,650..GCC201605-202005

main96711-19022iWU600,650201107-202005

44320PUMP ASSY, VANE

main44310-37160iWU600,650201107-202005

main44310-37180iXZU600,650..GCC201605-202005

44337UNION, POWER STEERING SUCTION PORT

main44337-37350iWU600,650201107-202005

main44337-37370iXZU600,650..GCC201605-202005

main44337-37402iXZU600..GEN201911

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-37220iXZU600..GCC;WU600,650,XZU650201107-202005

4503POWER STEERING TUBE

→ Go to FIG 45-03

9003105143

main90031-05143

9155180816

main91551-80816

9155180820

main91551-80820

91611G0612

main91611-G0612

11 parts on this diagram · 2 diagrams in section
