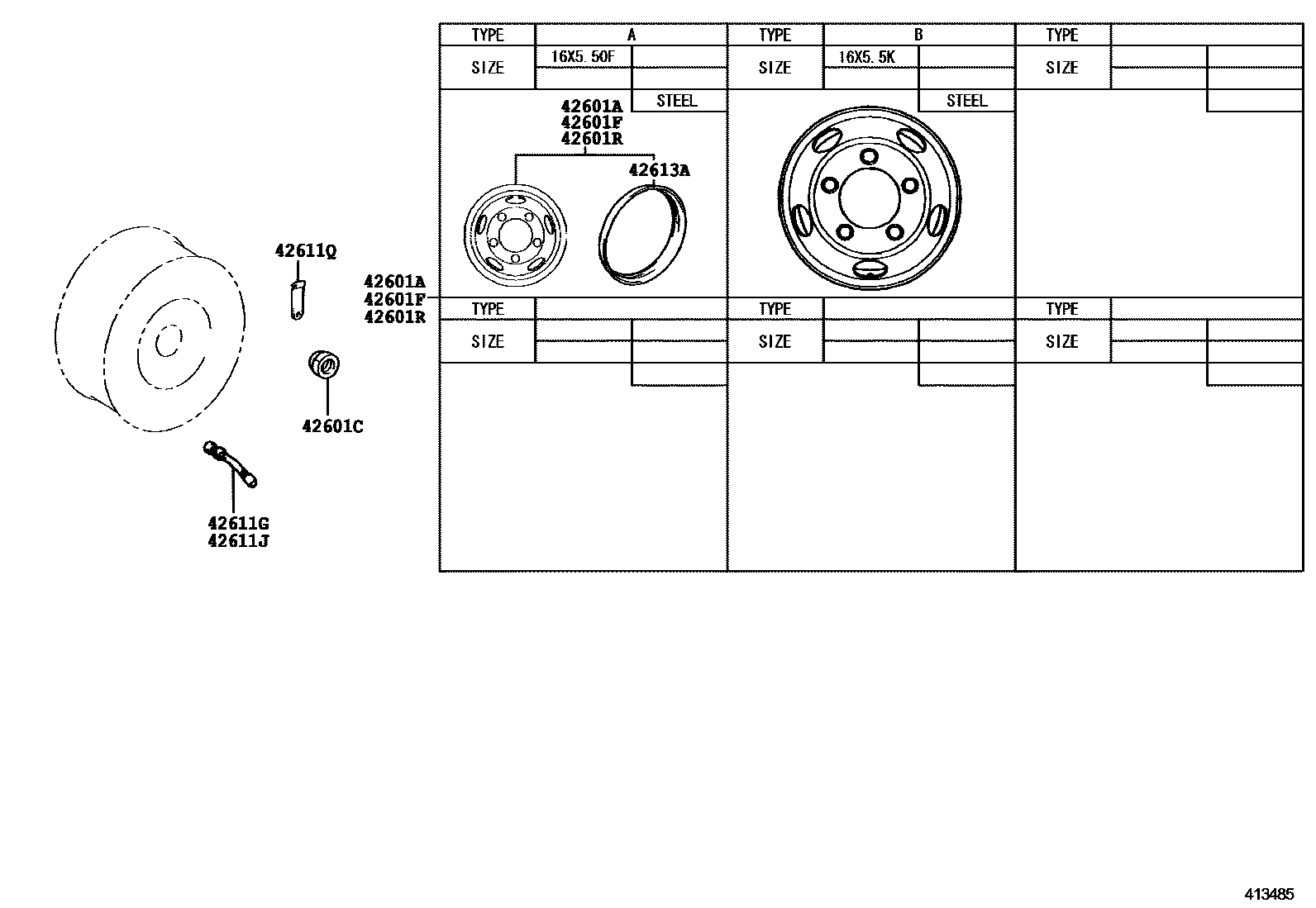

DISC WHEEL & WHEEL CAP

0001 1 0002 1

42601AWHEEL, DISC (FOR SPARE)

main42610-37091iXZU600..GEN201911

16X5.50F, #,TYPE A:REFER ILLUST.

main42601-37240iWU600,650,XZU600,650..GCC201107-202005

16X5.5K, #,TIRE & DISC WHEEL-195/85R16 114 RIB,TYPE B:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main42633-37020×5iXZU600..GCC;WU600,650,XZU650..WT201107-202005

REAR RH

main42634-37020×5iXZU600..GCC;WU600,650,XZU650..WT201107-202005

REAR LH

main43522-37010×5iXZU600..GEN201911

FRONT RH

main43522-37020×5iWU600..ST; XZU600..GCC;WU600,650,XZU650201107-202005

FRONT LH; REAR LH

42601FWHEEL, DISC (FOR FRONT)

main42610-37091×2iXZU600..GCC;WU600,650,XZU650201107-202005

16X5.50F, #,TYPE A:REFER ILLUST.

main42601-37240×2iWU600,650,XZU600,650..GCC201107-202005

16X5.5K, #,TIRE & DISC WHEEL-195/85R16 114 RIB,TYPE B:REFER ILLUST.

42601RWHEEL, DISC (FOR REAR)

main42610-37091×2iWU600..ST; XZU600..GCC;WU600,650,XZU650..WT201107-202005

16X5.50F, #,TYPE A:REFER ILLUST.

main42601-37240×2iWU600..ST..GCC201107-201505

16X5.5K, #,TIRE & DISC WHEEL-195/85R16 114 RIB,TYPE B:REFER ILLUST.

42611GVALVE (FOR TUBELESS TIRE)

main90942-05026×4iWU600..ST..GCC201107-201505

TIRE & DISC WHEEL-195/85R16 114 RIB

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05026iWU600,650,XZU600,650..GCC201107-202005

TIRE & DISC WHEEL-195/85R16 114 RIB

42611QCLIP (FOR TUBE)

main90468-10014×5iWU600..ST; XZU600..GCC;WU600,650,XZU650..WT201107-202005

42613ARING, DISC WHEEL SIDE

main42613-37030×5iWU600..ST; XZU600..GCC;WU600,650,XZU650..WT201107-202005

8 parts on this diagram · 2 diagrams in section
