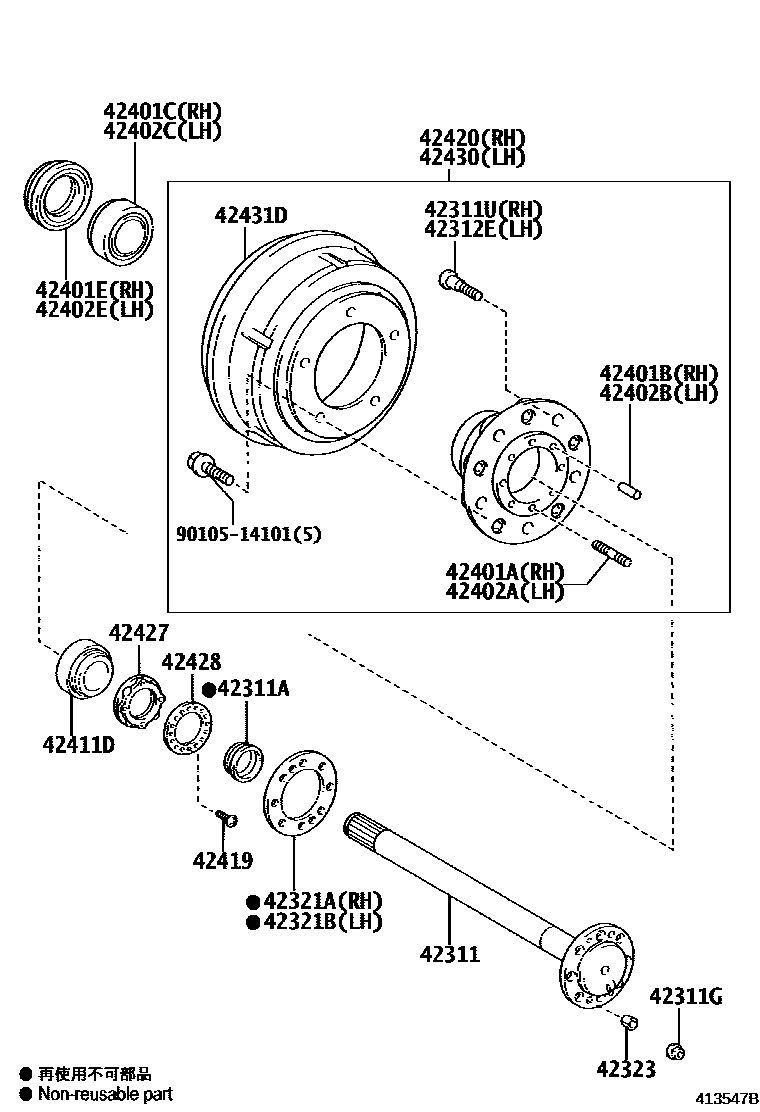

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1REAR DISC BRAKE 0004 1REAR DRUM BRAKE

42311SHAFT, REAR AXLE

main42311-37080×2iWU600,650..WT..DCRTH201107-202005

main42311-37090×2iWU600..ST201107-202005

main42311-37110×2iWU600,XZU600,650..DCRTJ201107-202005

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90310-38033×2iXZU600..GEN201911

main90310-40001×2iWU600,XZU600,650..DCRTJ201107-202005

42311GNUT(FOR REAR AXLE SHAFT)

main90179-10067×12iWU600,650..DCRTH; WU600,XZU600,650..DCRTJ201107-202005

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02071iXZU600..GCC;WU600,650,XZU650201107-202005

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02072iXZU600..GCC;WU600,650,XZU650201107-202005

42321AGASKET, REAR AXLE SHAFT, RH

main42321-37020iXZU600..GCC;WU600,650,XZU650201107-202005

42321BGASKET, REAR AXLE SHAFT, LH

main42321-37020iXZU600..GCC;WU600,650,XZU650201107-202005

42323WASHER, CONE (FOR REAR AXLE SHAFT)

main42323-36010×12iWU600,650..DCRTH; WU600,XZU600,650..DCRTJ201107-202005

42401ABOLT, STUD (FOR REAR AXLE HUB RH)

main90116-10191×6iWU600,650..DCRTH; WU600,XZU600,650..DCRTJ201107-202005

42401BPIN, STRAIGHT (FOR REAR AXLE HUB RH)

main90250-10055×2iXZU600..GCC;WU600,650,XZU650201107-202005

42401CBEARING (FOR REAR AXLE HUB INNER RH)

main90366-60012iXZU600..GCC;WU600,650,XZU650201107-202005

42401ESEAL, OIL (FOR REAR AXLE HUB RH)

main90311-78001iXZU600..GCC;WU600,650,XZU650201107-202005

42402ABOLT, STUD (FOR REAR AXLE HUB LH)

main90116-10191×6iWU600,650..DCRTH; WU600,XZU600,650..DCRTJ201107-202005

42402BPIN, STRAIGHT (FOR REAR AXLE HUB LH)

main90250-10055×2iXZU600..GCC;WU600,650,XZU650201107-202005

42402CBEARING (FOR REAR AXLE HUB INNER LH)

main90366-60012iXZU600..GCC;WU600,650,XZU650201107-202005

42402ESEAL, OIL (FOR REAR AXLE HUB LH)

main90311-78001iXZU600..GCC;WU600,650,XZU650201107-202005

42411DBEARING, TAPERED ROLLER (FOR REAR AXLE OUTER BEARING)

main90366-55054×2iXZU600..GCC;WU600,650,XZU650201107-202005

42419SCREW, REAR AXLE BEARING LOCK NUT

main93311-16012×4iXZU600..GEN201911

42420HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, RH

main42420-39106iWU600..DCRTJ201107-202005

main42420-39245iWU600..ST201107-202005

main42420-39255iWU600,650..WT..DCRTH201107-202005

main42420-39066supersedes 42420-39255iXZU600..GEN201911

FRONT WHEEL BRAKE-DISC&ABS-WITH(WITH POWER ASSIST BRAKE)

main42420-39086supersedes 42430-39665iXZU600,650..GCC201605-202005

REAR WHEEL BRAKE-DRUM & WITH(AUTO ADJUSTER)

42427NUT, REAR AXLE BEARING LOCK

main42427-37020×2iXZU600..GCC;WU600,650,XZU650201107-202005

42428PLATE, REAR AXLE LOCK NUT

main42428-36020×2iXZU600..GCC;WU600,650,XZU650201107-202005

42430HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, LH

main42430-39106iWU600..DCRTJ201107-202005

main42430-39275iWU600..ST201107-202005

main42430-39285iWU600,650..WT..DCRTH201107-202005

main42430-39066supersedes 42430-39285iXZU600..GEN201911

FRONT WHEEL BRAKE-DISC&ABS-WITH(WITH POWER ASSIST BRAKE)

main42430-39086supersedes 42430-39675iXZU600,650..GCC201605-202005

REAR WHEEL BRAKE-DRUM & WITH(AUTO ADJUSTER)

42431DISC, REAR

main42431-37091×2iXZU600,650..GCC201605-202005

42431DDRUM, BRAKE

main42431-37080×2iXZU600..GEN201911

9010514101

main90105-14101

25 parts on this diagram · 4 diagrams in section
