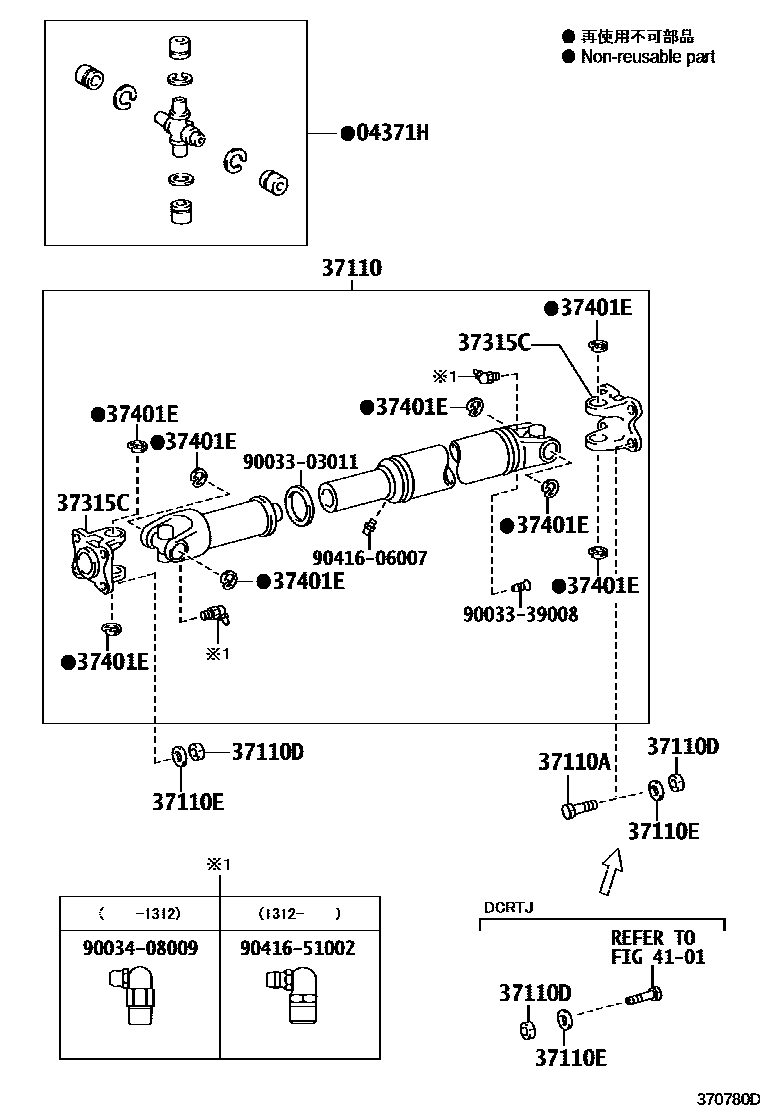

PROPELLER SHAFT & UNIVERSAL JOINT

0001 1 0002 1 0003 1 0004 1

04371HSPIDER KIT, REAR PROPELLER SHAFT UNIVERSAL JOINT

main04371-37080iWU600,650201107-201402

main04371-37081iWU600,650,XZU600,650201402-201611

main04371-37110×2iWU600;XZU600..GCC; WU650,XZU650201611-202005

main04371-37120×2iXZU600202111

37110SHAFT ASSY, PROPELLER

main37110-37B61iWU650,XZU650201107-202005

main37110-37C01iXZU600..GEN201911

main37110-37F41iWU600..ST..CBU;WU600..WT..DCRTH;WU600..ST..GCC..IV3201107-202005

37110ABOLT (FOR PROPELLER SHAFT)

main90031-01165×4iWU600,650..DCRTH201107-202005

*12-1.25PX35-17

37110DNUT (FOR PROPELLER SHAFT)

main90170-12005×8iXZU600..GCC;WU600,650,XZU650201107-202005

37110EWASHER (FOR PROPELLER SHAFT)

main94512-01200×8iXZU600..GCC;WU600,650,XZU650201107-202005

37315CYOKE, NO.1, REAR PROPELLER SHAFT UNIVERSAL JOINT FLANGE

main37315-37070×2iXZU600..GEN201911

37401ERING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARING)

main90035-21038×8iXZU600..GEN201911

T=1.68

main90035-21039×8iXZU600..GCC;WU600,650,XZU650201107-202005

T=1.65

main90035-21040×8iXZU600..GCC;WU600,650,XZU650201107-202005

T=1.62

main90035-21041×8iXZU600..GCC;WU600,650,XZU650201107-202005

T=1.59

main90035-21042×8iXZU600..GCC;WU600,650,XZU650201107-202005

T=1.56

main90035-21043×8iXZU600..GCC;WU600,650,XZU650201107-202005

T=1.53

main90035-21044×8iXZU600..GEN201911

T=1.50

4101REAR AXLE HOUSING & DIFFERENTIAL

→ Go to FIG 41-01

9003303011

main90033-03011

9003339008

main90033-39008

9003408009

main90034-08009

9041606007

main90416-06007

9041651002

main90416-51002

13 parts on this diagram · 4 diagrams in section
