MECHANICAL GOVERNOR

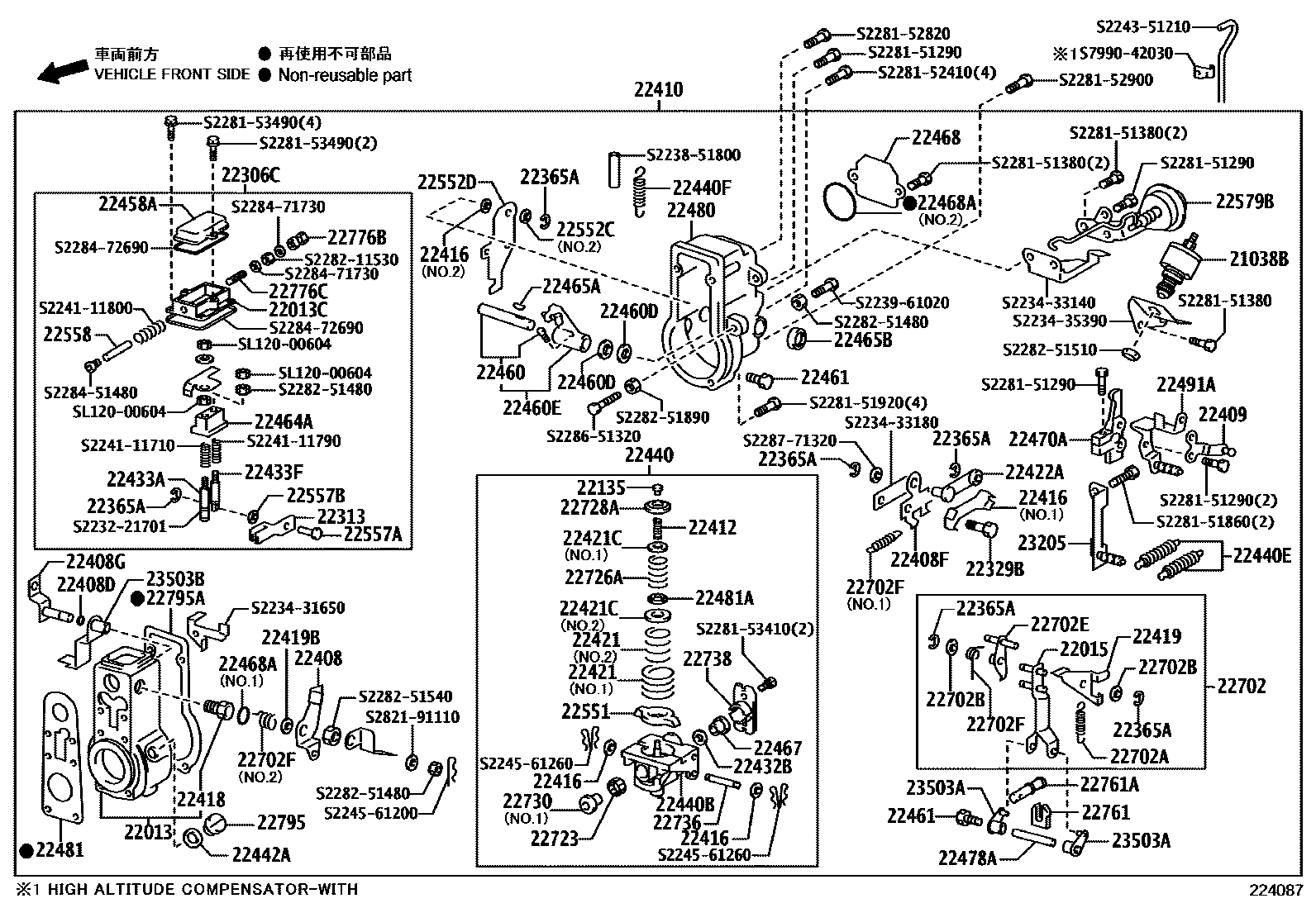

Parts diagram
21038BCOMPENSATOR SUB-ASSY, ANEROID
mainS224401100i201107-202005
HIGH ALTITUDE COMPENSATOR-WITH
22013HOUSING SUB-ASSY, FULLROAD STOPPER
mainS223011190i201107-202005
22013CHOUSING, FULLROAD STOPPER, NO.2
mainS223711130i201107-202005
22015LEVER SUB-ASSY, FLOATING
mainS223501182i201107-202005
22135NUT, ADJUSTING TAPPET
mainS228252310×2i201107-202005
22306CHOUSING SUB-ASSY, GOVERNOR
mainS223702860i201107-202005
mainS223703040i201107-202005
mainS223703050i201107-202005
22313LEVER, INJECTION PUMP STOP
mainS223694850i201107-202005
mainS223695120i201107-202005
mainS223695130i201107-202005
22329BBOLT, DIAPHRAGM CONNECTING, NO.3
mainS228152890×2i201107-202005
mainS228152990×2i201107-202005
22365ARING, E(FOR INJECTION PUMP LEVER)
mainS228731390×6i201107-202005
22408ARM, STOPPER
mainS223483790i201107-202005
mainS223484820i201107-202005
HIGH ALTITUDE COMPENSATOR-WITH
22408DRING, O(FOR ARM SUB-ASSY)
mainS228471740i201107-202005
HIGH ALTITUDE COMPENSATOR-WITH
22408FARM SUB-ASSY, GOVERNOR
mainS223433210i201107-202005
mainS223434180i201107-202005
22408GARM SUB-ASSY, GOVERNOR
mainS223481551supersedes S223437710i201107-202005
HIGH ALTITUDE COMPENSATOR-WITH,NO.2
22409LEVER SUB-ASSY, SUPPROTING
mainS223094290i201107-202005
22410GOVERNOR ASSY, INJECTION PUMP MECHANICAL
mainS223107000i201107-202005
mainS223107250supersedes S223107230i201107-202005
HIGH ALTITUDE COMPENSATOR-WITH
mainS223107260supersedes S223107240i201107-202005
HIGH ALTITUDE COMPENSATOR-WITH
22412SPRING, MECHANICAL GOVERNOR
mainS223412160×2i201107-202005
22416WASHER, GOVERNOR LOCK
mainS228632450×2i201107-202005
NO.3
mainS228771880i201107-202005
NO.2
mainS228771990i201107-202005
NO.1
22418BUSHING, GOVERNOR BEARING
mainS223222490supersedes S223221180i201107-202005
HIGH ALTITUDE COMPENSATOR-WITH
22419LEVER, STOP
mainS223571091i201107-202005
22419BWASHER, PLATE(FOR STOPPER LEVER)
mainS228772190i201107-202005
T=0.1; T=0.1,HIGH ALTITUDE COMPENSATOR-WITH
mainS228772200supersedes S228855220i201107-202005
T=0.2; T=0.2,HIGH ALTITUDE COMPENSATOR-WITH
22421SPRING, IDLING
mainS224111660×2i201107-202005
NO.1
mainS224111670×2i201107-202005
NO.2
22421CWASHER, IDLING SPRING
mainS228631970×6i201107-202005
T=0.20,NO.4
mainS228631980×6i201107-202005
T=0.30,NO.4
mainS228631990×6i201107-202005
T=0.60,NO.4
mainS228632000×6i201107-202005
T=1.00,NO.4
mainS228632010×6i201107-202005
T=0.20,NO.3
mainS228632020×6i201107-202005
T=0.30,NO.3
mainS228632030×6i201107-202005
T=0.60,NO.3
mainS228632040×6i201107-202005
T=1.00,NO.3
mainS228632050×6i201107-202005
T=0.20,NO.2
mainS228632060×6i201107-202005
T=0.30,NO.2
mainS228632070×6i201107-202005
T=0.60,NO.2
mainS228632080×6i201107-202005
T=1.00,NO.2
mainS228632090×6i201107-202005
T=0.20,NO.1
mainS228632100×6i201107-202005
T=0.30,NO.1
mainS228632110×6i201107-202005
T=0.60,NO.1
mainS228632120×6i201107-202005
T=1.00,NO.1
mainS228771270×2i201107-202005
T=0.20,NO.2
mainS228771280×2i201107-202005
T=0.40,NO.2
mainS228771290×2i201107-202005
T=0.60,NO.2
mainS228771300×2i201107-202005
T=0.40,NO.1
mainS228771310×2i201107-202005
T=0.60,NO.1
mainS228771890×2i201107-202005
T=1.00,NO.2
mainS228771900×2i201107-202005
T=1.00,NO.1
mainS228772250×2i201107-202005
T=0.30,NO.1
mainS228772260×2i201107-202005
T=0.20,NO.1
22422ASHACKLE, GOVERNOR
mainS220451110i201107-202005
HIGH ALTITUDE COMPENSATOR-WITH
22432BSHIM
mainS228852450i201107-202005
T=1.60
mainS228852460i201107-202005
T=1.65
mainS228852470i201107-202005
T=1.70
mainS228852480i201107-202005
T=1.75
mainS228852490i201107-202005
T=1.80
mainS228852500i201107-202005
T=1.85
mainS228852510i201107-202005
T=1.90
mainS228852520i201107-202005
T=1.95
mainS228852530i201107-202005
T=2.00
mainS228852540i201107-202005
T=2.10
mainS228852550i201107-202005
T=2.20
mainS228852560i201107-202005
T=2.30
mainS228855950i201107-202005
T=2.05
mainS228855960i201107-202005
T=2.15
mainS228855970i201107-202005
T=2.25
22433ASCREW, ADAPTER(FOR SLIDING BLOCK)
mainS223851820i201107-202005
22433FADAPTER, GOVERNOR
mainS223851610i201107-202005
mainS223853020i201107-202005
22440FLYWEIGHT SUB-ASSY
mainS223041420i201107-202005
22440BFLYWEIGHT SUB-ASSY
mainS223041650i201107-202005
22440ESPRING SUB-ASSY, RETURN
mainS223413470×2i201107-202005
mainS223413560×2i201107-202005
22440FSPRING SUB-ASSY, RETURN
mainS223411710i201107-202005
22442AGASKET, GOVERNOR
mainS228472360i201107-202005
mainS228472400i201107-202005
22458APLATE, GOVERNOR COVER
mainS223711240i201107-202005
22460LEVER SUB-ASSY, SUPPORT
mainS223072760i201107-202005
mainS223072840i201107-202005
22460DWASHER, LOCK(FOR STEERING LEVER)
mainS228771400×2i201107-202005
T=0.50
mainS228771410×2i201107-202005
T=0.55
mainS228771420×2i201107-202005
T=0.60
mainS228771430×2i201107-202005
T=0.65
mainS228771440×2i201107-202005
T=0.70
mainS228771450×2i201107-202005
T=0.75
mainS228771460×2i201107-202005
T=0.80
22460EARM ASSY, GUIDE
mainS223071840i201107-202005
mainS223072730i201107-202005
22461PLUG, SCREW
mainS228451250×2i201107-202005
22464ABLOCK, SLIDING
mainS224341190i201107-202005
22465AKEY, WOODRUFF(FOR ADJUSTING LEVER)
mainS228911060i201107-202005
22465BSEAL, OIL(FOR ADJUSTING LEVER)
mainS228271530i201107-202005
22467NUT, ROUND
mainS223531150i201107-202005
mainS225351120i201107-202005
22468COVER, PLATE
mainS223861390i201107-202005
22468AO, RING
mainS228171440i201107-202005
NO.1
mainS228471540i201107-202005
NO.2
22470ALEVER ASSY, ADJUSTING
mainS224151760i201107-202005
22478ASHAFT, LEVER SUPPORTING
mainS223381090i201107-202005
NO.2
mainS223581410i201107-202005
NO.1
22480COVER SUB-ASSY, GOVERNOR
mainS223802490i201107-202005
mainS223802500i201107-202005
22481GASKET
mainS228472490i201107-202005
mainS228472510i201107-202005
22481ASEAT, SPRING, INNER
mainS223511640×2i201107-202005
22491LEVER KIT, CONTROL
mainS223502670i201107-202005
22491ALEVER KIT, CONTROL
mainS223192540i201107-202005
mainS223192590i201107-202005
22551SEAT, SPRING(FOR FLYWEIGHT)
mainS223511370i201107-202005
22552CWASHER(FOR CAM PLATE BUSH)
mainS228771360i201107-202005
T=0.2
mainS228771370i201107-202005
T=0.3
mainS228771380i201107-202005
T=0.4
mainS228771390i201107-202005
T=0.5
22552DPLATE, CAM
mainS223691051i201107-202005
mainS223695110i201107-202005
22557APIN, CONNECTING(FOR FULL STOP CAM)
mainS224551230i201107-202005
22557BWASHER, PLATE(FOR CONNECTING PIN)
mainS228851440i201107-202005
T=0.10
mainS228851450i201107-202005
T=0.20
mainS228851930i201107-202005
T=0.05
22558SHAFT, SLIDING BLOCK
mainS223381070i201107-202005
22579BACTUATOR, IDLE UP DIAPHRAGM
mainS224701270i201107-202005
22702LEVER ASSY, FLOATING
mainS220411140i201107-202005
mainS220411440i201107-202005
22702ASPRING, FLOATING ARM
mainS223411680i201107-202005
22702BWASHER, PLATE(FOR FLOATING LEVER)
mainS228851030i201107-202005
T=0.20; T=0.20,HIGH ALTITUDE COMPENSATOR-WITH,NO.1
mainS228851270i201107-202005
T=0.30; T=0.30,HIGH ALTITUDE COMPENSATOR-WITH,NO.1
mainS228851280i201107-202005
T=0.40; T=0.40,HIGH ALTITUDE COMPENSATOR-WITH,NO.1
mainS228851920i201107-202005
T=0.10; T=0.10,HIGH ALTITUDE COMPENSATOR-WITH,NO.1
mainS228851930i201107-202005
T=0.05; T=0.05,HIGH ALTITUDE COMPENSATOR-WITH
22702ELEVER SUB-ASSY, CONTROL
mainS220421190i201107-202005
22702FSPRING, RETURN(FOR CONTROL LEVER)
mainS223411690i201107-202005
mainS223411700i201107-202005
NO.1
mainS223412180i201107-202005
NO.2
22723DAMPER, FLYWEIGHT HOLDER
mainS223851900×6i201107-202005
mainS223852070×6i201107-202005
22726ASPRING, SPEED CONTROL
mainS223212050×2i201107-202005
22728AGUIDE, SPRING
mainS223851471×2i201107-202005
mainS223853110×2i201107-202005
22730BUSHING ASSY, CAMSHAFT
mainS223211751i201107-202005
NO.1
mainS223222380i201107-202005
22736BOLT, BELLCRANK
mainS228153600i201107-202005
22738BUSHING, GUIDE(FOR FLYWEIGHT)
mainS223221760i201107-202005
mainS223222230i201107-202005
22761SLIDER(FOR SPEED CONTROL)
mainS223491131i201107-202005
22761ASHAFT, SLIDING WEIGHT
mainS223181130i201107-202005
L=31.9
mainS223181140i201107-202005
L=31.7
mainS223181150i201107-202005
L=31.5
mainS223181160i201107-202005
L=31.3
mainS223181170i201107-202005
L=31.1
mainS223181180i201107-202005
L=30.9
mainS223181190i201107-202005
L=30.7
mainS223181380i201107-202005
L=32.0
mainS223181390i201107-202005
L=32.1
22776BNUT, CAP(FOR SCREW STOPPER)
mainS223421820i201107-202005
22776CSCREW, STOPPER
mainS223952140i201107-202005
22795PLUG, SCREW
mainS228451261i201107-202005
mainS228451490i201107-202005
22795AWASHER, SCREW PLUG
mainS228472370i201107-202005
mainS228472620i201107-202005
23205BRACKET SUB-ASSY
mainS223438080i201107-202005
mainS223501811i201107-202005
23503ALEVER SUB-ASSY
mainS223502340×2i201107-202005
23503BLEVER SUB-ASSY
mainS223483780i201107-202005
mainS223484810i201107-202005
S223221701
mainS2232-21701
S223431650
mainS2234-31650
S223433140
mainS2234-33140
S223433180
mainS2234-33180
S223435390
mainS2234-35390
S223851800
mainS2238-51800
S223961020
mainS2239-61020
S224111710
mainS2241-11710
S224111790
mainS2241-11790
S224111800
mainS2241-11800
S224351210
mainS2243-51210
S224561200
mainS2245-61200
S224561260
mainS2245-61260
S228151290
mainS2281-51290
S228151380
mainS2281-51380
S228151860
mainS2281-51860
S228151920
mainS2281-51920
S228152410
mainS2281-52410
S228152820
mainS2281-52820
S228152900
mainS2281-52900
S228153410
mainS2281-53410
S228153490
mainS2281-53490
S228211530
mainS2282-11530
S228251480
mainS2282-51480
S228251510
mainS2282-51510
S228251540
mainS2282-51540
S228251890
mainS2282-51890
S228451480
mainS2284-51480
S228471730
mainS2284-71730
S228472690
mainS2284-72690
S228651320
mainS2286-51320
S228771320
mainS2287-71320
S282191110
mainS2821-91110
S799042030CLIP SUB-ASSY
mainS7990-42030
SL12000604
mainSL120-00604

111 parts on this diagram · 2 diagrams in section
