INJECTION PUMP BODY

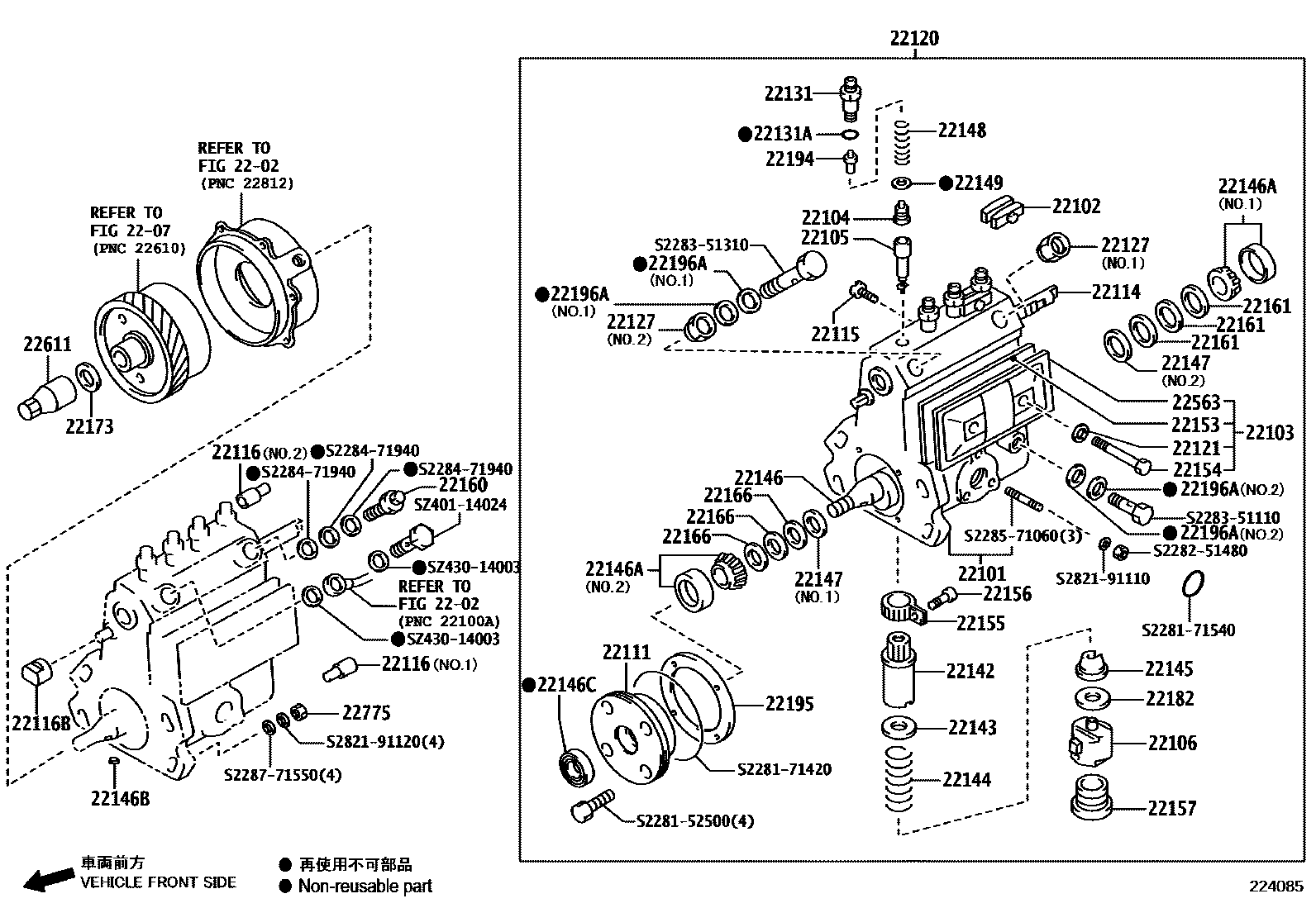

Parts diagram
2202INJECTION PUMP ASSEMBLY
→ Go to FIG 22-02
2207AUTOMATIC TIMER
→ Go to FIG 22-07
22101HOUSING SUB-ASSY, INJECTION PUMP
mainS221012710i201107-202005
mainS221014410i201107-202005
22102PLATE SET, VALVE HOLDER LOCK
mainS221091170×2i201107-202005
22103COVER SUB-ASSY, INJECTION PUMP
mainS221701640i201107-202005
22104VALVE SUB-ASSY, INJECTION PUMP DELIVERY
mainS221031460×4i201107-202005
mainS221032700×4i201107-202005
22105ELEMENT SUB-ASSY, INJECTION PUMP
mainS221041730×4i201107-202005
mainS221044550×4i201107-202005
22106TAPPET SUB-ASSY, INJECTION PUMP
mainS221051020×4i201107-202005
mainS221051480×4i201107-202005
22111COVER, INJECTION PUMP CAMSHAFT BEARING
mainS221111600i201107-202005
mainS221111670i201107-202005
22114RACK, CONTROL
mainS221131500i201107-202005
mainS221131870i201107-202005
22115SCREW, RACK GUIDE
mainS228114850i201107-202005
22116COVER, CONTROL RACK
mainS223231210i201107-202005
NO.1
mainS223231430i201107-202005
NO.2
mainS223231550i201107-202005
NO.3
22116BCOVER, CONTROL RACK
mainS221141250i201107-202005
mainS221141420i201107-202005
22120BODY ASSY,INJECTION
mainS221103680i201107-202005
mainS221103860i201107-202005
22121PACKING, AIR BLEEDER SCREW
mainS228471890×2i201107-202005
22127UNION, INJECTION PUMP FUEL INLET
mainS221311050i201107-202005
NO.1
mainS221311580×2i201107-202005
mainS221311640i201107-202005
NO.2
22131HOLDER, DELIVERY VALVE
mainS221161100×4i201107-202005
mainS221161230×4i201107-202005
22131ARING, O(FOR DELIVERY VALVE HOLDER)
mainS228171260×4i201107-202005
22142SLEEVE, PLUNGER CONTROL
mainS221181310×4i201107-202005
mainS221181320×4i201107-202005
22143SEAT, SPRING UPPER
mainS221191090×4i201107-202005
mainS221191190×4i201107-202005
22144SPRING, PUMP PLUNGER
mainS221211110×4i201107-202005
mainS221211170×4i201107-202005
22145SEAT, SPRING, LOWER
mainS221221120×4i201107-202005
mainS221221280×4i201107-202005
22146CAMSHAFT, INJECTION PUMP
mainS221231530i201107-202005
mainS221232430i201107-202005
22146ABEARING(FOR INJECTION CAMSHAFT)
mainS228371050i201107-202005
mainS228371100i201107-202005
NO.2
mainS228371230i201107-202005
NO.1
22146BKEY(FOR INJECTION PUMP CAMSHAFT)
mainS228911070i201107-202005
mainS228951080i201107-202005
22146CSEAL, OIL, INJECTION PUMP CAMSHAFT
mainS228271040i201107-202005
mainS228271750i201107-202005
22147RING, CAMSHAFT ADJUST
mainS221241090i201107-202005
NO.1
mainS221241100i201107-202005
NO.2
mainS221241160i201107-202005
NO.2
22148SPRING, DELIVERY VALVE
mainS221251070×4i201107-202005
mainS221251430×4i201107-202005
22149GASKET, DELIVERY VALVE
mainS228471720×4i201107-202005
22153GASKET, INJECTION PUMP COVER PLATE
mainS228471990i201107-202005
22154SCREW(FOR INJECTION PUMP COVER SETTING)
mainS228151550×2i201107-202005
22155PINION, PLUNGER CONTROL
mainS221281020×4i201107-202005
22156SCREW, PLUNGER CONTROL PINION CLAMP
mainS228651280×4i201107-202005
22157PLUG, INJECTION PUMP FELT PLATE
mainS228451420×4i201107-202005
22160SCREW SUB-ASSY, OVERFLOW
mainS221071500i201107-202005
mainS221071750i201107-202005
22161PLATE, CAMSHAFT SHIM
mainS221291190×3i201107-202005
T=1.00
mainS221291200×3i201107-202005
T=1.50
mainS228854900×3i201107-202005
T=0.10
mainS228854910×3i201107-202005
T=0.12
mainS228854920×3i201107-202005
T=0.14
mainS228854930×3i201107-202005
T=0.16
mainS228854940×3i201107-202005
T=0.18
mainS228854950×3i201107-202005
T=0.50
mainS228855830×3i201107-202005
T=0.30
mainS228855840×3i201107-202005
T=2.00
mainS228856660×3i201107-202005
T=0.03
22166PLATE, CAMSHAFT SHIM
mainS221291170×3i201107-202005
T=1.00
mainS221291180×3i201107-202005
T=1.50
mainS221291210×3i201107-202005
T=0.10,NO.2
mainS221291220×3i201107-202005
T=0.16,NO.2
mainS221291230×3i201107-202005
T=0.30,NO.2
mainS221291240×3i201107-202005
T=0.50,NO.2
mainS228851550×3i201107-202005
T=0.10,NO.1
mainS228851560×3i201107-202005
T=0.16,NO.1
mainS228851570×3i201107-202005
T=0.30,NO.1
mainS228851580×3i201107-202005
T=0.50,NO.1
mainS228855680×3i201107-202005
T=0.12,NO.1
mainS228855690×3i201107-202005
T=0.14,NO.1
mainS228855700×3i201107-202005
T=0.18,NO.1
mainS228856670×3i201107-202005
T=0.03,NO.1
mainS228856690×3i201107-202005
T=0.12,NO.2
mainS228856700×3i201107-202005
T=0.14,NO.2
mainS228856710×3i201107-202005
T=0.18,NO.2
mainS228856730×3i201107-202005
T=0.03,NO.2
22173WASHER, SPRING
mainS228671320i201107-202005
22182PLATE, TAPPET ADJUSTING SHIM
mainS228851130×4i201107-202005
T=0.60
mainS228851140×4i201107-202005
T=0.70
mainS228851150×4i201107-202005
T=0.80
mainS228851160×4i201107-202005
T=0.90
mainS228851170×4i201107-202005
T=1.00
mainS228851180×4i201107-202005
T=1.10
mainS228851190×4i201107-202005
T=1.20
mainS228851230×4i201107-202005
T=0.10
mainS228851240×4i201107-202005
T=0.20
mainS228851250×4i201107-202005
T=0.15
mainS228851330×4i201107-202005
T=1.30
mainS228851340×4i201107-202005
T=1.40
mainS228851350×4i201107-202005
T=0.30
mainS228851360×4i201107-202005
T=0.40
mainS228851370×4i201107-202005
T=0.50
mainS228852270×4i201107-202005
T=0.13
22194STOPPER, DELIVERY VALVE
mainS221171040×4i201107-202005
mainS221171310×4i201107-202005
22195GASKET, BEARING COVER
mainS228433040i201107-202005
mainS228472750i201107-202005
22196SCREW, FUEL INLET FOLLOW
mainS228351310i201107-202005
22196AWASHER(FOR INLET FOLLOW SCREW)
mainS228471900×2i201107-202005
NO.2
mainS228771100×2i201107-202005
NO.1
22563PLATE, INJECTION PUMP COVER
mainS221271210i201107-202005
22611NUT, TIMER ROUND
mainS225111060i201107-202005
mainS228252240i201107-202005
22775NUT, LOCK(FOR INJECTION PUMP)
mainS228251490×4i201107-202005
mainS228252070×4i201107-202005
S228152500
mainS2281-52500
S228171420
mainS2281-71420
S228171540
mainS2281-71540
S228251480
mainS2282-51480
S228351110
mainS2283-51110
S228351310
mainS2283-51310
S228471940
mainS2284-71940
S228571060
mainS2285-71060
S228771550
mainS2287-71550
S282191110
mainS2821-91110
S282191120
mainS2821-91120
SZ40114024
mainSZ401-14024
SZ43014003WASHER, SOFT, NO.1
mainSZ430-14003

59 parts on this diagram · 2 diagrams in section
