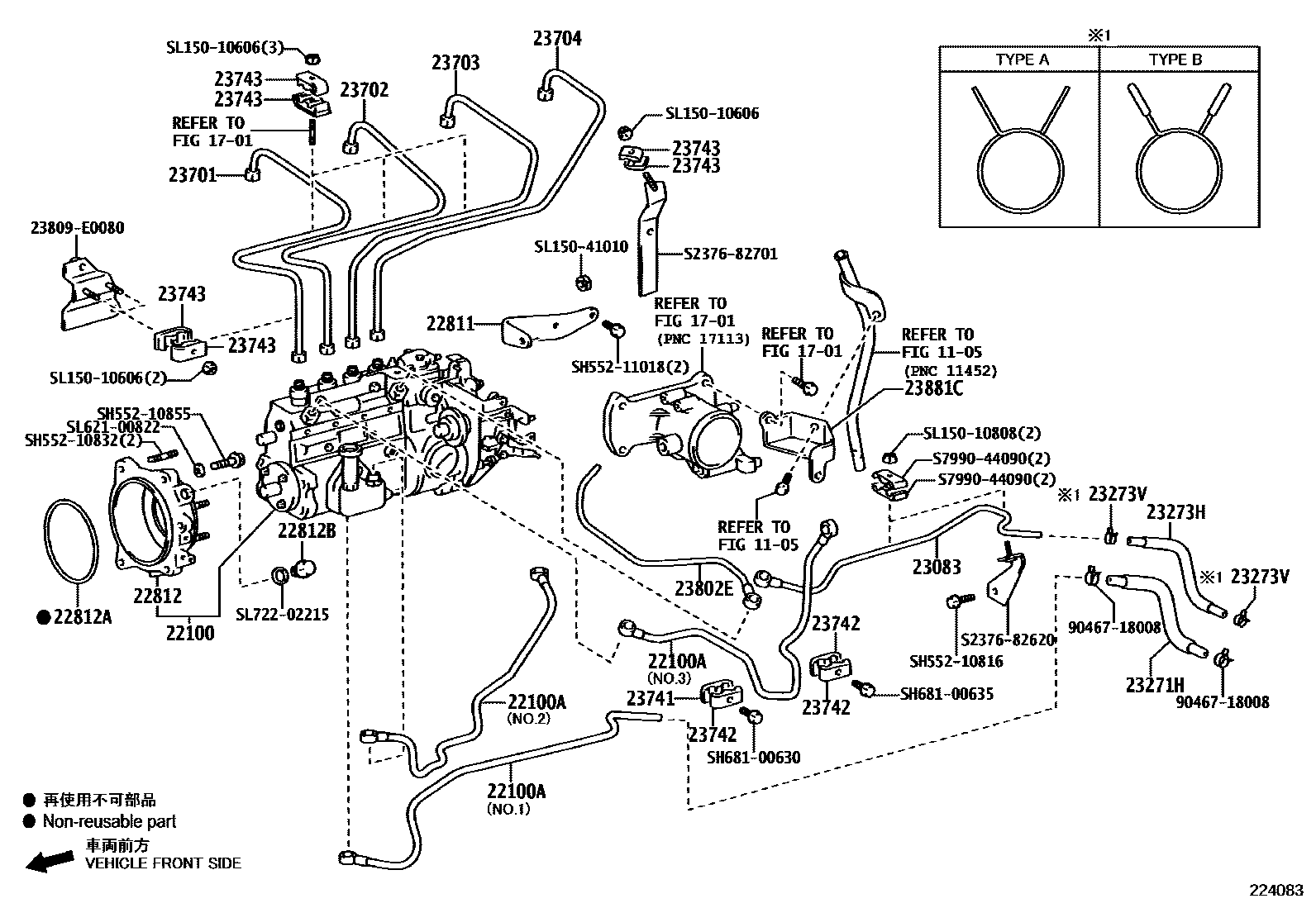

INJECTION PUMP ASSEMBLY

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

1105

1701

22100PUMP ASSY, INJECTION OR SUPPLY

main22010-E0051iW04D..WU600..ST..GEN..IV3201107-202005

main22010-E0061iW04D..WU600..DCRTJ201107-202005

main22010-E0510iW04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH201107-202005

main22100-78310iN04C..XZU600..GEN201911

main22100-E0560iN04C..XZU600,650..GCC201605-202005

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main23816-E0060iW04D..WU600..DCRTJ;W04D..WU600..ST..GEN..IV3201107-202005

mainS237815910iW04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH201107-202005

NO.1

mainS237822660iW04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH201107-202005

NO.2

mainS237832350iW04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH201107-202005

NO.3

22811STAY, INJECTION PUMP, NO.1

main22811-78141iN04C..XZU600..GEN201911

main82702-E0P50iN04C..XZU600,650..GCC201605-202005

mainS223432060iW04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH201107-202005

22812RETAINER, INJECTION PUMP

main22650-E0040iW04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH201107-202005

22812ARING, O

mainSN73210793iN04C..XZU600,650..GCC201605-202005

mainSZ30101015iW04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH201107-202005

mainSZ30101052iW04D..WU600..DCRTJ;W04D..WU600..ST..GEN..IV3201107-202005

22812BPLUG, W/HEAD STRAIGHT SCREW(FOR INJECTION PUMP RETAINER)

mainSZ34122008iW04D..WU600,650201107-202005

23083PIPE SUB-ASSY, NOZZLE LEAKAGE, NO.3

main23816-78121iN04C..XZU600..GEN201911

main23816-E0012iN04C..XZU600,650..GCC201605-202005

mainS237662940iW04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH201107-202005

23271HHOSE, FUEL, NO.1

main23271-78630iW04D..WU600,650201107-202005

main23271-E0540iN04C..XZU600..GEN201911

23273HHOSE, FUEL, NO.2

main23273-78530iN04C..XZU600,650..GCC201605-202005

main23273-78610iW04D..WU600,650201107-202005

main23273-78721iN04C..XZU600..GEN201911

23273VCLIP(FOR FUEL HOSE NO.2)

main96132-51300iW04D..WU600,650201905-202005

TYPE A:REFER ILLUST.

main96132-51300iW04D..WU600,650201107-201905

main96132-51300iW04D..WU600,650201905-202005

TYPE A

main96133-41301iW04D..WU600,650201905-202005

TYPE B

main96133-41301iW04D..WU600,650201905-202005

TYPE B:REFER ILLUST.

main96133-41301iN04C..XZU600..GEN201911

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-78160iN04C..XZU600..GEN201911

main23701-E0012iN04C..XZU600,650..GCC201605-202005

main23701-E0020iW04D..WU600..DCRTJ;W04D..WU600..ST..GEN..IV3201107-202005

mainS237111950iW04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH201107-202005

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-78160iN04C..XZU600..GEN201911

main23702-E0012iN04C..XZU600,650..GCC201605-202005

main23702-E0020iW04D..WU600..DCRTJ;W04D..WU600..ST..GEN..IV3201107-202005

mainS237121940iW04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH201107-202005

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-78151iN04C..XZU600..GEN201911

main23703-E0012iN04C..XZU600,650..GCC201605-202005

main23703-E0020iW04D..WU600..DCRTJ;W04D..WU600..ST..GEN..IV3201107-202005

mainS237131900iW04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH201107-202005

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-78151iN04C..XZU600..GEN201911

main23704-E0012iN04C..XZU600,650..GCC201605-202005

main23704-E0020iW04D..WU600..DCRTJ;W04D..WU600..ST..GEN..IV3201107-202005

mainS237141920iW04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH201107-202005

23741CLAMP, INJECTION PIPE, NO.1

mainS799041240iN04C..XZU600..GEN201911

mainS799041900iW04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH201107-202005

23742CLAMP, INJECTION PIPE, NO.2

mainS799041021iN04C..XZU600..GEN201911

NO.1:REFER ILLUST.

mainS799041250iN04C..XZU600,650..GCC201605-202005

sub23742-66020

mainS799041940iW04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH201107-202005

mainS799042150iN04C..XZU600..GEN201911

NO.2:REFER ILLUST.

mainS799042680iW04D..WU600..DCRTJ;W04D..WU600..ST..GEN..IV3201107-202005

mainS799043390iN04C..XZU600..GEN201911

NO.3:REFER ILLUST.

23743CLAMP, INJECTION PIPE, NO.3

mainS799041250iW04D..WU600..DCRTJ;W04D..WU600..ST..GEN..IV3201107-202005

sub23742-66020

mainS799041930iW04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH201107-202005

mainS799044090iN04C..XZU600,650..GCC201605-202005

23802EPIPE SUB-ASSY, FUEL

main23811-E0043iN04C..XZU600,650..GCC201605-202005

mainS237662910iW04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH201107-202005

23881CBRACKET, FUEL HOSE

main23881-E0030iW04D..WU600..DCRTJ;W04D..WU600..ST..GEN..IV3201107-202005

NO.1

main23881-E0050iW04D..WU600..DCRTJ;W04D..WU600..ST..GEN..IV3201107-202005

NO.2

main23881-E0090iW04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH201107-202005

23809E0080SUPPORT SUB-ASSY, FUEL PIPE

main23809-E0080

9046718008

main90467-18008

S237682620

mainS2376-82620

S237682701

mainS2376-82701

S799044090CLIP SUB-ASSY

mainS7990-44090

SH55210816

mainSH552-10816

SH55210832

mainSH552-10832

SH55210855

mainSH552-10855

SH55211018

mainSH552-11018

SH68100630

mainSH681-00630

SH68100635

mainSH681-00635

SL15010606

mainSL150-10606

SL15010808

mainSL150-10808

SL15041010

mainSL150-41010

SL62100822

mainSL621-00822

SL72202215

mainSL722-02215

37 parts on this diagram · 6 diagrams in section
