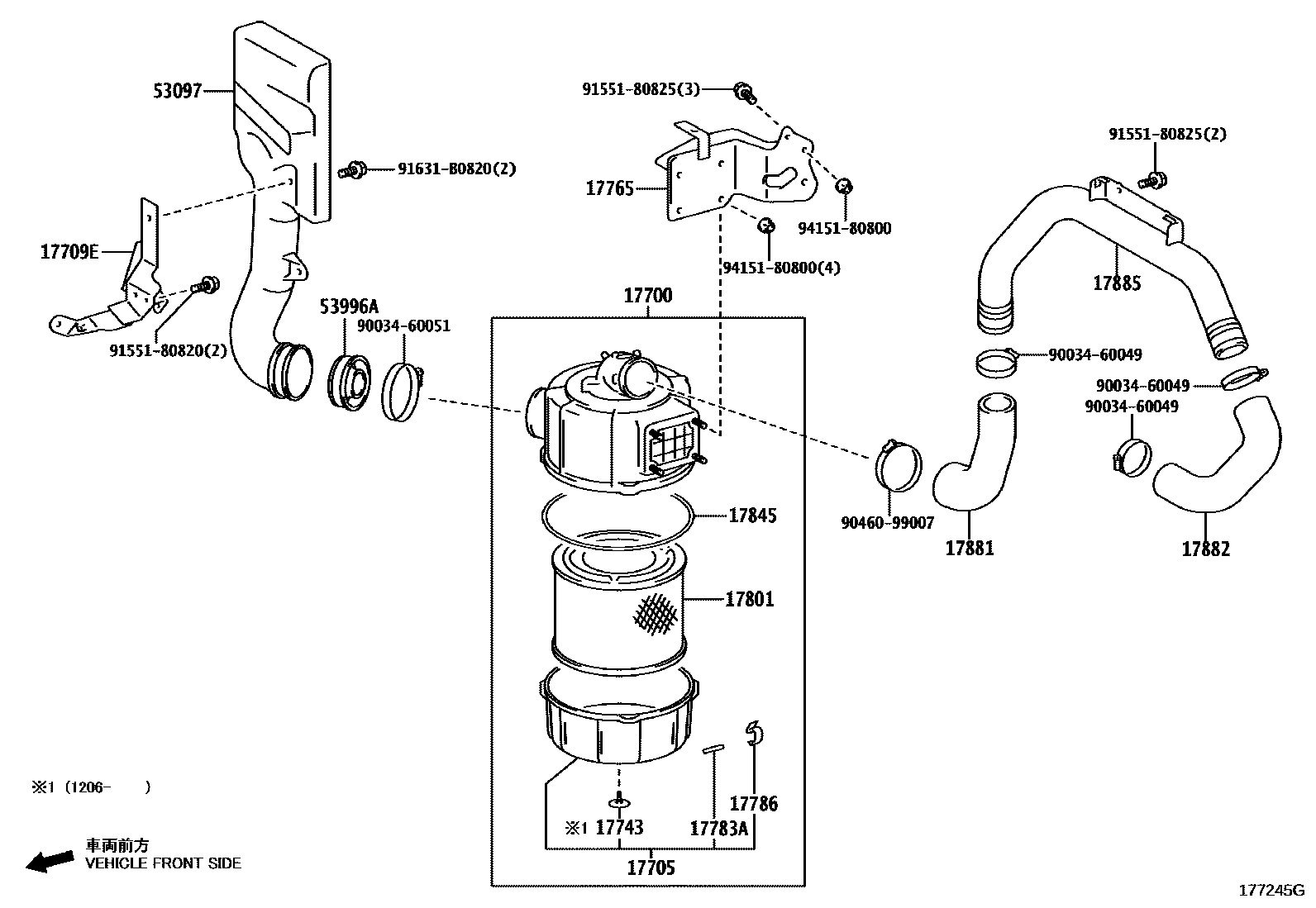

AIR CLEANER

0001 1 0002 1 0003 1 0004 1

17700CLEANER ASSY, AIR

main17700-78430iW04D..WU600..DCRTJ;W04D..WU600..ST..GEN..IV3201107-201207

main17700-78431iN04C..XZU600..GEN201208-202005

main17700-78470iW04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH201107-201205

main17700-78471iW04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH201206-202005

17705CAP SUB-ASSY, AIR CLEANER

main17705-78090iW04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH201107-201207

main17705-78091iN04C..XZU600..GEN201206-202005

17709EBRACKET, AIR CLEANER INLET, NO.2

main17707-78020iN04C..XZU600,650..GCC201605-202005

AIR CLEANER INLET-REAR SETTING TYPE(FULL STACK),NO.1

main17707-78020iW04D..WU600,650201107-202005

main17707-78050iN04C..XZU600..GEN201911

17743VALVE, DUST RELIEF

main17743-78040iW04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH201206-202005

17765STAY, AIR CLEANER, NO.1

main17765-78070iW04D..WU600,650201107-202005

main17765-78200iN04C..XZU600..GEN201911

17783ARETAINER, AIR CLEANER INLET

main17783-78010iW04D..WU600..DCRTJ;W04D..WU600..ST..GEN..IV3201107-202005

17786CLAMP, AIR CLEANER

main17786-78010iW04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH201107-201208

main17786-78011iW04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH201206-202005

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-78110iN04C..XZU600..GEN201107-202005

17845GASKET, AIR CLEANER CAP

main17845-78030iW04D..WU600,650201107-201207

main17845-78031iW04D..WU600,650201208-202005

17881HOSE, AIR CLEANER, NO.1

main17881-78140iW04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH201107-202005

17882HOSE, AIR CLEANER, NO.2

main17882-78181iW04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH201107-202005

17885PIPE, AIR CLEANER

main17885-78111iW04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH201107-202005

53097INLET SUB-ASSY

main53097-37390iXZU600..GEN201107-202005

53996APACKING, AIR CLEANER INLET PIPE

main53996-37060iWU600..DCRTJ;WU600..ST..GEN..IV3201107-202005

main53996-37070iWU600..ST..CBU;WU600..ST..GCC..IV3;WU600,650..WT..DCRTH201107-202005

9003460049

main90034-60049

9003460051

main90034-60051

9046099007

main90460-99007

9155180820

main91551-80820

9155180825

main91551-80825

91631B0820

main91631-B0820

9415180800

main94151-80800

21 parts on this diagram · 4 diagrams in section
