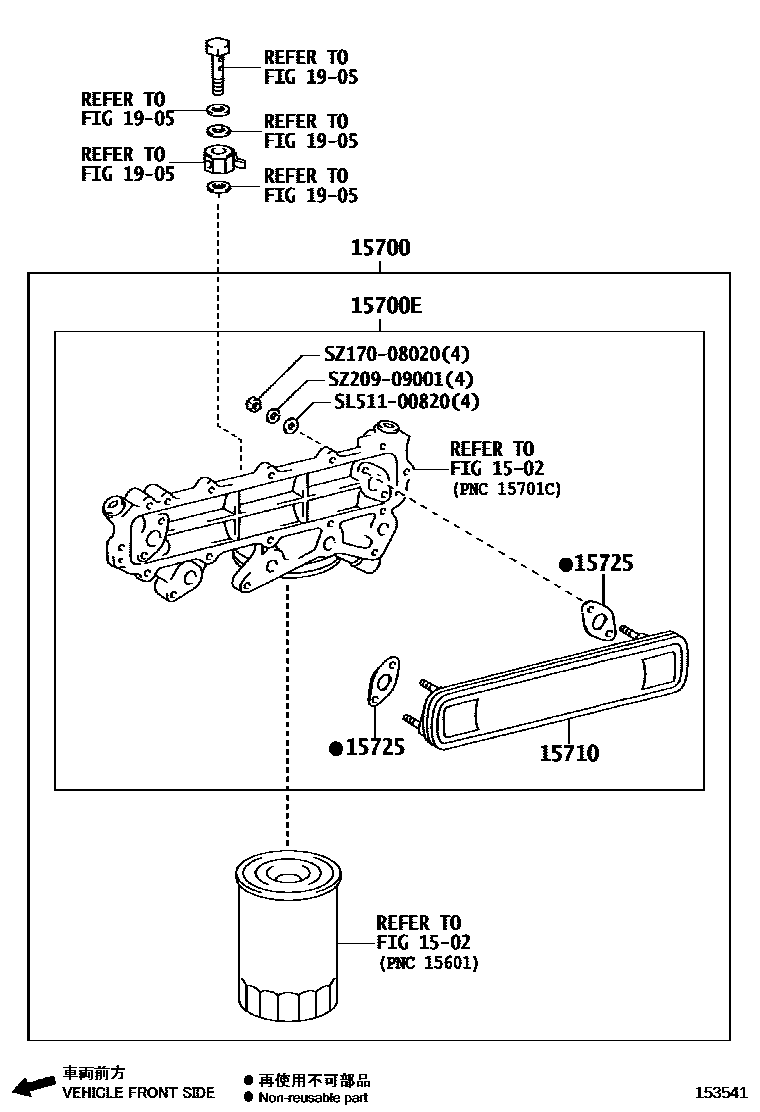

ENGINE OIL COOLER

0001 1 0002 1 0003 1

1502

15700COOLER ASSY, OIL W/BRACKET

main15700-78140iN04C..XZU600..GEN201911-202204

sub15700-78141

main15700-78141iN04C..XZU600202205

main15700-E0013iN04C..XZU600,650201107-201810

sub15700-E0014

main15700-E0014iN04C..XZU600,650..GCC201811-202005

main15700-E0502iW04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH201107-202005

15700ECOOLER SUB-ASSY, OIL, W/O OIL FILTER

mainS1570EV020iW04D..WU600..DCRTJ;W04D..WU600..ST..IV3201605-201811

subS1570-EV021

mainS1570EV021iN04C..XZU600,650..GCC201811-202005

mainS1570EV050iW04D..WU600..ST..CBU;W04D..WU600,650..WT..DCRTH201605-202005

15710COOLER ASSY, OIL

main16491-78140iN04C..XZU600..GEN201911

main16491-EV040iN04C..XZU600,650..GCC201811-202005

mainS157122250iN04C..XZU600,650201107-201811

sub16491-EV040

mainS157122330iW04D..WU600..ST..CBU;W04D..WU600..ST..GCC..IV3;W04D..WU600,650..WT..DCRTH201107-202005

15725GASKET, OIL COOLER COVER

main15785-EV010iN04C..XZU600,650..GCC201212-202005

mainS157171270iW04D..WU600,650201107-201212

sub15785-EV010

1905

SL51100820

mainSL511-00820

SZ17008020

mainSZ170-08020

SZ20909001

mainSZ209-09001

9 parts on this diagram · 3 diagrams in section
