OIL FILTER

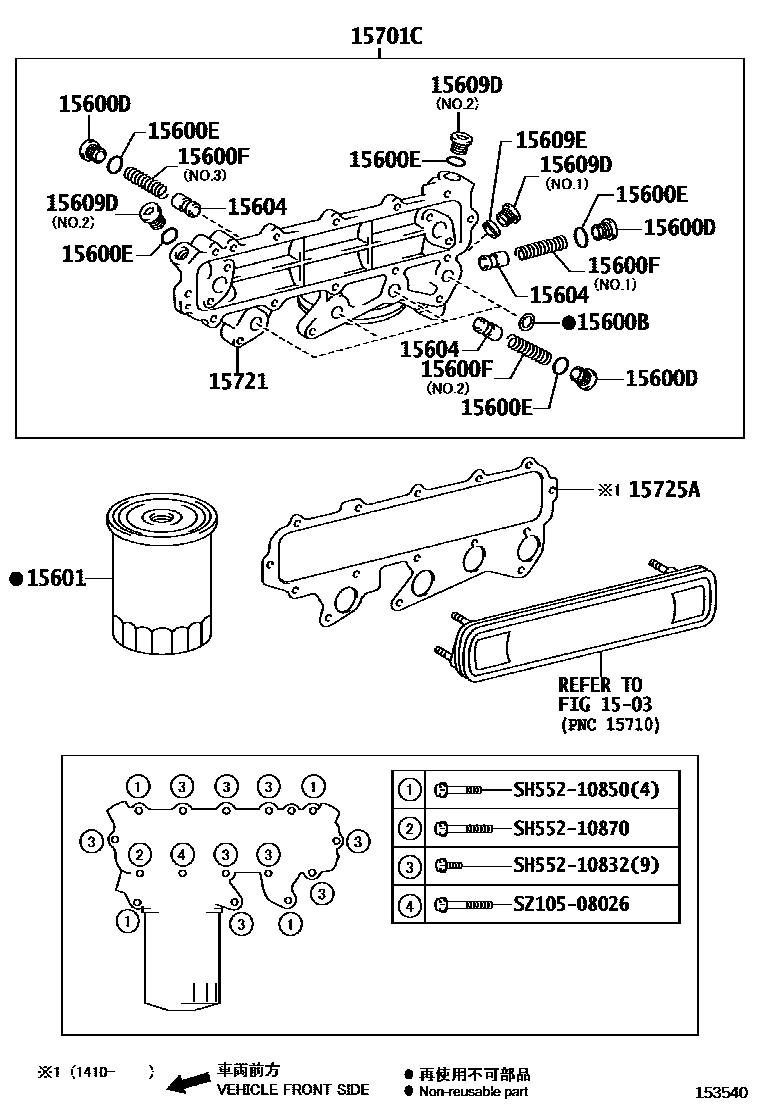

Parts diagram
1503
15600BRING, O, NO.1(FOR OIL FILTER)
main16442-78140i201911
mainSZ30119015i201107-201410
mainSZ30119018i201410-202005
15600DPLUG(FOR OIL FILTER)
main15529-78140i201911
NO.2:REFER ILLUST.
main15529-EV010i201911
NO.3:REFER ILLUST.
main21677-78140i201911
NO.4:REFER ILLUST.
main21784-78140i201911
NO.1:REFER ILLUST.
mainS157161110i201107-202005
15600EWASHER(FOR OIL FILTER)
mainSZ30118015i201107-202005
15600FSPRING, COMPRESSION(FOR OIL FILTER)
main15661-78140i201911
NO.1:REFER ILLUST.
mainS156611250i201107-202005
NO.3
mainS156611250i201911
NO.2:REFER ILLUST.
mainS156611370i201107-202005
NO.1
mainS156611530i201107-202005
NO.2
mainS156611560i201107-202005
NO.2
mainS156611560i201911
NO.3:REFER ILLUST.
15601FILTER SUB-ASSY, OIL
main15601-78140i201911
main15613-E0080i201107-202005
15604VALVE SUB-ASSY, OIL SAFETY
mainS157141120i201107-202005
15609DPLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)
mainS157161070i201107-202005
NO.1
mainS157261110i201107-202005
NO.2
15609EGASKET, W/HEAD STRAIGHT SCREW PLUG
mainS900756166i201107-202005
15701CCOVER SUB-ASSY, OIL COOLER
mainS157201432i201107-202005
mainS157201581i201107-201510
subS1572-01651
mainS157201651i201510-202005
15721COVER, OIL COOLER
mainS157012282i201107-202005
mainS157012401i201107-201510
subS1570-12521
mainS157012521i201510-202005
15725AGASKET, OIL COOLER COVER
main15725-E0020i201410-202005
SH55210832
mainSH552-10832
SH55210850
mainSH552-10850
SH55210870
mainSH552-10870
SZ10508026
mainSZ105-08026

16 parts on this diagram · 3 diagrams in section
