CAMSHAFT & VALVE

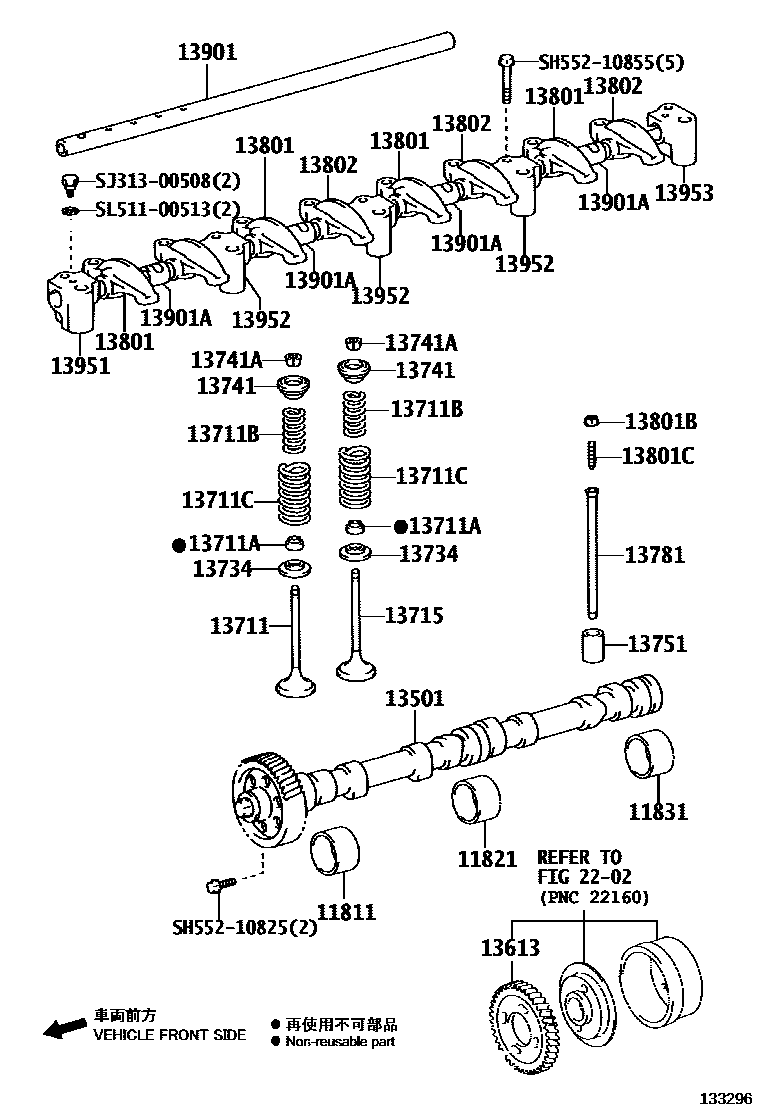

Parts diagram

11811BEARING, CAMSHAFT, NO.1

main11811-E0030i201107-202005

11821BEARING, CAMSHAFT, NO.2

main11821-E0020i201107-202005

11831BEARING, CAMSHAFT, NO.3

main11831-E0020i201107-202005

13501CAMSHAFT SUB-ASSY

main13501-E0030i201107-201108

main13501-E0410i201107-201108

main13501-E0470i201608-202005

main13501-E0480i201108-202005

main13501-E0520i201108-201607

13613GEAR, INJECTION PUMP DRIVE

main13613-78152i201911

main13613-E0150i201107-202005

main13613-E0170i201605-201901

main13613-E0220i201901-201908

main13613-E0222i201908-202005

mainS136132180i201107-202005

13711VALVE, INTAKE

mainS137111443i201107-202005

mainS137111800i201605-202005

13711ASEAL OR RING, O(FOR VALVE STEM OIL)

mainS137191510i201107-202005

13711BSPRING, COMPRESSION(FOR INNER)

mainS137311690i201605-202005

mainS137321570i201107-202005

13711CSPRING, COMPRESSION(FOR OUTER)

mainS137311670i201107-202005

13715VALVE, EXHAUST

mainS137151251i201107-202005

mainS137151870i201605-202005

13734SEAT, VALVE SPRING

main13734-E0050i201912-202005

mainS137341140i201107-201911

mainS137351460i201605-202005

13741RETAINER, VALVE SPRING

mainS137351440i201107-202005

13741ALOCK, VALVE SPRING RETAINER

mainSZ91026010i201107-202005

mainSZ91026013i201605-202005

13751LIFTER, VALVE

main13751-E0040i201107-202005

13781ROD, VALVE PUSH

mainS137811350i201107-202005

mainS137811500i201605-202005

13801ARM SUB-ASSY, VALVE ROCKER, NO.1

main13811-78030i201905-202005

main13811-E0090i201107-202005

main13811-E0190i201605-201905

13801BNUT, HEXAGON(FOR VALVE ADJUSTING)

mainS137881030i201107-202005

13801CSCREW, VALVE ADJUSTING

mainS137871161i201107-202005

13802ARM SUB-ASSY, VALVE ROCKER, NO.2

main13811-78060i201905-202005

main13811-E0100i201107-202005

main13811-E0200i201605-201905

13901SHAFT SUB-ASSY, VALVE ROCKER, NO.1

main13901-78030i201905-202005

main13901-E0030i201605-201905

mainS139011190i201107-202005

13901ABUSH(FOR VALVE ROCKER SHAFT)

mainSZ91029043i201107-202005

13951SUPPORT, VALVE ROCKER, NO.1

main13951-78070i201905-202005

NO.2:REFER ILLUST.

main13951-78100i201905-202005

NO.1:REFER ILLUST.

main13951-78110i201905-202005

NO.3:REFER ILLUST.

main13951-E0040i201605-201905

NO.2

main13951-E0050i201605-201905

NO.1

main13951-E0060i201107-202005

13952SUPPORT, VALVE ROCKER, NO.2

main13951-E0070i201107-202005

13953SUPPORT, VALVE ROCKER, NO.3

main13951-E0080i201107-202005

2202INJECTION PUMP ASSEMBLY

→ Go to FIG 22-02

SH55210825

mainSH552-10825

SH55210855

mainSH552-10855

SJ31300508

mainSJ313-00508

SL51100513

mainSL511-00513

29 parts on this diagram · 3 diagrams in section
