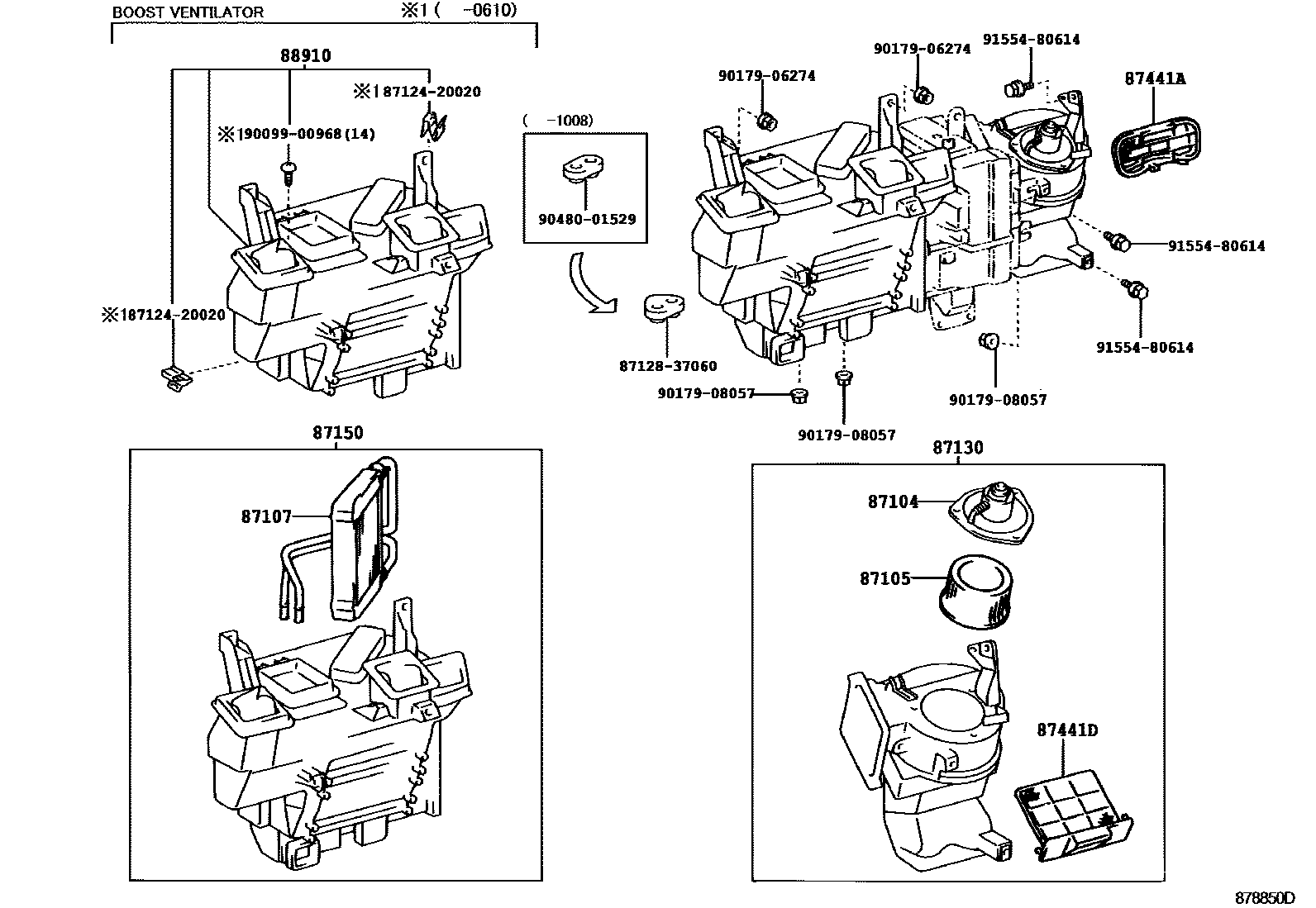

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1 0002 1 0003 1

87104MOTOR SUB-ASSY, HEATER BLOWER

main87104-37140iBU300,340200212-200312

main87104-37150iXZU307,327,337,347200610-200901

87105FAN SUB-ASSY, HEATER BLOWER

main87105-37010iXZU307,327,337,347200610-200901

main87105-37030iWU300,340..SA200610-200812

87107UNIT SUB-ASSY, HEATER RADIATOR

main87107-25050iWU300,340..SA200610-200812

main87107-25060iXZU307,327,337,347200803-200901

main87107-37040iBU303,343,WU300,340..RHD..(GEN,SA)200212-200609

main87107-37061iWU30#,34#,XZU307,327,337,347..LHD200610-200802

87130BLOWER ASSY, HEATER, FRONT

main87130-37100iWU340..RHD..CBU200610-201007

main87130-37101iWU340..RHD201008-201106

main87130-37110iBU303,343,WU300,340,XZU300,320,330,340..LHD200212-200610

87150RADIATOR ASSY, HEATER

main87150-25010iBU30#,34#,WU300,340..RHD..(ARL,GEN,SA)200212-200305

main87150-37190iBU300,340200305-200312

main87150-37221iBU303,343,WU300,340,XZU300,320,330,340..LHD200212-200603

main87150-37222iWU30#,34#,XZU307,327,337,347..LHD200610-200802

main87150-37223iXZU307,327,337,347200803-200901

main87150-37300iWU300,340..SA200610-200812

87441AFILTER, HEATER AIR

main87441-37010iWU300,340..SA200212-200802

main87441-37020iWU30#,34#..LHD200610-201106

main87441-F1010iXZU349..5F;XZU309,359..IV8202203-202310

87441DFILTER, HEATER AIR, NO.2

main87441-37031iWU30#,34#..GCC,GEN200610-201106

88910VENTILATOR ASSY, BOOST

main88910-37050iBU303,343..RHD..GEN200212-200610

main88910-37060iBU303,343,WU300,340..LHD200212-200603

main88910-37061iBU303,343,WU300,340..LHD200604-200610

8712420020CLAMP, HEATER

main87124-20020

8712837060GROMMET, HEATER

main87128-37060

9009900968

main90099-00968

9017906274

main90179-06274

9017908057

main90179-08057

9048001529

main90480-01529

9155480614

main91554-80614

15 parts on this diagram · 3 diagrams in section
