Toyota 752220 — FRONT TURN SIGNAL LAMP

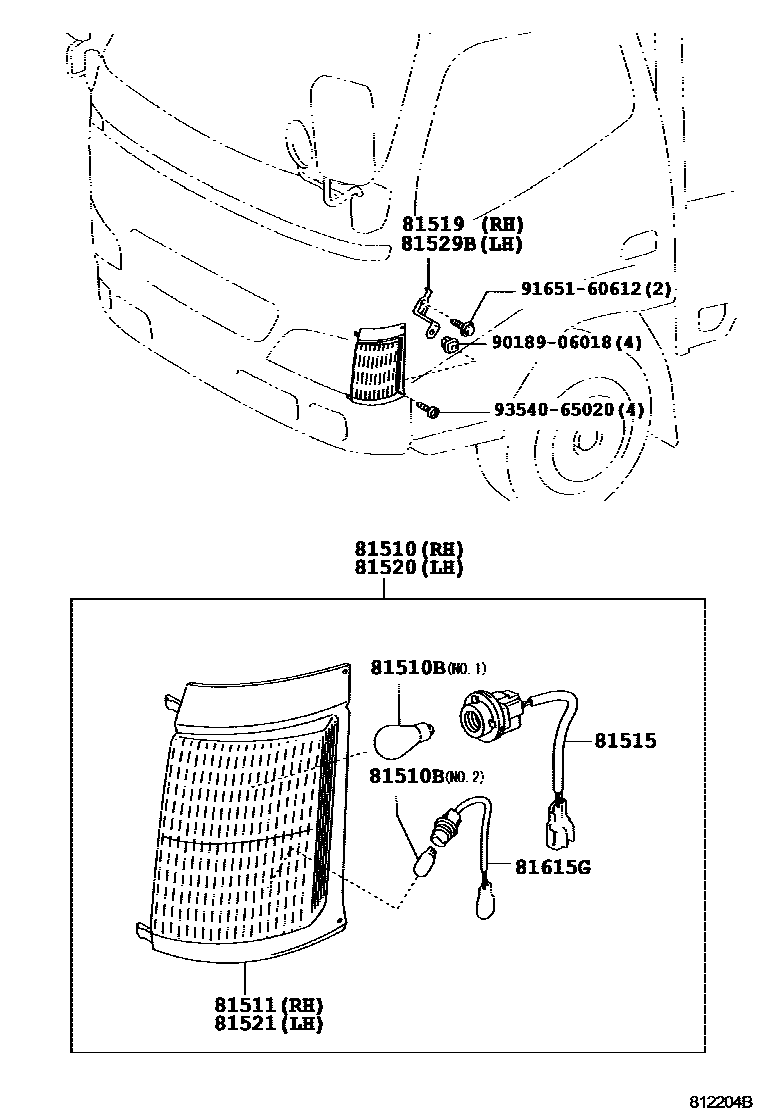

Parts diagram

81510LAMP ASSY, FRONT TURN SIGNAL, RH

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

81511LENS, FRONT TURN SIGNAL LAMP, RH

81515WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY

81519BRACKET, FRONT TURN SIGNAL LAMP, RH

81520LAMP ASSY, FRONT TURN SIGNAL, LH

81521LENS, FRONT TURN SIGNAL LAMP, LH

81529BBRACKET, FRONT TURN SIGNAL LAMP, LH

81615GSOCKET & WIRE, CLEARANCE LAMP

9018906018

9165160612

9354065020

12 parts on this diagram · 2 diagrams in section

FRONT TURN SIGNAL LAMP for Toyota 752220

This section contains 15 genuine Toyota parts for the FRONT TURN SIGNAL LAMP system of the Toyota 752220. Key components include: LAMP ASSY, FRONT TURN SIGNAL, RH, BULB (FOR FRONT TURN SIGNAL LAMP), LENS, FRONT TURN SIGNAL LAMP, RH, WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY, BRACKET, FRONT TURN SIGNAL LAMP, RH.
