LOCK CYLINDER SET

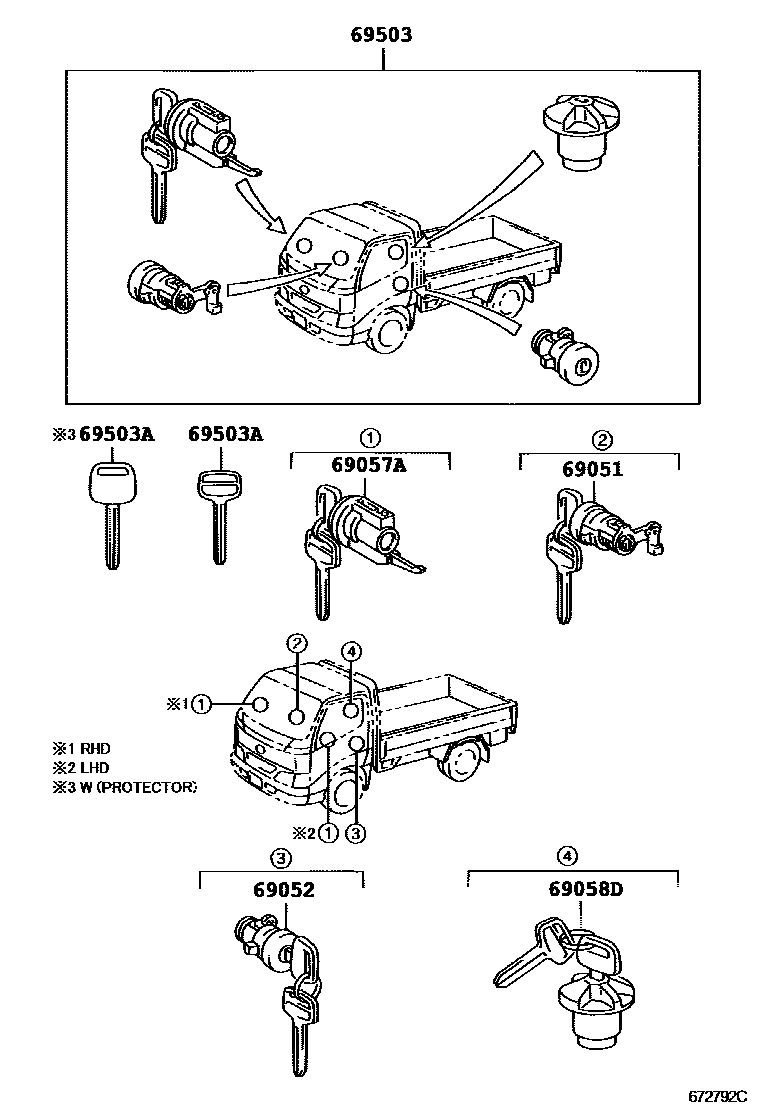

Parts diagram

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-37060i200209-200610

main69051-37070i200212-200610

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-37100i202203

main69052-37110i200610-200901

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-37050i200610-201005

main69057-37080i200212-200610

main69057-37140i200610-200812

W(POWER STEERING = RBS)

main69057-37180i200209-200612

69058DCYLINDER & KEY SET, FUEL TANK FILLER

main69058-37010×2i200212-200409

W(SUB FUEL TANK)

main69058-37050i200212-200610

main69058-37051i200209-200612

main69058-37190i202203-202310

69503CYLINDER SET, LOCK

main69005-25110i200209-200612

main69005-25130i200209-200612

main69005-37010i200212-200802

CKD PACKAGE & W(KEY(FUEL TANK CAP) & POWER STEERING = RBS)

main69005-37011i201607

main69005-37060i200212-200610

main69005-37070i200212-200409

W(KEY(FUEL TANK CAP))

main69005-37110i200212-200610

CKD PACKAGE & W(POWER STEERING = RBS)

main69005-37280i200212-200409

CKD PACKAGE & W(KEY(FUEL TANK CAP) & POWER STEERING = RBS & SUB FUEL TANK)

main69005-37690i200610-201106

CKD PACKAGE & W(KEY(FUEL TANK CAP))

main69005-37700i200212-200610

CKD PACKAGE

main69005-37710i200212-200610

W(KEY(FUEL TANK CAP))

main69005-37720i200610-201106

main69005-37751i200212-200409

W(KEY(FUEL TANK CAP) & SUB FUEL TANK)

main69005-37N30i202203-202310

69503AKEY, BLANK

main90999-00185i200610-200812

MASTER KEY,W(*68)

main90999-00186i202203

MASTER KEY

6 parts on this diagram · 1 diagram in section
