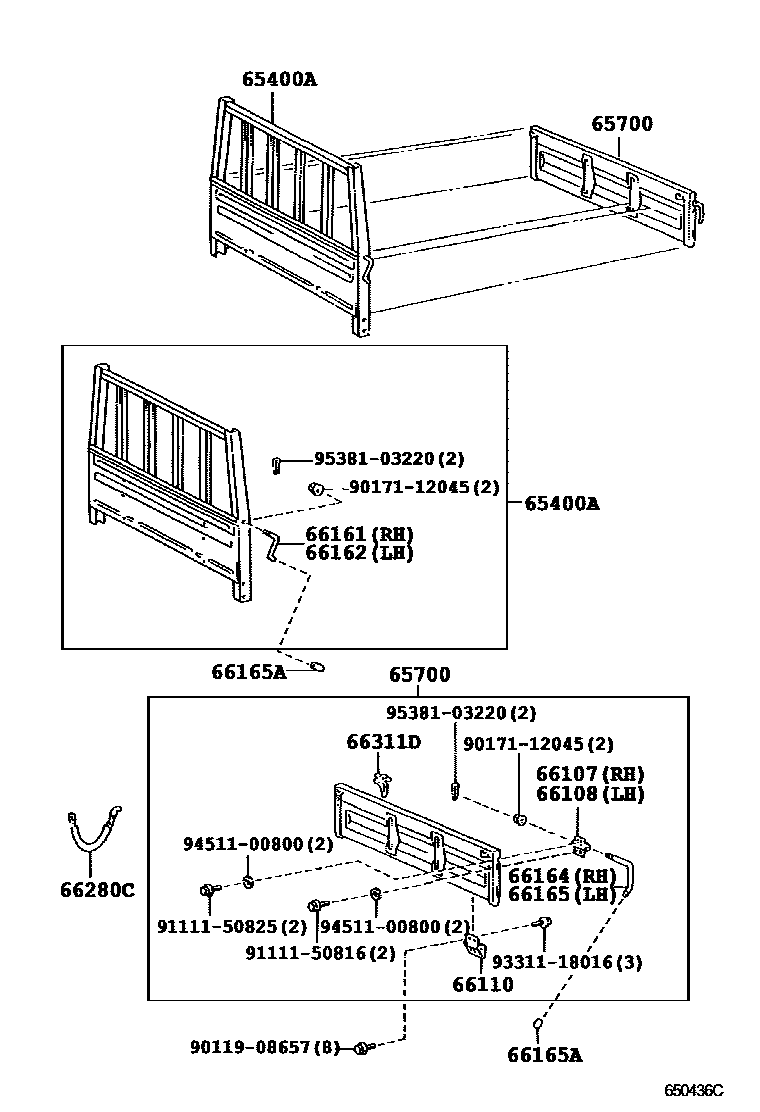

REAR BODY GUARD FRAME & TAIL GATE

0001 1 0002 1

65400AGUARD ASSY, REAR BODY

main65400-37G00iWU340..CBU200508-200610

main65400-3V560iBU343..CBU200212-200610

main65400-3V610iWU30#..ST..CBU200610-201106

main65400-3V620iBU303,WU300..WT..CBU200212-200610

65700GATE ASSY, REAR BODY TAIL

main65700-37021iBU303,WU300..WT..CBU200212-200610

main65700-37030iWU30#..ST..CBU200610-201106

main65700-37050iWU34#..CBU200610-201106

66107BRACKET SUB-ASSY, TAIL GATE, RH

main66107-95404iBU303,WU300..CBU200212-200610

66108BRACKET SUB-ASSY, TAIL GATE, LH

main66107-95404iBU303,WU300..CBU200212-200610

66110HINGE ASSY, TAIL GATE

main66110-37010×4iBU343,WU340..CBU200212-200610

sub66110-37012

main66110-37011×4iWU34#..CBU201101-201106

sub66110-37012

main66110-95407×4iBU303,WU300..CBU200212-200610

66161HANDLE, SIDE GATE LATCH, RH

main66163-37010iWU30#..CBU200610-201106

66162HANDLE, SIDE GATE LATCH, LH

main66164-37010iWU30#..CBU200610-201106

66164HANDLE, TAIL GATE LATCH, RH

main66163-95401iWU30#..CBU200610-201106

main66264-37010iBU343,WU340..CBU200212-200610

66165HANDLE, TAIL GATE LATCH, LH

main66164-95401iBU303,WU300..CBU200212-200610

main66265-37010iBU343,WU340..CBU200212-200610

66165ACAP, GATE LATCH HANDLE

main66165-87402×4iWU30#..CBU200610-201106

main66165-92701×2iBU343,WU340..CBU200212-200610

66280CCHAIN ASSY, TAIL GATE

main66280-25020×2iWU30#..CBU200610-201106

main66280-37020×2iBU343,WU340..CBU200212-200610

66311DHOOK, ROPE

main66311-37010×4iBU303,WU300..CBU200212-200610

main66312-37030×2iBU343,WU340..CBU200212-200610

9011908657

main90119-08657

9017112045

main90171-12045

9111150816

main91111-50816

9111150825

main91111-50825

9331118016

main93311-18016

9451100800

main94511-00800

9538103220

main95381-03220

19 parts on this diagram · 2 diagrams in section
