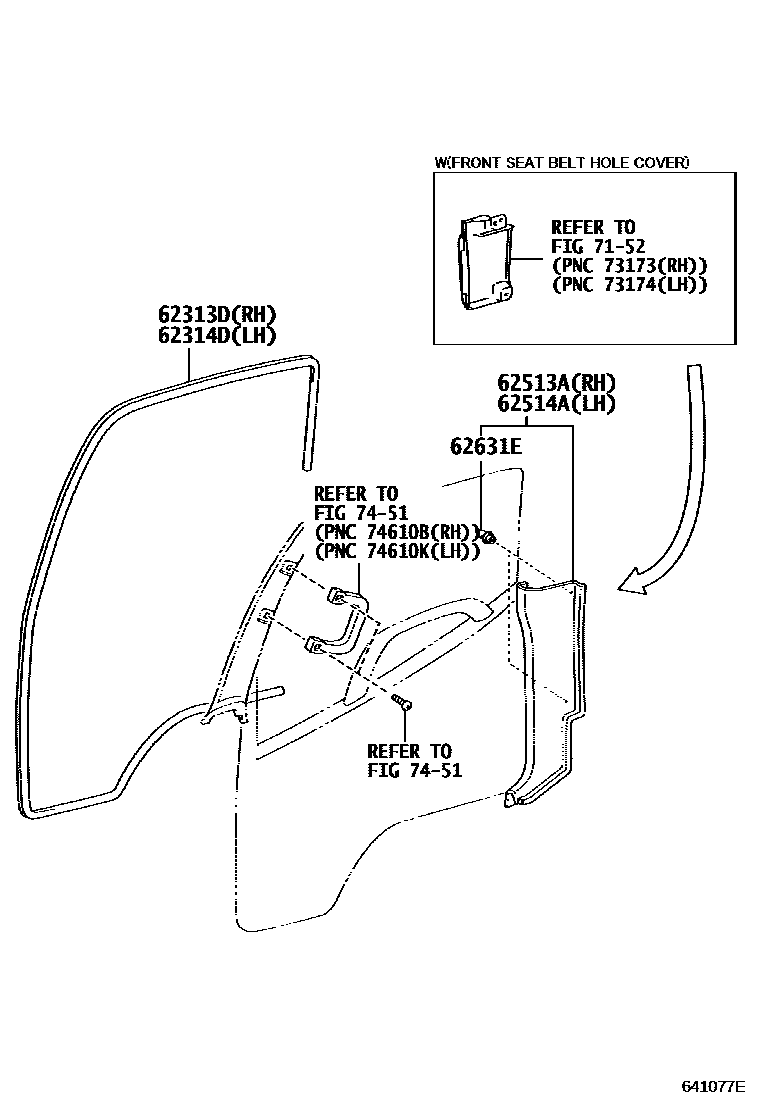

INSIDE TRIM BOARD

0001 1 0002 1 0003 1W(NON-RETROCTOR TYPE SEAT BEL

62313DTRIM, FRONT DOOR OPENING, RH

main62313-0W010-B0iBU303,343,WU300,340,XZU342..IDN200209-200612

MD.CHARCOAL,TRIM1#

main62313-0W030-B0iWU302,342..DCRTP,DCRTR200912-201612

MD.CHARCOAL,TRIM1#

main62313-0W031iXZU349..6F;XZU309..IV3202203

main62313-37040-B0iBU30#,34#,WU300,340,XZU300,320,330,340..ARL,GCC,GEN,SA,TAIW200212-200312

MD.CHARCOAL,TRIM1#

main62313-37041-B0iBU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,SA,TAIW200312-200608

MD.CHARCOAL,TRIM1#

main62313-37060-B0iWU30#,34#..GCC,GEN200610-201106

MD.CHARCOAL,TRIM1#

sub62313-37080

62314DTRIM, FRONT DOOR OPENING, LH

main62313-0W010-B0iBU303,343,WU300,340,XZU342..IDN200209-200612

MD.CHARCOAL,TRIM1#

main62313-0W030-B0iWU302,342..DCRTP,DCRTR200912-201612

MD.CHARCOAL,TRIM1#

main62313-0W031iXZU349..6F;XZU309..IV3202203

main62313-37040-B0iBU30#,34#,WU300,340,XZU300,320,330,340..ARL,GCC,GEN,SA,TAIW200212-200312

MD.CHARCOAL,TRIM1#

main62313-37041-B0iBU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,SA,TAIW200312-200608

MD.CHARCOAL,TRIM1#

main62314-37020-B0iXZU307,327,337,347200610-200901

MD.CHARCOAL,TRIM1#

sub62314-37040

62513APANEL, QUARTER TRIM, LOWER RH

main62513-0W040-B0iBU303,343,WU300,340,XZU342..IDN200302-200612

MD.CHARCOAL,TRIM1#

main62513-37010-B0iWU300,340..SA200610-200812

MD.CHARCOAL,TRIM1#

main62513-37011-B0iWU30#,34#..GCC,GEN200911-201106

MD.CHARCOAL,TRIM1#

sub62530-37020

62514APANEL, QUARTER TRIM, LOWER LH

main62514-0W050-B0iBU303,343,WU300,340,XZU342..IDN200302-200612

MD.CHARCOAL,TRIM1#

main62514-37010-B0iBU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW200209-200610

MD.CHARCOAL,TRIM1#

main62514-37011-B0iWU30#,34#..GCC,GEN200911-201106

MD.CHARCOAL,TRIM1#

sub62540-37020

62631ERETAINER, QUATER TRIM

main67771-0B030×4iWU302,342..IDN200612-200811

main67771-12050×4iBU30#,34#,WU300,340,XZU300,320,330,340..ARL,GCC,GEN,SA,TAIW200209-200312

main90467-10161×4iWU30#,34#..GCC,GEN200610-201106

main90467-T0021×4iWU302,342..(DCRTH,DCRTJ)..IDN200812-201005

7152

7451

7 parts on this diagram · 3 diagrams in section
