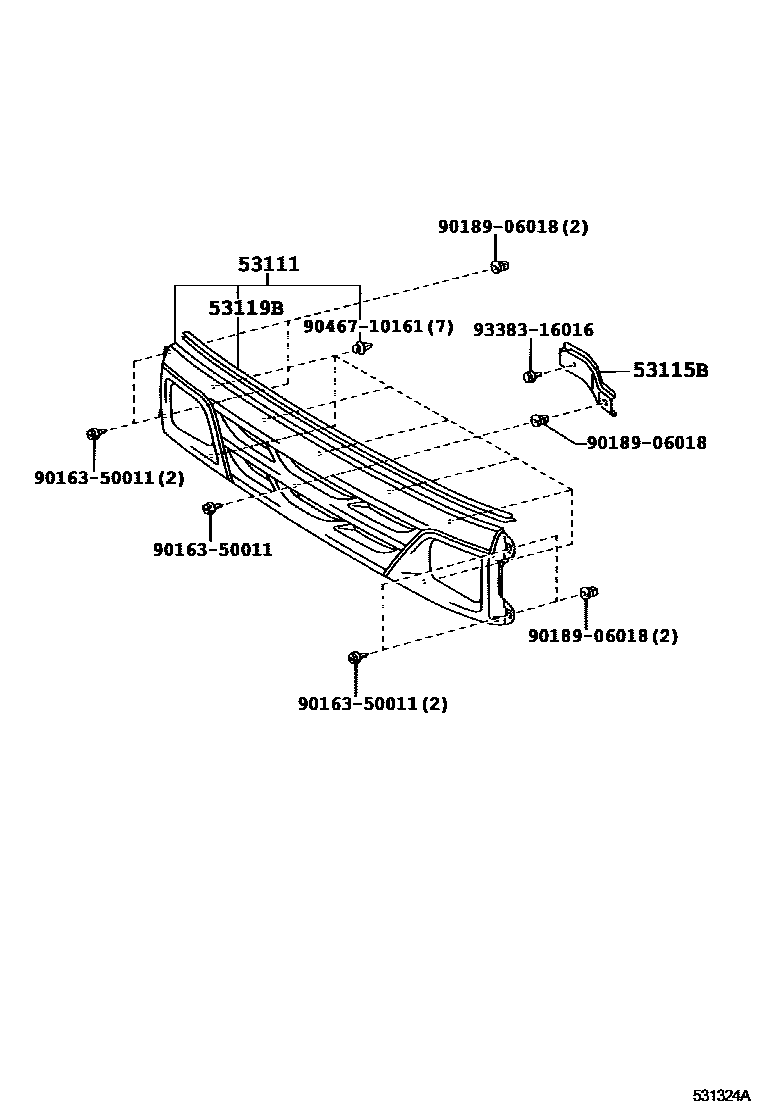

RADIATOR GRILLE

0001 1 0002 1 0004 1 0006 1 0007 1 0008 1

53111GRILLE, RADIATOR

main53100-0W010iBU303,343,WU300,340,XZU342..IDN200209-200612

NO PAINT REQ.

main53111-0W040iWU302,342,352..DCRTP,DCRTR200912

NO PAINT REQ.

main53111-0W060iWU302,342..(DCRTH,DCRTJ)..IDN200612-201005

NO PAINT REQ.

main53111-37440iWU300,340..SA200304-200802

NO PAINT REQ.

main53111-37450-A0iXZU305,345200212-200610

PAINTED,WHITE,058

main53111-37700iWU30#,34#..GCC,GEN200610-201106

NO PAINT REQ.

main53111-F1011iXZU349..6F;XZU309..IV3202203

NO PAINT REQ.

53115BBRACKET, RADIATOR GRILLE

main53115-0W010iBU303,343,WU300,340,XZU342..IDN200209-200612

main53115-37050iWU300,340..SA200212-200802

53119BPROTECTOR, RADIATOR GRILLE

main53119-0W010iBU303,343,WU300,340,XZU342..IDN200209-200612

main53119-0W060iWU302,342,352..DCRTP,DCRTR200912

main53119-37030iWU300,340..SA200212-200802

main53119-37100-C0iWU30#,34#..GCC,GEN200610-201106

BLACK,058 ,199 ,766 ,8P0

main53119-F1010iXZU349..6F;XZU309..IV3202203

9016350011

main90163-50011

9018906018

main90189-06018

9046710161

main90467-10161

9338316016

main93383-16016

7 parts on this diagram · 6 diagrams in section
