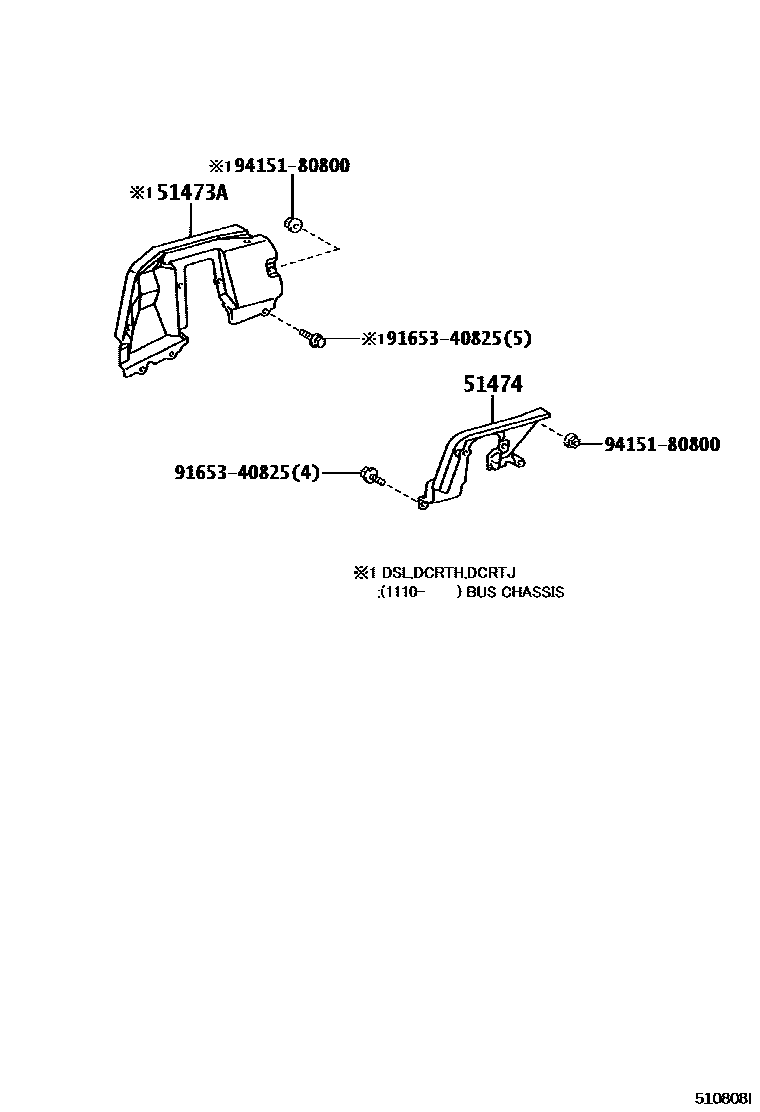

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0012 1 0013 1

51473ACOVER SUB-ASSY, ENGINE SIDE, RH

main51473-0W010iBU303,343,WU300,340,XZU342..IDN200209-200612

main51473-37120iBU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,SA,TAIW200212-200603

main51473-37121iWU300,340..SA200610-200812

main51473-37180iXZU305,345200312-200610

main51473-37310iXZU309,349,359..BUSC202203-202310

51474COVER SUB-ASSY, ENGINE SIDE, LH

main51474-0W010iWU302,342,352..DCRTP,DCRTR200912

main51474-37120iXZU305,345200312-200610

main51474-37130iBU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,SA,TAIW200212-200603

main51474-37131iWU300,340..SA200610-200812

9165340825

main91653-40825

9415180800

main94151-80800

4 parts on this diagram · 11 diagrams in section
