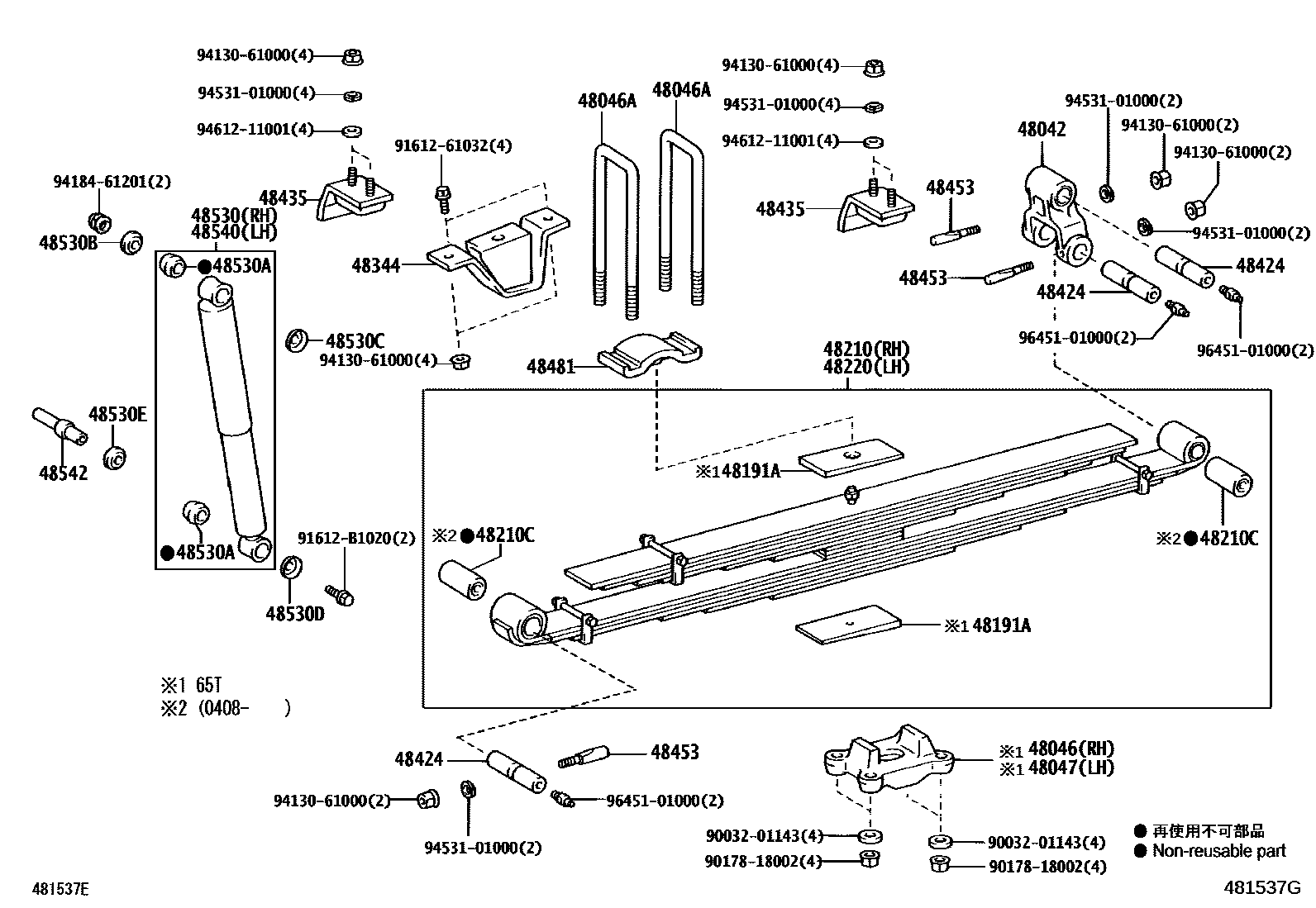

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1 0005 1 0007 1 0008 1 0009 1 0010 1 0012 1 0015 1 0017 1 0018 1 0019 1MAIN 2+HELPER 2-LEAF 0020 1MAIN 4+HELPER 3-LEAF 0021 1MAIN 4+HELPER 3-LEAF 0022 1MAIN 4+HELPER 3-LEAF 0024 1MAIN 5+HELPER 4-LEAF 0026 1MAIN 5+HELPER 6-LEAF 0027 16-LEAF 0029 1MAIN 6+HELPER 5-LEAF 0032 1MAIN 6+HELPER 6-LEAF 0034 1MAIN 6+HELPER 6-LEAF 0036 1MAIN 6+HELPER 6-LEAF 0037 1MAIN 7+HELPER 8-LEAF 0040 1MAIN 7+HELPER 9-LEAF 0041 1MAIN 7+HELPER 7-LEAF 0042 1MAIN 8+HELPER 9-LEAF 0044 1MAIN 4+HELPER 3-LEAF 0045 1MAIN 4+HELPER 3-LEAF

48042SHACKLE SUB-ASSY, REAR SPRING, NO.2

main48042-0W010iXZU349,359..5F..WT..(IV1,IV8)200912-202310

main48042-0W030iWU342..75T..DCRTP200912

main48042-25030iBU343,WU340,XZU342..IDN200209-202310

main48042-36021iXZU309,349..ST..IV8200209-202310

main48042-37020iBU303,343,WU300,340,XZU30#,320,330,345..(48T,55T,65T)..(ARL,GCC,GEN,TAIW)200212-201106

main48042-37041iXZU337,347..80T200212-200901

48046SEAT SUB-ASSY, SPRING U BOLT, RH

main42152-0W010iBU343,WU340,XZU342..65T..IDN200310-202310

main42152-36030iBU343,WU340,XZU342..65T..IDN200209-200310

main48046-25060iWU302..DCRTH..T3200209-202310

main48046-37110iBU303,WU300..ST..TS200212-201106

main48046-37140iXZU327200212-200901

main48473-37170iWU300,340..55T..(GCC,GEN)200212-201106

main48473-37180iBU343..65T..GEN;XZU30#,330,340,345200212-200610

HEAVY DUTY SUSPENSION

main48473-37180iWU340..65T..GEN;WU302,342..DCRTJ..GEN200212-201106

48046ABOLT, U(FOR REAR SPRING)

main90080-11534iWU302..DCRTP200209-202310

L=350

main90080-11535iWU342..65T..(DCRTH,DCRTJ)..IDN200209-201005

L=370

main90117-16018iWU300,340..SA200212-201106

L=300

main90117-16022iXZU305,345200212-200610

L=280

main90117-16040iXZU327,337..65T200212-201106

L=320

main90117-16057iXZU330,340..80T200212-201106

L=345

main90117-16142iWU30#..ST..TS200212-201106

L=255

main90117-18010iXZU349..6F200209-202310

L=370

main90117-T0004iXZU349,359..5F..WT..(IV1,IV8)200912-202310

L=400

main90117-T0005iWU342..75T..DCRTP200912

L=390

main90117-T0007iWU302,342..ST..T3201706-202310

L=370

48047SEAT SUB-ASSY, SPRING U BOLT, LH

main42152-0W010iBU343,WU340,XZU342..65T..IDN200310-202310

main42152-36030iBU343,WU340,XZU342..65T..IDN200209-200310

main48046-37110iBU303,WU300..ST..TS200212-201106

main48047-25060iXZU309..IV3200209-202310

main48047-37140iXZU320200212-200901

main48473-37170iWU300,340..SA200212-201106

main48473-37180iBU300,340200212-201106

main48473-37180iBU343..65T..GEN;XZU30#,330,340,345200212-200610

HEAVY DUTY SUSPENSION

48191AWEDGE, CASTER(FOR REAR LEAF SPRING)

main48192-37020iXZU327200212-200901

UPPER

main48192-37030iBU300,340200212-201106

main48192-37040iXZU320200212-200901

LOWER

main48192-37070iXZU337,347..80T200209-202310

main48192-37110iWU302,342..ST..DCRTP200209-202310

main48192-37160iXZU309,349..ST..IV8..T3201805-202310

48210SPRING ASSY, REAR RH

main48210-0W010iWU340,XZU342..75T200209-202310

MAIN 7+HELPER 8-LEAF

main48210-0W021iBU343,WU340,XZU342..65T..IDN200209-200612

MAIN 6+HELPER 6-LEAF

main48210-0W033iBU303,WU300..T3200209-200612

MAIN 4+HELPER 3-LEAF

main48210-0W110iWU342..65T..(DCRTH,DCRTJ)..IDN200612-201005

MAIN 6+HELPER 6-LEAF

main48210-0W120iWU302..DCRTP200612-201707

MAIN 4+HELPER 3-LEAF

main48210-0W191iWU342..75T..DCRTP200912

MAIN 6+HELPER 6-LEAF

main48210-0W200iXZU349,359..5F..WT..(IV1,IV8)200912-202310

MAIN 6+HELPER 6-LEAF

main48210-37380iBU300,340200212-200610

MAIN 2+HELPER 2-LEAF

sub48210-37381

main48210-37410iXZU320200212-200901

MAIN 5+HELPER 6-LEAF

sub48210-37411

main48210-37530iXZU307200212-200901

MAIN 5+HELPER 4-LEAF

sub48210-0W210

main48210-37540iWU300,340..SA200212-201106

MAIN 6+HELPER 5-LEAF

main48210-37551iXZU337,347..80T200212-200901

MAIN 7+HELPER 9-LEAF

main48210-37850iBU303,WU300..ST..TS200212-201106

6-LEAF

sub48210-37851

main48210-37F20iWU30#,34#..WT..(GCC,GEN)200802-201106

MAIN 6+HELPER 6-LEAF

main48210-3V640iBU303,343,WU300,340..WT..(GCC,GEN)200212-200802

MAIN 6+HELPER 6-LEAF

main48210-F1040iWU302,342..ST..T3201708-201804

MAIN 4+HELPER 3-LEAF

sub48210-F1041

main48210-F1041iWU302,342..ST..T3201805-202310

MAIN 4+HELPER 3-LEAF

main48210-F1050iWU342..75T..DCRTP201708

MAIN 7+HELPER 7-LEAF

main48210-F1060iXZU349..6F201708-202310

MAIN 8+HELPER 9-LEAF

main48210-F1070iWU302,342..BUSC201708-201804

MAIN 4+HELPER 3-LEAF

sub48210-F1071

main48210-F1071iXZU309,349..BUSC201805-202310

MAIN 4+HELPER 3-LEAF

48210CBUSH(FOR REAR SPRING LEAF)

main90384-28009iWU342..(DCRTH,DCRTJ)..IDN200212-202310

main90389-16003iBU303,WU300..T3200209-201203

main90389-16024iXZU327200212-201106

FRONT

main90389-16026iBU303,343,WU300,340,XZU30#,330,345..(55T,65T)..(ARL,GCC,GEN,TAIW)200212-201106

REAR

main90389-16026iWU300,340..SA200212-200812

main90389-16028iWU342..65T..DCRTP;WU342..75T..DCRTR200912-201203

main90389-T0020iWU352..T3;WU342..65T;WU342..75T..DCRTR201203-202310

main90389-T0021iXZU309..IV3201203-202310

48220SPRING ASSY, REAR LH

main48210-0W010iWU342..75T..DCRTJ200209-202310

MAIN 7+HELPER 8-LEAF

main48210-0W021iBU343,WU340,XZU342..65T..IDN200209-200612

MAIN 6+HELPER 6-LEAF

main48210-0W033iBU303,WU300..T3200209-200612

MAIN 4+HELPER 3-LEAF

main48210-0W110iWU342..65T..(DCRTH,DCRTJ)..IDN200612-201005

MAIN 6+HELPER 6-LEAF

main48210-0W120iWU302..DCRTP200612-201707

MAIN 4+HELPER 3-LEAF

main48210-0W191iWU342..75T..DCRTP200912

MAIN 6+HELPER 6-LEAF

main48210-0W200iWU352..T3;WU342..65T..DCRTP;WU342..75T..DCRTR200912-202310

MAIN 6+HELPER 6-LEAF

main48210-37380iBU300,340200212-200610

MAIN 2+HELPER 2-LEAF

sub48210-37381

main48210-37410iXZU327200212-200901

MAIN 5+HELPER 6-LEAF

sub48210-37411

main48210-37530iXZU300200212-200901

MAIN 5+HELPER 4-LEAF

sub48210-0W210

main48210-37540iWU300,340..SA200212-201106

MAIN 6+HELPER 5-LEAF

main48210-37551iXZU330,340..80T200212-200901

MAIN 7+HELPER 9-LEAF

main48210-37850iWU30#..ST..TS200212-201106

6-LEAF

sub48210-37851

main48210-37F20iWU30#,34#..WT..(GCC,GEN)200802-201106

MAIN 6+HELPER 6-LEAF

main48210-3V640iBU303,343,WU300,340..WT..(GCC,GEN)200212-200802

MAIN 6+HELPER 6-LEAF

main48210-F1040iWU302,342..ST..T3201708-201804

MAIN 4+HELPER 3-LEAF

sub48210-F1041

main48210-F1041iXZU309,349..ST..IV8..T3201805-202310

MAIN 4+HELPER 3-LEAF

main48210-F1050iWU342..75T..DCRTP201708

MAIN 7+HELPER 7-LEAF

main48210-F1060iXZU349..6F201708-202310

MAIN 8+HELPER 9-LEAF

main48210-F1070iWU302,342..BUSC201708-201804

MAIN 4+HELPER 3-LEAF

sub48210-F1071

main48210-F1071iWU302,342..BUSC201805-202310

MAIN 4+HELPER 3-LEAF

48344STOPPER, BUMPER, REAR

main48344-0W010iWU302..DCRTP200209-202310

main48344-0W020iBU343,WU340,XZU342..IDN200209-201708

main48344-0W030iXZU359;XZU349..5F..WT200912-202310

main48344-37090iBU300,340200212-200610

main48344-37140iXZU330,340..80T200212-200901

main48344-37140iWU30#,34#..WT..(GCC,GEN)200802-201106

TYPE B:REFER TO ILLUSTRATION

main48344-37190iBU303,WU300..ST..TS200212-201106

main48344-37200iBU303,343,WU300,340,XZU300,330..(55T,65T)..(GCC,GEN,TAIW)200212-200901

main48344-37200iWU30#,34#..WT..(GCC,GEN)200610-201106

TYPE A:REFER TO ILLUSTRATION

main48344-37230iXZU327200212-200901

main48344-F1020iXZU309,349..ST..IV8..T3201708-202310

48424PIN, SPRING BRACKET, NO.2

main48424-0W010iXZU349..6F200209-202310

main48424-0W020iWU342..75T..DCRTP200912

main48424-37020iXZU337,347..80T200212-200901

48435ATTACHMENT, HELPER SPRING BRACKET, NO.1

main48435-36020iWU342,352..WT..(DCRTP,DCRTR)200209-202310

main48435-36050iWU300,340..SA200212-201106

main48435-37010iXZU327200212-200901

48453PIN, REAR SPRING PIN LOCK

main48453-55010iWU342..(DCRTH,DCRTJ)..IDN200209-202310

48481SEAT, REAR SPRING, UPPER

main48481-0W010iBU303,WU300..T3200209-201707

sub48481-F1010

main48481-37011iXZU349,359..5F..WT..(IV1,IV8)200209-202310

main48481-37060iXZU327200212-200901

main48481-37071iWU30#,340..(48T,55T)..(DCRTH,DSL)..(GCC,GEN)200212-201106

main48481-37081iBU303,343,WU300,340..55T..(GCC,GEN)200212-200610

HEAVY DUTY SUSPENSION

sub48481-37082

main48481-37081iBU300,340200212-201106

sub48481-37082

main48481-37090iWU342..75T..DCRTJ200209-202310

main48481-F1010iXZU309,349..ST..IV8201708-202310

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-09360iBU343,WU340,XZU342..IDN200209-200612

MARK 48531-0W050

main48531-09370iBU303,WU300..T3200209-200612

MARK 48531-0W060

main48531-09760iWU302..DCRTH..T3200612-201005

MARK 48531-0W060

main48531-09770iWU342,352..85T200612-202310

MARK 48531-0W050

main48531-09830iWU342,352..(65T,75T)..(DCRTP,DCRTR)200912-202310

MARK 48531-0W090

main48531-09840iXZU309,349..ST..IV8200912-202310

MARK 48531-0W060

main48531-80671iBU303,WU300..ST..TS200212-200610

MARK 48531-37040

main48531-80673iWU300,340..SA200212-201106

MARK 48531-37010

sub48531-80796

main48531-80674iXZU320200212-200605

MARK 48531-37030

main48531-80675iXZU337,347..80T200212-200901

MARK 48531-37060

sub48531-80803

main48531-80745iWU30#..ST..TS200610-201106

MARK 48531-37210

sub48531-80794

main48531-80746iXZU320200605-200901

MARK 48531-37230

sub48531-80797

48530ABUSH(FOR REAR SHOCK ABSORBER)

main90385-16007iBU303,343,WU300,340,XZU342..IDN200209-200311

main90385-19011iBU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW200212-201106

main90385-T0006iWU302,342..(DCRTH,DCRTJ)..IDN200311-202310

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-03003iXZU349..6F;XZU309..IV3200209-202310

main90948-03011iBU300,340200212-201106

48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2

main90948-03004iXZU349..5F;XZU309,359..IV1,IV8200209-202310

48530DWASHER, REAR SHOCK ABSORBER CUSHION, NO.3

main90948-03012iWU302,342..(DCRTH,DCRTJ)..IDN200209-202310

48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4

main90948-03004iBU303,343,WU300,340,XZU342..IDN200209-202310

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-09360iBU343,WU340,XZU342..IDN200209-200612

MARK 48531-0W050

main48531-09370iBU303,WU300..T3200209-200612

MARK 48531-0W060

main48531-09760iWU302..DCRTH..T3200612-201005

MARK 48531-0W060

main48531-09770iXZU359..85T;XZU349..5F..IV3200612-202310

MARK 48531-0W050

main48531-09830iWU342,352..(65T,75T)..(DCRTP,DCRTR)200912-202310

MARK 48531-0W090

main48531-09840iWU302,342..ST..DCRTP200912-202310

MARK 48531-0W060

main48531-80671iBU303,WU300..ST..TS200212-200610

MARK 48531-37040

main48531-80673iBU300,340200212-201106

MARK 48531-37010

sub48531-80796

main48531-80674iXZU320200212-200605

MARK 48531-37030

main48531-80675iXZU337,347..80T200212-200901

MARK 48531-37060

sub48531-80803

main48531-80745iWU30#..ST..TS200610-201106

MARK 48531-37210

sub48531-80794

main48531-80746iXZU327200605-200901

MARK 48531-37230

sub48531-80797

48542PIN, SHOCK ABSORBER UPPER PIVOT, REAR

main48542-26020iBU343,WU340,XZU342..IDN200209-200612

main48542-36020iBU303,WU300..T3200209-202002

sub48542-37030

main48542-37010iBU303,WU300..ST..TS200212-201106

main48542-37030iWU302,342..ST202003-202310

9003201143

main90032-01143

9017818002

main90178-18002

9161261032

main91612-61032

91612B1020

main91612-B1020

9413061000

main94130-61000

9418461201

main94184-61201

9453101000

main94531-01000

9461211001

main94612-11001

9645101000

main96451-01000

30 parts on this diagram · 29 diagrams in section
