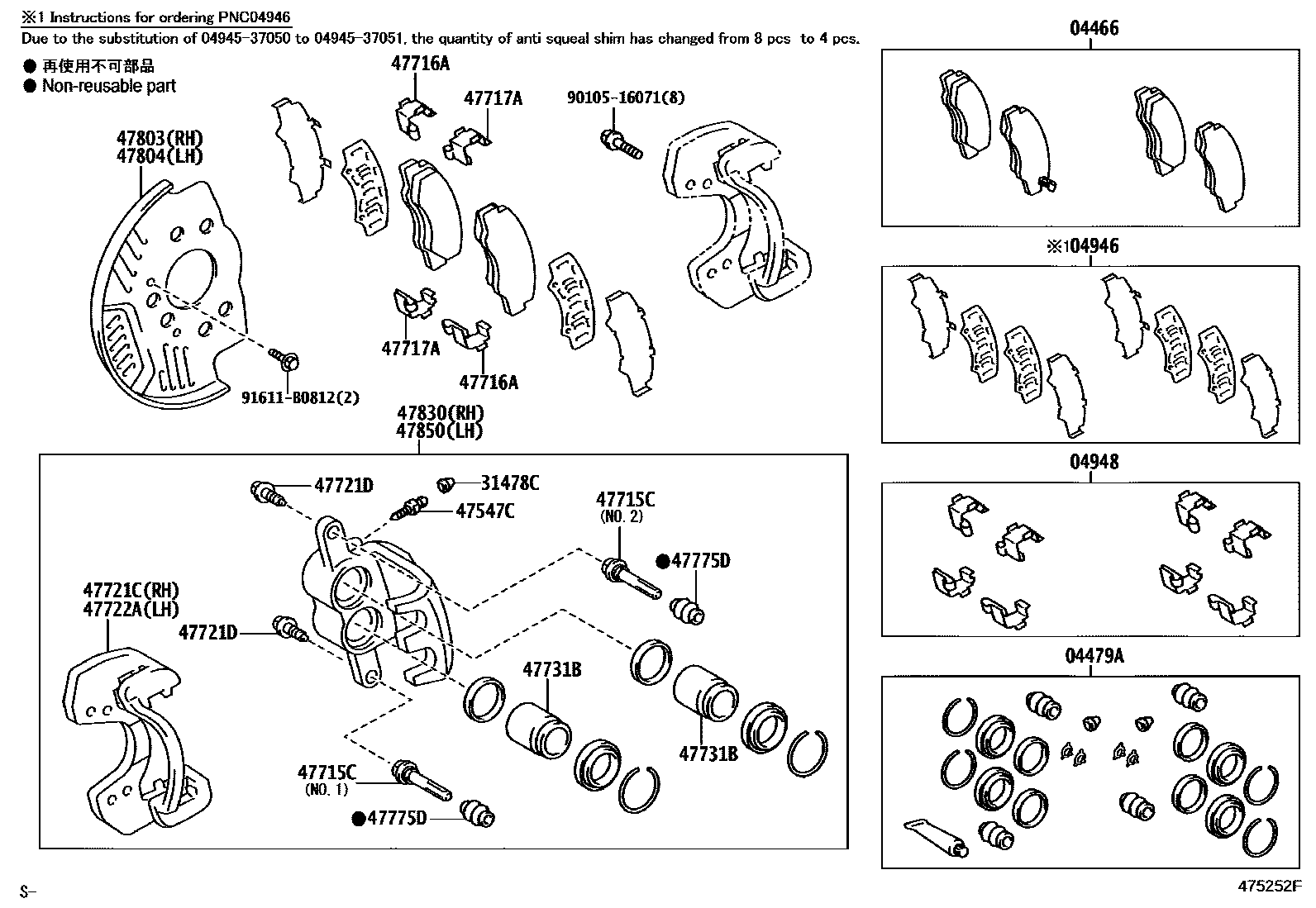

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04465-37090iXZU330,340..80T200410-200610

MARK NS174

04479ACYLINDER KIT, DISC BRAKE, REAR

main04478-37090iXZU330,340..80T200410-200610

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04945-37050iXZU330,340..80T200410-200610

04948FITTING KIT, DISC BRAKE, REAR

main04948-37010iXZU330,340..80T200410-200610

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-37030×2iXZU337,347..80T200610-200901

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47847-37030×2iXZU337,347..80T200610-200901

47715CPIN, CYLINDER SLIDE(FOR REAR DISC BRAKE)

main47714-37120×2iXZU337,347..80T200610-200901

NO.1

main47715-37120×2iXZU330,340..80T200410-200610

NO.2

47716APLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)

main47716-37120×4iXZU330,340..80T200410-200610

47717APLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE)

main47717-37120×4iXZU337,347..80T200610-200901

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-37010iXZU330,340..80T200410-200610

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90105-37120×4iXZU330,340..80T200410-200610

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47821-37010iXZU330,340..80T200410-200610

47731BPISTON, REAR DISC BRAKE

main47731-37120×4iXZU330,340..80T200410-200610

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47775-37120×4iXZU330,340..80T200410-200610

47803COVER SUB-ASSY, DISC BRAKE DUST, REAR RH

main47803-37010iXZU330,340..80T200410-200610

47804COVER SUB-ASSY, DISC BRAKE DUST, REAR LH

main47804-37010iXZU330,340..80T200410-200610

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-37010iXZU330,340..80T200410-200610

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-37010iXZU330,340..80T200410-200610

9010516071

main90105-16071

91611B0812

main91611-B0812

20 parts on this diagram · 1 diagram in section
