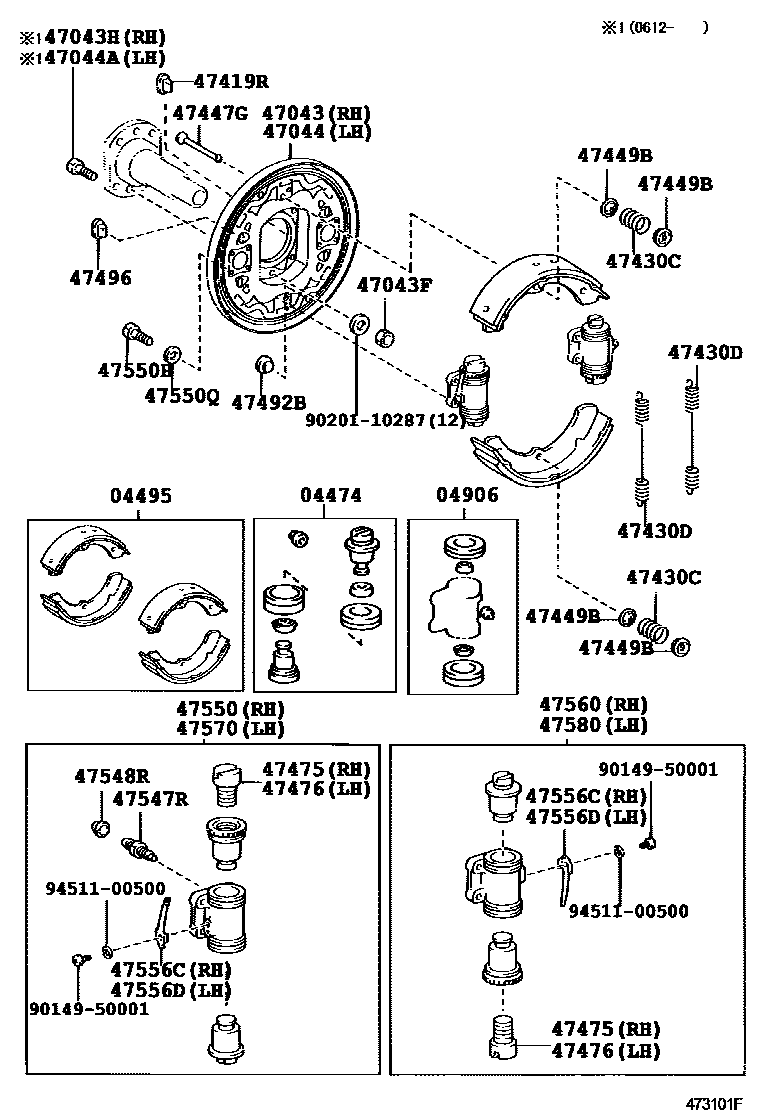

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1W(FRONT DRUM BRAKE) 0006 1 0009 1 0011 1 0012 1

04474CYLINDER KIT, REAR WHEEL

main04468-37020iWU300,340..SA200802-200812

LH

main04468-37172×2iWU342..85T201003-201703

LH

sub04468-37173

main04468-37240iWU30#..ST..TS200610-201106

LH

sub04468-37460

main04468-37250iWU302..DCRTH..T3200612-201005

LH

main04474-36020×2iWU342,352..75T..(DCRTP,DCRTR)200912

RH

main04474-36030×2iWU30#,34#..WT..(GCC,GEN)200610-201106

LH

main04474-36041×2iWU30#..ST..TS201002-201106

W(FRONT DISC BRAKE),RH

main04474-36051×2iXZU30#,320,330,345..(55T,65T)..T3200212-200610

W(FRONT DISC BRAKE),LH

main04474-36160×2iXZU309,349..ST..IV8202203-202310

LH

main04474-36170×2iXZU309,349..ST..IV8202203-202310

RH

main04474-36180×2iWU342,352..65T..DCRTP200912

LH

main04474-36190×2iWU342,352..65T..DCRTP200912

RH

main04474-37030×2iBU303,WU300..ST..TS200212-200610

RH

main04474-37040×2iBU303,WU300..ST..TS200212-200610

LH

main04474-37110×2iXZU305..T4200212-200610

RH

main04474-37120×2iBU300..T4200212-200312

LH

main04474-37170×2iXZU330,340..80T200209-200410

RH

sub04474-37171

main04474-37172×2iWU342..85T201003-201703

RH

sub04474-37173

main04474-37180×2iWU342..85T200912-201003

LH

sub04468-37171

main04474-37240iWU300,340..SA200802-200812

RH

main04474-37400iWU30#..ST..TS200610-201106

RH

sub04474-37590

main04474-37410iWU302..DCRTH..T3200612-201005

RH

main04474-37550×2iXZU359..85T;XZU349..5F..IV3202203-202310

RH & LH

04495SHOE KIT, REAR BRAKE

main04494-25070iBU303..T3200209-200612

MARK AK LA514

main04494-36280iXZU305..T4200212-200610

MARK AK LA514

main04494-36290iBU303,343,WU300..GCC,GEN;WU340,XZU342..(55T,65T)..(GCC,IDN)200209-200610

MARK NBK LN519

main04494-37100iWU342,352..75T..(DCRTP,DCRTR)200912

MARK NBK LN503

main04495-36051iWU342..DCRTH200612-201005

MARK NBK LN503

main04495-37031iWU340,XZU342..75T200209-200212

MARK NBK D2167

main04495-37032iWU342..75T..DCRTJ200612-201005

MARK NBK D2177

sub04495-37034

main04495-37040iXZU307,327,337..55T,65T200610-200901

MARK NBK D9227

main04495-37220iXZU349..6F202203

MARK AK L706

04906CUP KIT, REAR WHEEL CYLINDER

main04906-36181×4iWU300,340..SA200212-200802

main04906-36200iWU302..DCRTH..T3200612-201005

main04906-36240×4iWU302,342..ST..DCRTP200912

main04906-36250×4iXZU349,359..5F..WT..(IV1,IV8)202203-202310

main04906-37040iWU30#..ST..TS200610-201106

sub04906-37460

main04906-37110×4iXZU330,340..80T200209-200410

sub04906-37111

main04906-37180×2iBU303,WU300..ST..TS200212-200610

main04906-37190×2iXZU305..T4200212-200610

sub04906-36211

main04906-37210×2iWU340,XZU342..75T200209-200612

sub04906-37212

main04906-37420×4iWU30#..ST..TS201002-201106

W(FRONT DISC BRAKE)

main04906-37440×4iXZU359..85T;XZU349..5F..IV3202203-202310

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-36051iBU303..T3200209-200612

main47043-36140iWU342,352..65T..DCRTP200912

main47043-36160iWU340,XZU342..65T..IDN200209-200612

main47043-37050iXZU305..T4200212-200610

W(ABS)

main47043-37060iXZU307,327,337..55T,65T200610-200901

W(FRONT DISC BRAKE)

main47043-37070iBU303,WU300..ST..TS200212-200610

main47043-37101iWU342..75T..DCRTJ200612-201005

main47043-37120iXZU305..T4200311-200610

main47043-F1010iXZU359..85T;XZU349..5F..IV3202203-202310

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main94130-01002×12iXZU307,327,337..55T,65T200610-200901

main94130-01441×12iWU342,352..85T201703

47043HBOLT, NO.1(FOR REAR BRAKE BACKING PLATE RH)

main90101-14032×4iXZU330,340..80T200311-200410

main90114-10063×6iWU302,342..(48T,65T)..(DCRTH,DCRTJ)..IDN200610-201005

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-36011iWU302,342..ST..DCRTP200912

main47044-36140iWU342,352..65T..DCRTP200912

main47044-36160iXZU349,359..75T..DCRTJ202203-202310

main47044-37050iBU300..T4200212-200312

W(ABS)

main47044-37060iWU300,340..SA200212-200802

main47044-37070iBU303,WU300..ST..TS200212-200610

main47044-37101iXZU330,340..80T200209-200410

main47044-37120iXZU305..T4200311-200610

main47044-F1010iXZU349..6F202203

47044ABOLT, NO.1(FOR REAR BRAKE BACKING PLATE LH)

main90101-14032×4iWU342..85T200912-201703

main90114-10063×6iXZU307,327,337..55T,65T200610-200901

47419RPLUG, HOLE(FOR REAR BRAKE)

main47419-35011×4iBU343200209-200212

main47491-36020×4iBU343..IDN200212-200610

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main47446-F1010×4iXZU349..6F202203

main90501-20012×4iWU302,342,352..(48T,65T,75T)..(DCRTP,DCRTR)200912

47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main47459-F1010×4iXZU359..85T;XZU349..5F..IV3202203-202310

main90506-29006×4iXZU309..IV3202203

main90507-29006×4iWU300,340..SA200610-200812

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-35020×4iXZU305..T4200212-200610

main47447-36020×4iWU30#..ST..TS200610-201106

main47447-60010×4iXZU349,359..5F..WT..(IV1,IV8)202203-202310

main47447-F1020×4iWU342,352..85T201703

47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30020×8iBU303,WU340,XZU342..(48T,65T)..IDN200209-200612

main47449-F1010×8iXZU349..6F202203

47475BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE)

main47553-36021×2iWU300..T3200209-200610

main47553-36060×2iXZU349,359..5F..WT..(IV1,IV8)202203-202310

main47553-36070×2iWU300,340..SA200212-200802

main47553-37050×2iWU342..85T200912-201703

main47553-37070×2iWU342..75T..DCRTJ200612-201002

main47554-F1010×2iXZU349..6F202203

47476BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE)

main47554-36021×2iXZU309..IV3202203

main47554-36060×2iBU343;BU303,WU300,340..GCC,GEN200209-200610

main47554-36070×2iXZU305,345200212-200610

W(FRONT DISC BRAKE)

main47554-37030×2iXZU330,340..80T200209-200410

main47554-37050×2iWU342..75T..DCRTJ201003-201005

main47554-F1010×2iXZU349..6F202203

47492BPLUG, SHOE INSPECTION(FOR REAR BRAKE)

main47491-37090×8iWU340,XZU342..75T200209-200612

main47492-28010×4iBU303,WU340,XZU342..(48T,65T)..IDN200209-200612

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-36020×8iWU342,352..(65T,75T)..(DCRTP,DCRTR)200912

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-12010×2iXZU309..IV3202203

main47547-27020×2iWU30#,34#..WT..(GCC,GEN)200610-201106

main47547-37130×2iWU342..85T200912-201703

main47547-F1010×2iXZU349..6F202203

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010×2iWU300,340..SA200610-200812

main47548-F1010×2iXZU349..6F202203

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-36051iBU303..T3200209-200612

main47550-36081iWU342,352..65T..DCRTP200912

main47550-37050iWU30#..ST..TS200610-201106

sub47550-37051

main47550-37101iXZU305..T4200212-200610

sub47550-37102

main47550-37112iWU300,340..SA200802-200812

sub47550-37113

main47550-37120iWU340,XZU342..65T..IDN200209-200612

main47550-37121iXZU349,359..75T..DCRTJ202203-202310

main47550-37140iWU342..75T..DCRTJ200612-201002

main47550-37141iWU342..75T..DCRTJ201003-201005

sub47550-37142

main47550-F1010iWU342,352..85T201703-201909

main47550-F1011iXZU359..85T;XZU349..5F..IV3202203-202310

47550HBOLT(FOR REAR WHEEL CYLINDER)

main90101-08081×16iXZU309,349..ST..IV8202203-202310

main90101-10127×16iWU342,352..(65T,75T)..(DCRTP,DCRTR)200912

47550QWASHER(FOR REAR WHEEL CYLINDER)

main90201-08002×16iWU302,342..ST..DCRTP200912

main90201-10287×16iWU342,352..(65T,75T)..(DCRTP,DCRTR)200912

47556SPRING, ADJUSTER LOCK(FOR REAR BRAKE)

main47556-37010×4iWU342..85T200912-201703

47556CSPRING, ADJUSTER LOCK, RH(FOR REAR BRAKE)

main47555-36020×2iXZU309,349..DCRTH..IV8202203-202310

main47555-36051×2iXZU349,359..75T..DCRTJ202203-202310

main47555-37070×2iWU342..75T..DCRTJ200612-201005

main47555-F1010×2iWU342,352..85T201703-201909

main47555-F1011×2iXZU349..6F202203

47556DSPRING, ADJUSTER LOCK, LH(FOR REAR BRAKE)

main47555-36020×2iXZU309,349..DCRTH..IV8202203-202310

main47555-36051×2iXZU349,359..75T..DCRTJ202203-202310

main47555-37070×2iWU342..85T200912-201703

main47555-F1010×2iWU342,352..85T201703-201909

main47555-F1011×2iXZU349..6F202203

47560CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER)

main47560-36051iXZU309..IV3202203

main47560-36081iWU342..DCRTH200612-201005

main47560-36200iBU303,343,WU300,340..WT..(GCC,GEN)200212-200610

W(FRONT DRUM BRAKE)

main47560-36201iXZU349,359..75T..DCRTJ202203-202310

main47560-37020iBU303,WU300..ST..TS200212-200610

sub47560-37021

main47560-37040iXZU330,340..80T200209-200410

main47560-37041iWU342..75T..DCRTJ201003-201005

sub47560-37042

main47560-37072iXZU305..T4200212-200610

sub47560-37073

main47560-37082iBU300,340..T3200212-200312

sub47560-37083

main47560-F1010iWU342,352..85T201703-201909

main47560-F1011iXZU349..6F202203

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47570-36051iWU300..T3200209-200610

main47570-36081iBU343..IDN200209-200610

main47570-37010iBU303,WU300..ST..TS200212-200610

sub47570-37011

main47570-37061iXZU305..T4200212-200610

sub47570-37062

main47570-37072iXZU305,345..T3200212-200610

W(FRONT DISC BRAKE)

sub47570-37073

main47570-37080iXZU300,320,330..55T,65T200209-200410

main47570-37081iXZU349,359..75T..DCRTJ202203-202310

main47570-37100iWU342..85T..T3200912-201003

main47570-37101iWU342..85T201003-201703

sub47570-37102

main47570-F1010iWU342,352..85T201703-201909

main47570-F1011iXZU359..85T;XZU349..5F..IV3202203-202310

47580CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, REAR OR LOWER)

main47580-36051iXZU309,349..ST..IV8202203-202310

main47580-36081iXZU349..WT..DCRTH..IV8202203-202310

main47580-36200iBU303,343,WU300,340..WT..(GCC,GEN)200209-200610

main47580-36201iXZU349,359..75T..DCRTJ202203-202310

main47580-37010iBU303,WU300..ST..TS200212-200610

sub47580-37011

main47580-37030iWU340,XZU342..75T200209-200612

main47580-37031iWU342..85T201003-201703

sub47580-37032

main47580-37062iBU300..T4200212-200312

sub47580-37063

main47580-37072iWU30#..ST..TS201002-201106

W(FRONT DISC BRAKE)

sub47580-37073

main47580-F1010iWU342,352..85T201703-201909

main47580-F1011iXZU359..85T;XZU349..5F..IV3202203-202310

9014950001

main90149-50001

9020110287

main90201-10287

9451100500

main94511-00500
