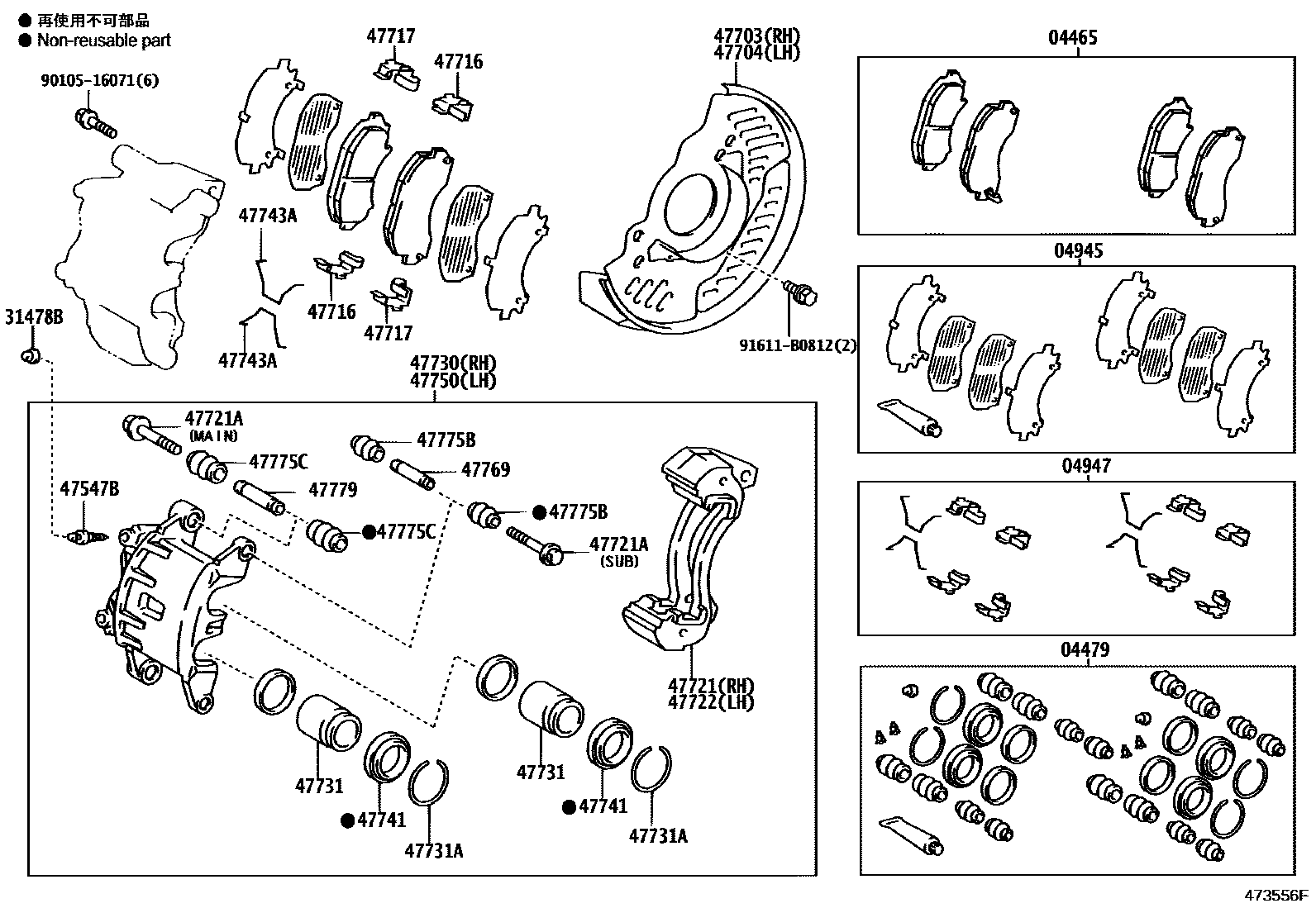

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0004 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-37020iBU300,XZU305..T4200212-200610

MARK AISIN T536

main04465-37030iWU300,340..WT..(GCC,SA);BU30#,34#,XZU305,345..WT..(ARL,GEN)..(T3,TS)200212-200802

MARK AISIN T536

main04465-37090iXZU330,340..80T200410-200610

MARK NS174

sub04465-37091

main04465-37150iWU30#,34#,XZU307,327,337..(55T,65T)..(GCC,GEN,SA,TAIW)200610-201106

MARK AK NS174A

sub04465-37151

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-37020iXZU330,340..80T200410-200610

sub04478-37230

main04479-37010iXZU300,320,330..55T,65T200410-200802

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-37020iBU300,XZU305..T4200212-200610

main04945-37030iWU30#,34#,XZU307,327,337..(55T,65T)..(GCC,GEN,SA,TAIW)200610-201106

main04945-37050iXZU330,340..80T200410-200610

sub04945-37051

04947FITTING KIT, DISC BRAKE, FRONT

main04947-36020iWU300,340..WT..(GCC,SA);BU30#,34#,XZU305,345..WT..(ARL,GEN)200212-200802

main04948-37010iXZU330,340..80T200410-200610

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iWU30#..ST..TS201002-201106

main31478-37030×2iXZU337,347..80T200610-200901

main31478-37040×2iXZU330,340..80T200410-200607

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12010×2iWU30#,34#,XZU307,327,337..(55T,65T)..(GCC,GEN,SA,TAIW)200610-201106

main47547-37120×2iXZU330,340..80T200410-200607

main47847-37030×2iXZU330,340..80T200607-200610

47703COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH

main47703-37030iWU300,340..WT..(GCC,SA);BU30#,34#,XZU305,345..WT..(ARL,GEN)200212-200802

sub47703-37031

main47703-37070iXZU330,340..80T200410-200610

47704COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH

main47704-37030iWU300,340..WT..(GCC,SA);BU30#,34#,XZU305,345..WT..(ARL,GEN)200212-200802

sub47704-37031

main47704-37070iXZU330,340..80T200410-200610

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-36020×4iWU30#..ST..TS201002-201106

main47716-37120×4iXZU337,347..80T200610-200901

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-36020×4iBU303,343,WU300,340,XZU305,345..WT..(ARL,GCC,GEN)200212-200610

main47717-37120×4iXZU337,347..80T200610-200901

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-37020iBU300,XZU305..T4200212-200610

main47721-37030iWU30#,34#,XZU307,327,337..(55T,65T)..(GCC,GEN,SA,TAIW)200610-201106

main47721-37160iXZU330,340..80T200410-200610

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90119-08B87×4iBU303,343,WU300,340,XZU305,345..WT..(ARL,GCC,GEN)200212-200610

*8-1.25PX59-27,SUB PIN SIDE

main90119-12256×4iWU300,340..SA200212-200802

*12-1.25PX75-30,MAIN PIN SIDE

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-37010iBU300,XZU305..T4200212-200610

main47722-37020iWU300,340..SA200212-200802

main47722-37160iXZU330,340..80T200410-200610

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-37020iBU300,XZU305..T4200212-200610

main47730-37030iWU300,340..SA200212-200802

main47730-37160iXZU330,340..80T200410-200610

sub47730-37161

47731PISTON, FRONT DISC BRAKE

main47731-37010×4iBU300,340200212-200312

sub47731-36020

main47731-37120×4iXZU330,340..80T200410-200610

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-61001×4iBU300,340200212-200312

47741BOOT, FRONT DISC BRAKE CYLINDER

main47741-37010×4iWU30#,34#,XZU307,327,337..(55T,65T)..(GCC,GEN,SA,TAIW)200610-201106

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47743-36020×4iBU300,340200212-200312

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-37020iBU300,XZU305..T4200212-200610

main47750-37030iWU30#..ST..TS201002-201106

main47750-37160iXZU330,340..80T200410-200610

sub47750-37161

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-36030×4iBU300,340200212-200312

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-37120×4iXZU330,340..80T200410-200610

sub47775-37121

47775BBOOT, BUSH DUST, NO.1

main47775-36040×8iBU300,340200212-200312

47775CBOOT, BUSH DUST, NO.2

main47775-36050×8iBU300,340200212-200312

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47779-36010×4iBU300,340200212-200312

9010516071

main90105-16071

91611B0812

main91611-B0812

26 parts on this diagram · 2 diagrams in section
