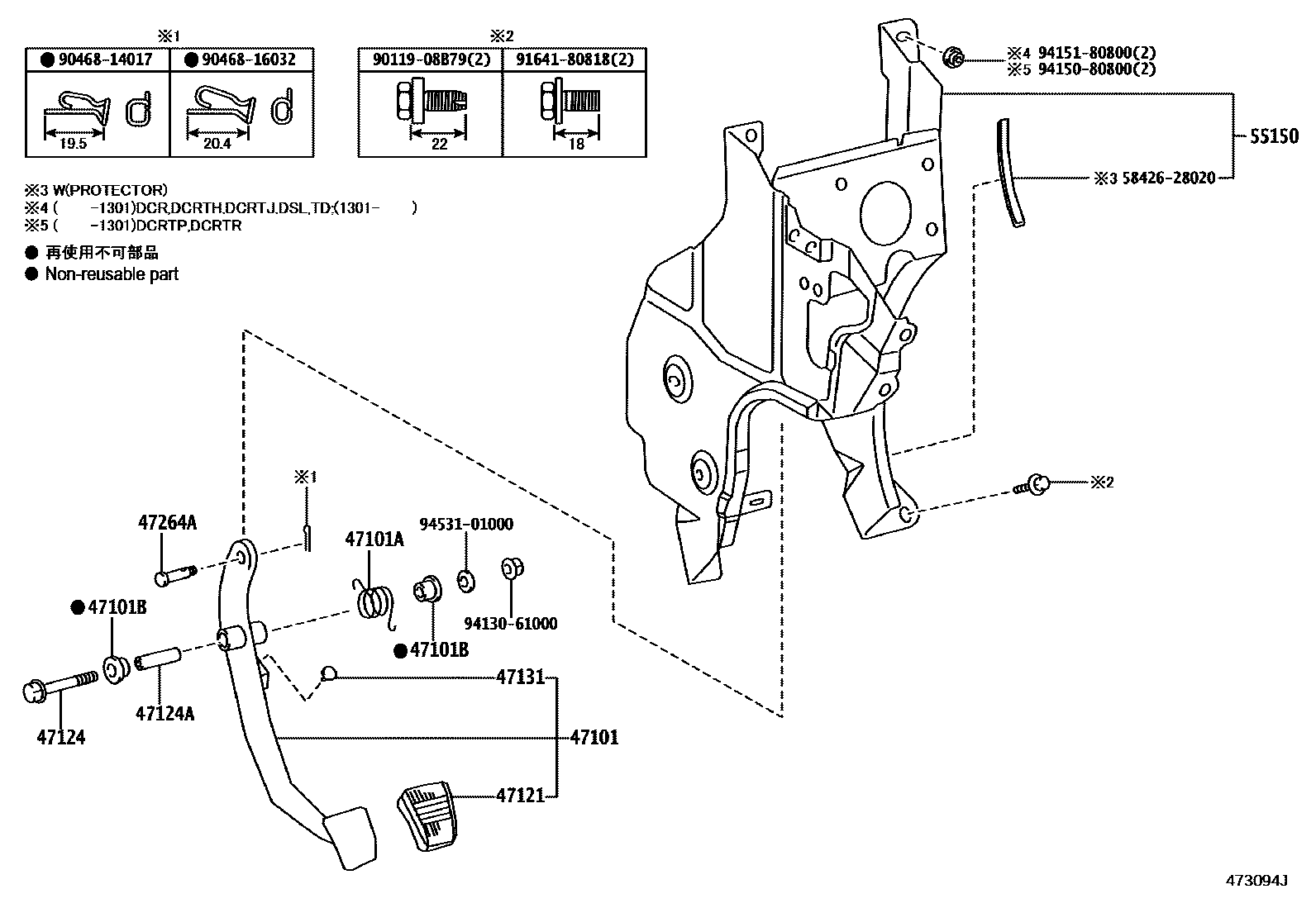

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-0W010iBU303,343,WU300,340,XZU342..IDN200209-200612

main47101-0W030iWU302,342..(DCRTH,DCRTJ)..IDN200912-201005

main47101-37050iWU300,340..SA200212-200802

W(ABS)

main47101-37080iBU300,340200212-200312

main47101-37090iXZU307,327,337,347200610-200901

main47101-F1010iXZU349..5F;XZU309,359..IV1,IV8202203-202310

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90508-35324iWU300,340..SA200209-200802

47101BBUSH(FOR BRAKE PEDAL)

main90386-13007×2iBU300,340200209-200312

47121PAD, BRAKE PEDAL

main31321-0B010iXZU349..6F;XZU309..IV3202203

main31321-14020iXZU307,327,337,347200610-200901

47124SHAFT, BRAKE PEDAL

main91112-61070iXZU349..6F;XZU309..IV3202203

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10004iBU300,340200209-200312

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iBU300,340200212-200312

47264APIN(FOR PUSH ROD)

main90240-10015iWU302,342..(DCRTH,DCRTJ)..IDN200612-201005

main90240-10037iXZU307,327,337,347200610-200901

55150BRACKET ASSY, PEDAL

main55150-0W010iBU303,343,WU300,340,XZU342..IDN200209-200612

main55150-0W020iWU302,342,352..DCRTP,DCRTR200912

main55150-37052iWU30#,34#..LHD200610-201106

main55150-37073iBU303,343,WU300,340..RHD..(GEN,SA); XZU305,345200212-200401

W(ABS)

main55150-37074iBU303,343..RHD..GEN; XZU305,345200402-200610

W(ABS)

main55150-37110iXZU305,345200212-200401

main55150-37111iXZU305,345200402-200610

main55150-37230iWU340..RHD200908-201106

main55150-F1010iXZU349..5F;XZU309,359..IV8202203-202310

5842628020NUT, BATTERY SERVICE HOLE COVER

main58426-28020

9011908B79

main90119-08B79

9046814017

main90468-14017

9046816032

main90468-16032

9164180818

main91641-80818

9413061000

main94130-61000

9415080800

main94150-80800

9415180800

main94151-80800

9453101000

main94531-01000

18 parts on this diagram · 1 diagram in section
