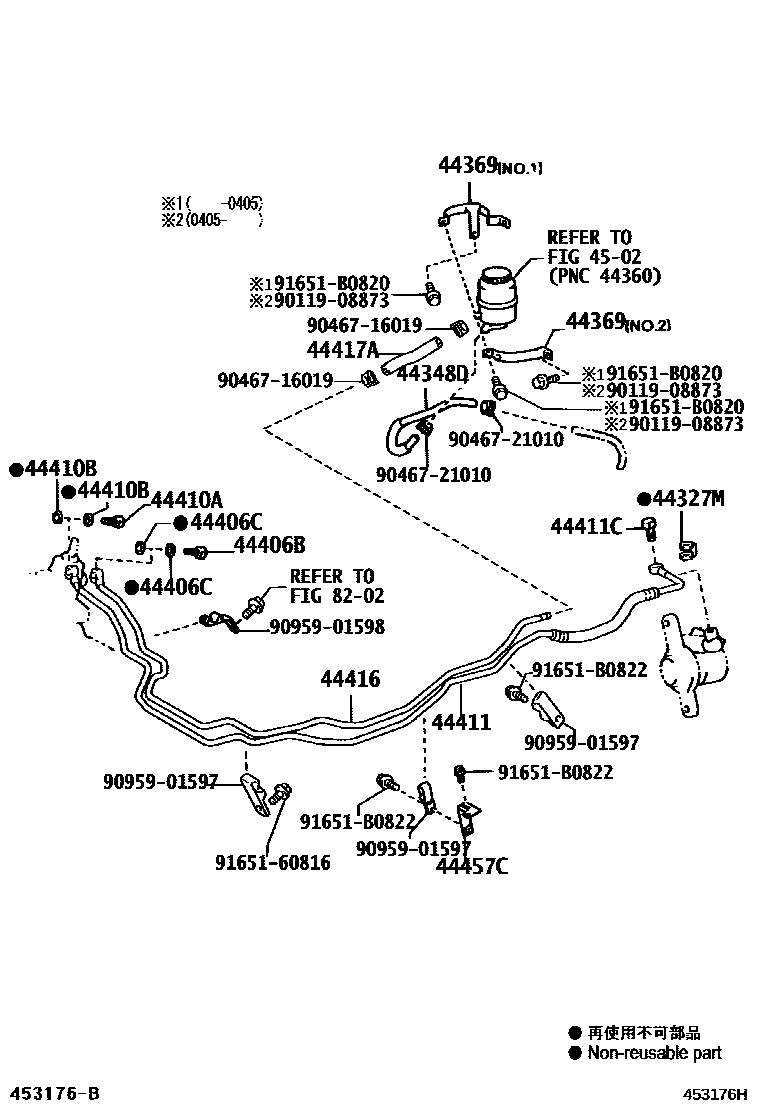

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0010 1 0011 1 0012 1 0013 1 0014 1

44327MGASKET, PRESSURE PORT, NO.2

main44327-30030iBU300,340200209-200612

main90461-10832iWU300,340..SA200212-200802

44348DHOSE, OIL RESERVOIR TO PUMP, NO.2

main44348-37110iXZU300,320,330,340200212-200610

main44348-37260iXZU342200209-200612

main44348-37290iWU300,340..SA200212-200802

main44348-37300iBU303,343..GEN200212-200610

main44348-37320iXZU305,345200312-200610

main44348-37390iWU300,340..SA200610-201106

main44348-37400iXZU307,327,337,347200610-200901

main44348-37500iXZU349..5F;XZU309,359..IV1,IV8202203-202310

44369BRACKET, OIL RESERVOIR, NO.1

main44369-0W020iXZU342200503-200612

NO.1

main44369-37040iXZU342200209-200802

NO.1

main44369-37080iXZU305,345200312-200610

NO.1

main44369-37090iXZU305,345200312-200610

NO.2

main44369-37100iXZU342;WU300,340..GCC,SA;BU30#,34#,XZU300,320,330,340..ARL,GEN,TAIW200209-200802

NO.2

44406BBOLT, UNION(FOR RETURN TUBE)

main90401-14003iBU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW200209-200802

44406CGASKET(FOR RETURN TUBE)

main90430-14235iBU300,340200209-200802

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main90401-14003iWU300,340..SA200209-200802

44410BGASKET(FOR PRESSURE FEED TUBE)

main90430-14235iBU300,340200209-200802

44411HOSE, PRESSURE FEED

main44411-37141iWU300,340..SA200212-201602

sub44411-37142

main44411-37142iWU302,342,352201603

main44411-37230iXZU342200209-200612

sub44411-37231

main44411-37250iXZU305,345200312-200610

sub44411-37251

main44411-37350iXZU307,337,347200610-200901

sub44411-37351

main44411-37360iXZU327200610-200901

sub44411-37361

main44411-37800iXZU349..5F;XZU309,359..IV1,IV8202203-202310

44411CBOLT, UNION(FOR PRESSURE FEED HOSE)

main90401-16027iXZU349..6F;XZU309..IV3200209-202310

main90904-01001iXZU300,320,330,340200212-200610

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-0W070iWU302,342,352..DCRTP,DCRTR200912

main44416-37250iBU303,343,WU300,340,XZU300,320,330,340..LHD200212-200410

sub44416-37251

main44416-37251iBU303,343,WU300,340,XZU300,320,330,340..LHD200411-200610

main44416-37390iXZU342200209-200612

main44416-37411iBU300,340200212-200311

main44416-37420iWU300,340..SA200212-200802

main44416-37450iXZU305,345200312-200610

main44416-37500iWU340..RHD..CBU200610-201106

main44416-37510iWU300,340..SA200802-200812

main44416-37520iWU30#,34#..LHD200610-201106

main44416-37550iXZU307,337,347200610-200901

main44416-37560iXZU327200610-200901

main44416-F1060iXZU349..5F;XZU309,359..IV1,IV8202203-202310

44417AHOSE, RETURN TUBE (FOR RETURN TUBE TO RETURN TUBE NO.2)

main44412-37120iBU300,340200212-200802

main44412-37210iWU300,340..SA200610-201106

main44412-37320iXZU349..6F;XZU309..IV3202203-202310

main90445-18146iXZU342200209-200612

44457CBRACKET, POWER STEERING TUBE SUPPORT, NO.1

main44457-37090iBU300,340200209-200802

4502

8202

9011908873

main90119-08873

9046716019

main90467-16019

9046721010

main90467-21010

9095901597

main90959-01597

9095901598

main90959-01598

9165160816

main91651-60816

91651B0820

main91651-B0820

91651B0822

main91651-B0822

22 parts on this diagram · 13 diagrams in section
