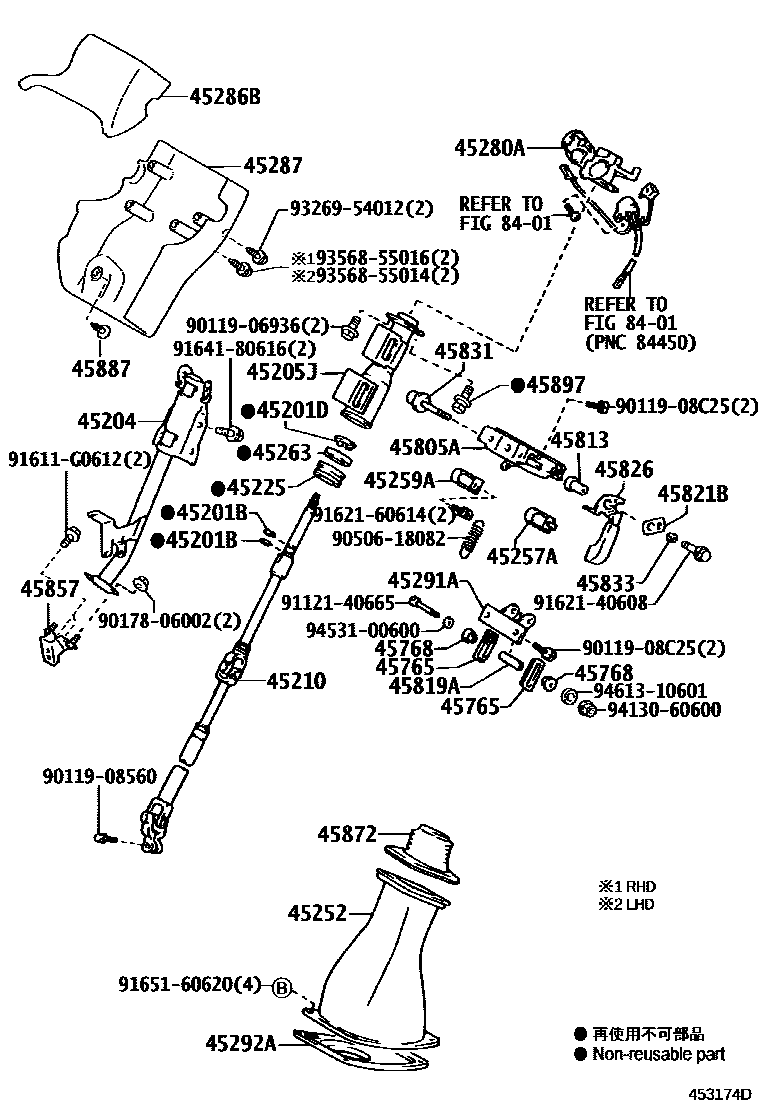

STEERING COLUMN & SHAFT

0001 1TILT & TELESCOPIC STEERING 0005 1TILT & TELESCOPIC STEERING 0008 1RIGID STEERING 0010 1 0012 1TILT & TELESCOPIC STEERING 0013 1TILT & TELESCOPIC STEERING 0014 1 0015 1TILT & TELESCOPIC STEERING

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17269×2iBU300,340200209-200312

T=1.20

45201DRING(FOR STEERING MAIN SHAFT)

main90520-28065iBU300,340200209-200312

45204TUBE ASSY, STEERING COLUMN, LOWER

main45204-0W010iWU302,342..(DCRTH,DCRTJ)..IDN200612-201005

main45204-37130iWU300,340..SA200212-200802

main45204-37140iBU303,343,WU300,340,XZU300,320,330,340..LHD200212-200610

main45821-0W010iWU302,342,352..DCRTP,DCRTR200912-201912

main45821-0W011iXZU349..6F;XZU309..IV3202203

45205JTUBE SUB-ASSY, STEERING COLUMN, UPPER

main45205-25130iBU303,343,WU300,340..IDN200209-200311

W(RIGID STEERING)

main45205-37050iBU303,343,WU300,340,XZU300,320,330,340..LHD200212-200407

W(TILT & TELESCOPIC STEERING)

main45205-37090iWU302,342,352..DCRTP,DCRTR200912

main45205-37100iBU303,343,WU300,340..GCC,GEN200407-200610

W(RIGID STEERING)

45210SHAFT ASSY, STEERING MAIN

main45210-0W010iBU303,343,WU300,340..IDN200209-200311

main45210-0W011iBU303,343,WU300,340..IDN200311-200603

main45210-0W012iBU303,343,WU300,340..IDN200604-200612

main45210-0W020iXZU342200209-200311

main45210-0W021iXZU342200311-200601

main45210-0W022iXZU342200602-200612

main45210-37080iXZU305,345200312-200404

main45210-37110iBU303,343,WU300,340..RHD..(GEN,SA)200212-200405

W(TILT & TELESCOPIC STEERING)

main45210-37150iBU303,343,WU300,340..GCC,GEN200212-200407

W(RIGID STEERING)

main45210-37180iXZU305,345200405-200609

main45210-37240iBU303,343,WU300,340..GCC,GEN200407-200610

W(RIGID STEERING)

main45210-37241iWU30#,34#..GCC,GEN200801-201106

main45210-37250iBU303,343..RHD..GEN200405-200610

W(TILT & TELESCOPIC STEERING)

main45210-37300iWU30#,34#..GCC,GEN200610-201106

W(TILT & TELESCOPIC STEERING)

45225BLOCK, BEARING

main45225-26010iWU300,340,XZU305,345..RHD..55T200209-200405

45252TUBE, STEERING COLUMN, LOWER

main45252-0W010-B0iWU302,342..DCRTP,DCRTR200912-201708

DK.CHARCOAL,TRIM1#

main45252-0W020iXZU349..5F;XZU309,359..IV1,IV8202203-202310

main45252-37030-B0iBU303,343,WU300,340,XZU342..IDN200209-200612

MD.CHARCOAL,TRIM1#

main45252-37031-B0iWU340..RHD200910-201106

MD.CHARCOAL,TRIM1#

main45252-37040-B0iBU303,343,WU300,340,XZU300,320,330,340..LHD200212-200610

MD.CHARCOAL,TRIM1#

main45252-37041-B0iWU30#,34#..LHD200910-201106

MD.CHARCOAL,TRIM1#

45257APLATE, STEERING COLUMN ENERGY ABSORBING

main45257-37010iXZU342200209-200612

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-37010iBU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW200209-200610

45263RING, STEERING COLUMN, NO.1

main45263-37010iBU300,340200209-200312

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-25050iXZU349..5F;XZU309,359..IV1,IV8202203-202310

main45280-37100iXZU307,327,337,347200610-200901

45286BCOVER, STEERING COLUMN, UPR

main45286-0W010-B0iWU302,342..DCRTP,DCRTR200912-201708

DK.CHARCOAL,TRIM1#

main45286-0W020iXZU349..6F;XZU309..IV3202203

main45286-25160-B0iBU303,343..RHD..GEN200209-200610

W(RIGID STEERING),MD.CHARCOAL,TRIM1#

main45286-25161-B0iWU302,342..(DCRTH,DCRTJ)..IDN200910-201005

MD.CHARCOAL,TRIM1#

main45286-25170-B0iWU30#,34#..LHD200610-200909

MD.CHARCOAL,TRIM1#

main45286-25171-B0iWU30#,34#..LHD200910-201106

MD.CHARCOAL,TRIM1#

main45286-37080-B0iBU303,343..RHD..GEN200209-200610

W(TILT & TELESCOPIC STEERING),MD.CHARCOAL,TRIM1#

main45286-37081-B0iWU340..RHD200910-201106

W(TILT & TELESCOPIC STEERING),MD.CHARCOAL,TRIM1#

main45286-37090-B0iWU30#,34#..LHD200610-200909

W(TILT & TELESCOPIC STEERING),MD.CHARCOAL,TRIM1#

main45286-37091-B0iWU30#,34#..LHD200910-201106

W(TILT & TELESCOPIC STEERING),MD.CHARCOAL,TRIM1#

45287COVER, STEERING COLUMN, LWR

main45287-0W010-B0iWU302,342..DCRTP,DCRTR200912-201708

DK.CHARCOAL,TRIM1#

main45287-0W020iWU302,342,352201708-201901

main45287-0W021iXZU349..6F;XZU309..IV3202203

main45287-25050-B0iBU303,343..RHD..GEN200209-200610

W(RIGID STEERING),MD.CHARCOAL,TRIM1#

main45287-25051-B0iWU302,342..(DCRTH,DCRTJ)..IDN200910-201005

MD.CHARCOAL,TRIM1#

main45287-25060-B0iWU30#,34#..LHD200610-200909

MD.CHARCOAL,TRIM1#

main45287-25061-B0iWU30#,34#..LHD200910-201106

MD.CHARCOAL,TRIM1#

main45287-37080-B0iXZU305,345200312-200610

MD.CHARCOAL,TRIM1#

main45287-37081-B0iWU340..RHD200910-201106

W(TILT & TELESCOPIC STEERING),MD.CHARCOAL,TRIM1#

main45287-37090-B0iBU303,343,WU300,340,XZU300,320,330,340..LHD200212-200610

W(TILT & TELESCOPIC STEERING),MD.CHARCOAL,TRIM1#

main45287-37091-B0iWU30#,34#..LHD200910-201106

W(TILT & TELESCOPIC STEERING),MD.CHARCOAL,TRIM1#

45291ASUPPORT, STEERING COLUMN TUBE

main45803-37010iXZU307,327,337,347200610-200901

45292ACOVER, MAIN SHAFT LOWER DUST

main45292-37010iWU30#,34#..LHD200610-201106

main45292-37030iWU300,340..SA200209-200802

45765GUIDE, TELESCOPIC STEERING

main45765-37010×2iBU300,340200209-200312

45768BUSH, TELESCOPIC STEERING

main45768-37010×2iBU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW200209-200610

45805ASUPPORT SUB-ASSY, TILT STEERING

main45805-37010iBU300,340200209-200312

45813COLLAR, TILT STEERING SUPPORT, NO.1

main45813-37010iBU300,340200209-200312

OD=30

45819ACOLLAR(FOR TILT LEVER RETAINER)

main90387-06037iBU300,340200209-200312

45821BREINFORCE, TILT STEERING SUPPORT, NO.1

main45821-12010iWU300,340..SA200209-200802

45826LEVER, STEERING TILT

main45826-37010iBU300,340200209-200312

45831BOLT, TILT LEVER LOCK, NO.1

main45831-37010iBU300,340200209-200312

45833NUT, TILT STEERING ADJUSTING, NO.1

main45833-37010iBU300,340200209-200312

45857BRACKET, TILT STEERING COLUMN TUBE, NO.1

main45857-0W010iWU302,342..(DCRTH,DCRTJ)..IDN200612-201005

main45857-37020iWU300,340..SA200212-200802

main45857-37040iBU303,343,WU300,340,XZU300,320,330,340..LHD200212-200610

45872COVER, STEERING COLUMN TUBE

main45872-37010iBU303,343,WU300,340,XZU342..IDN200209-200612

45887CLIP, STEERING TELESCOPIC LEVER

main90467-07041-B7iWU302,342..DCRTP,DCRTR200912-201708

DK.CHARCOAL,TRIM1#

main90467-07041-B8iWU30#,34#..GCC,GEN200610-201106

MD.CHARCOAL,TRIM1#

main90467-07041-C0iWU302,342,352201708

BLACK,TRIM1#

45897BOLT, STEERING LOCK SET

main45897-25010iBU300,340200209-200312

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906936

main90119-06936

9011908560

main90119-08560

9011908C25

main90119-08C25

9017806002

main90178-06002

9050618082

main90506-18082

9112140665

main91121-40665

91611G0612

main91611-G0612

9162140608

main91621-40608

9162160614

main91621-60614

9164180616

main91641-80616

9165160620

main91651-60620

9326954012

main93269-54012

9356855014

main93568-55014

9356855016

main93568-55016

9413060600

main94130-60600

9453100600

main94531-00600

9461310601

main94613-10601

46 parts on this diagram · 8 diagrams in section
