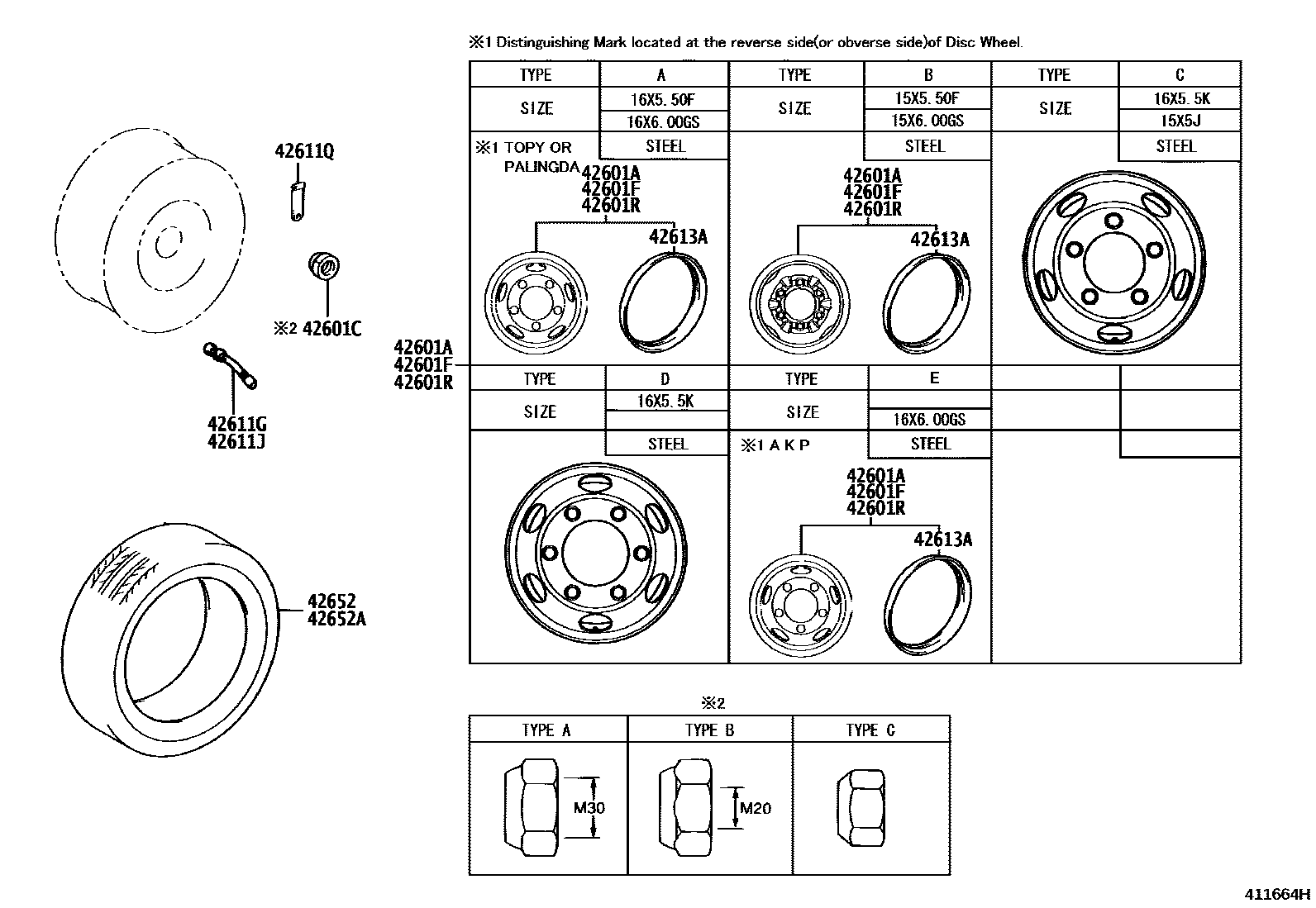

DISC WHEEL & WHEEL CAP

0001 1DISC WHEEL 0002 1BALANCE WEIGHT

42601AWHEEL, DISC (FOR SPARE)

main42601-37240iBU300,340..T3200212-200610

16X5.5K, #,TYPE C:REFER ILLUST.

main42601-37270iXZU330,340..80T200212-200901

16X5.5K, #,TYPE D:REFER ILLUST.

main42601-37300iBU300..T4200212-200610

15X5J, #,TYPE C:REFER ILLUST.

main42610-0W010iWU342,352..75T,85T201410-202310

16X6.00GS, #,TYPE E:REFER ILLUST.

main42610-0W020iWU342..(75T,85T)..(DCRTP,DCRTR)200209-201104

16X6.00GS, #,TYPE A:REFER ILLUST.

main42610-0W021iWU342,352..75T,85T201105-202310

16X6.00GS, #,TYPE A:REFER ILLUST.

main42610-0W030iBU343..IDN200209-201104

16X5.50F, #,TYPE A:REFER ILLUST.

sub42610-0W031

main42610-0W031iXZU349..WT..DCRTH..IV8201105-202310

16X5.50F, #,TYPE A:REFER ILLUST.

main42610-0W050iBU303,WU300..T3200209-201104

15X5.50F, #,TYPE B:REFER ILLUST.

sub42610-0W051

main42610-0W051iWU302,342..ST..IDN201105-202310

15X5.50F, #,TYPE B:REFER ILLUST.

main42610-37091iBU303,343,WU300,340,XZU300,320,330..(48T,55T,65T)..(GCC,GEN,TAIW)200212-201106

16X5.50F, #,TYPE A:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main42633-0W010iXZU359;XZU349..5F..WT200912-202310

RH,T/P A:SEE ILLUST

main42633-37020iXZU307,327,337..55T,65T200610-201106

RH,T/P A:SEE ILLUST

main42633-55030iXZU330,340..80T200209-200609

RH,T/P A:SEE ILLUST

main42634-0W010iWU342,352..WT..(DCRTP,DCRTR)200912-202310

LH,T/P A:SEE ILLUST

main42634-37020iWU300,340..SA200610-201106

LH,T/P A:SEE ILLUST

main42634-55030iWU340,XZU342..55T,65T;BU303,343,WU300,XZU300,320,330..(55T,65T)..(GCC,GEN,SA,TAIW)200209-200609

LH,T/P A:SEE ILLUST

main43522-37010iXZU307,327,337..55T,65T200610-201106

RH,T/P B:SEE ILLUST

main43522-37020iXZU307,327,337..55T,65T200610-201106

LH,T/P B:SEE ILLUST

main90942-01012iXZU309..IV3200209-202310

RH,T/P C:SEE ILLUST

main90942-01013iWU302..DCRTH..T3200209-202310

LH,T/P C:SEE ILLUST

main90942-01107iBU300,340200209-200609

RH,T/P B:SEE ILLUST

main90942-01108iBU300,340200209-200609

LH,T/P B:SEE ILLUST

main90942-T1001iWU342,352..(65T,75T)..(DCRTP,DCRTR)200912-202310

RH,T/P B:SEE ILLUST

main90942-T1002iWU342,352..85T200912-202310

LH,T/P B:SEE ILLUST

42601FWHEEL, DISC (FOR FRONT)

main42601-37240iBU300,340..T3200212-200610

16X5.5K, #,TYPE C:REFER ILLUST.

main42601-37270iXZU337,347..80T200212-200901

16X5.5K, #,TYPE D:REFER ILLUST.

main42601-37300iXZU305..T4200212-200610

15X5J, #,TYPE C:REFER ILLUST.

main42610-0W010iWU342,352..75T,85T201410-202310

16X6.00GS, #,TYPE E:REFER ILLUST.

main42610-0W020iWU342..(75T,85T)..(DCRTP,DCRTR)200209-201104

16X6.00GS, #,TYPE A:REFER ILLUST.

main42610-0W021iXZU349..6F201105-202310

16X6.00GS, #,TYPE A:REFER ILLUST.

main42610-0W030iBU343..IDN200209-201104

16X5.50F, #,TYPE A:REFER ILLUST.

sub42610-0W031

main42610-0W031iWU342,352..65T..IDN201105-202310

16X5.50F, #,TYPE A:REFER ILLUST.

main42610-0W050iBU303,WU300..T3200209-201104

15X5.50F, #,TYPE B:REFER ILLUST.

sub42610-0W051

main42610-0W051iWU302,342..ST..IDN201105-202310

15X5.50F, #,TYPE B:REFER ILLUST.

main42610-37091iWU300,340..SA200212-201106

16X5.50F, #,TYPE A:REFER ILLUST.

42601RWHEEL, DISC (FOR REAR)

main42601-37240iXZU305,345..T3200212-200610

16X5.5K, #,TYPE C:REFER ILLUST.

main42601-37270iXZU337,347..80T200212-200901

16X5.5K, #,TYPE D:REFER ILLUST.

main42601-37300iXZU305..T4200212-200610

15X5J, #,TYPE C:REFER ILLUST.

main42610-0W010iXZU349..6F201410-202310

16X6.00GS, #,TYPE E:REFER ILLUST.

main42610-0W020iWU342..DCRTJ..IDN200209-201104

16X6.00GS, #,TYPE A:REFER ILLUST.

main42610-0W021iXZU349..6F201105-202310

16X6.00GS, #,TYPE A:REFER ILLUST.

main42610-0W030iBU343..IDN200209-201104

16X5.50F, #,TYPE A:REFER ILLUST.

sub42610-0W031

main42610-0W031iWU342,352..65T..IDN201105-202310

16X5.50F, #,TYPE A:REFER ILLUST.

main42610-0W050iWU302..DCRTP200209-201104

15X5.50F, #,TYPE B:REFER ILLUST.

sub42610-0W051

main42610-0W051iWU302,342..ST..IDN201105-202310

15X5.50F, #,TYPE B:REFER ILLUST.

main42610-37091iWU30#,34#..WT..(GCC,GEN)200212-201106

16X5.50F, #,TYPE A:REFER ILLUST.

42611GVALVE (FOR TUBELESS TIRE)

main90942-05026iBU300,340200212-200901

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05026iBU300,340200212-200901

42611QCLIP (FOR TUBE)

main90468-10014iBU303,WU300..ST..TS200212-201106

42613ARING, DISC WHEEL SIDE

main42613-0W010iXZU349..6F201105-202310

TYPE A:REFER ILLUST.

main42613-0W010iWU340,XZU342..IDN200209-201105

main42613-0W020iBU343..IDN200209-202310

main42613-0W040iXZU309,349..ST..IV8200209-202310

main42613-0W050iXZU359;XZU349..5F..(75T,85T)201410-202310

TYPE E:REFER ILLUST.

main42613-37030iWU30#..ST..TS200212-201106

42652TIRE

main42605-0W010iWU342..DCRTJ..IDN200209-201005

7.50-16-14PR

sub42605-0W011

main42605-0W011iXZU349..6F202203-202310

7.50-16-14PR

main42605-0W020iWU302..DCRTH..T3200209-201708

7.50-15-12PR,W(TUBE)

main42605-0W030iBU343..IDN200209-201005

7.00-16-14PR

main42605-0W040iWU340,XZU342..IDN200209-201502

7.50-16-14PR,W(TUBE)

main42605-0W042iXZU359;XZU349..5F..(75T,85T)201502-202310

7.50-16-14PR,W(TUBE)

main42605-36230iWU30#..ST..GEN..IV3200212-201106

7.00-16-10,LUG

main42605-36230iWU30#..ST..GEN..CBU200610-201106

7.00-16-10,LUG,FRONT

main42605-36340iWU30#..ST..GEN..CBU200610-201106

7.00-16-12,LUG,REAR

main42605-36340iWU30#..ST..GEN..CBU200212-201106

7.00-16-12,LUG

main42605-36460iXZU320200306-200901

7.00R16-12,*Y/H

main42605-36540iXZU300,320,330..55T,65T200212-200901

7.00R16-10,RIB

main42605-36580iBU303,343..55T200212-200610

7.00R16-10,LUG

main42605-36580iWU30#,34#..55T..GEN200610-201106

7.00R16-10,LUG,REAR

main42605-37170iWU300..ST..TS200212-200707

7.00-16-10,RIB

main42605-37180iWU300..ST..GCC200212-200707

7.00-16-12,RIB

main42605-37300iWU30#,34#..55T..(GCC,GEN)200707-201012

7.00R16-10,RIB,*D/L

sub42605-37301

main42605-37301iWU30#,34#..55T201101-201106

7.00R16-10,RIB,*D/L

main42605-37320iBU303,343,WU300,340..WT..(GCC,GEN)200212-200610

7.00R16-12,LUG

sub42605-37321

main42605-37320iWU30#,34#..WT..(GCC,GEN)200610-201106

7.00R16-12,LUG,REAR

sub42605-37321

main42605-37330iWU300,340..WT..GCC200610-201012

7.00R16-10,LUG,REAR

sub42605-37331

main42605-37330iWU300,340..WT..GCC200212-200610

7.00R16-10,LUG

sub42605-37331

main42605-37331iWU300,340..WT..GCC201101-201106

7.00R16-10,LUG,REAR

main42605-37340iWU300,340..WT..GCC200212-200306

7.00-16-10,LUG

main42605-37470iBU303,343,WU300,340..(48T,55T)..(GCC,GEN)200212-201106

7.00R16-10,RIB

sub42605-37471

main42605-37470iBU303,343,WU300,340..55T..(GCC,GEN)200212-201106

7.00R16-10,RIB,FRONT

sub42605-37471

main42605-37490iBU303,WU300..ST..TS200212-201106

7.00R16-12,RIB

sub42605-37491

main42605-37490iBU303,343,WU300,340..WT..(GCC,GEN)200212-201106

7.00R16-12,RIB,FRONT

sub42605-37491

main42605-37840iWU300,340..SA200304-200812

7.00-16-10,RIB

main42605-37850iWU300,340..SA200304-200812

7.00R16-10,RIB

main42605-37860iWU300,340..SA200304-200812

7.00-16-10,LUG

main42652-37101iXZU330,340..80T200212-200610

205/85R16,*Y/H,YOKOHAMA

main42652-37101iXZU337,347..80T200610-200901

205/85R16,*Y/H

main42652-37551iXZU337,347..80T200610-200901

205/85R16,*D/L

main42652-37551iXZU330,340..80T200212-200610

205/85R16,*D/L,DUNLOP

main98961-70165iWU30#,34#..55T..GEN200212-200707

7.00-16-10,RIB

main98961-70166iBU303..ST..TS200212-201106

7.00-16-12,RIB

42652ATIRE (FOR SPARE)

main42605-0W010iWU342..DCRTJ..IDN200209-201005

7.50-16-14PR

sub42605-0W011

main42605-0W011iXZU359;XZU349..5F..(75T,85T)202203-202310

7.50-16-14PR

main42605-0W020iWU302..DCRTP200209-201708

7.50-15-12PR,W(TUBE)

main42605-0W030iWU342..DCRTH200209-201005

7.00-16-14PR

main42605-0W040iWU342..75T,85T200209-201502

7.50-16-14PR,W(TUBE)

main42605-0W042iXZU359;XZU349..5F..(75T,85T)201502-202310

7.50-16-14PR,W(TUBE)

main42605-36230iWU30#,34#..55T..GEN..IV3200212-201106

7.00-16-10,LUG

main42605-36340iBU303,343..GEN200212-201106

7.00-16-12,LUG

main42605-36460iXZU320200306-200901

7.00R16-12,*Y/H

main42605-36540iXZU307,327,337..55T,65T200212-200901

7.00R16-10,RIB

main42605-36580iWU30#,34#..55T..GEN200212-201106

7.00R16-10,LUG

main42605-37170iWU300,340..WT..GCC200212-200707

7.00-16-10,RIB

main42605-37180iWU300,340..GCC200212-200707

7.00-16-12,RIB

main42605-37300iWU30#,34#..55T..(GCC,GEN)200707-201012

7.00R16-10,RIB,*D/L

sub42605-37301

main42605-37301iWU30#,34#..55T201101-201106

7.00R16-10,RIB,*D/L

main42605-37320iBU303,343,WU300,340..GCC,GEN200212-201106

7.00R16-12,LUG

sub42605-37321

main42605-37330iWU300,340..WT..GCC200212-201012

7.00R16-10,LUG

sub42605-37331

main42605-37331iWU300,340..WT..GCC201101-201106

7.00R16-10,LUG

main42605-37340iWU300,340..WT..GCC200212-200306

7.00-16-10,LUG

main42605-37470iWU30#,34#..55T..(GCC,GEN)200212-201106

7.00R16-10,RIB

sub42605-37471

main42605-37490iBU303,343,WU300,340..GCC,GEN200212-201106

7.00R16-12,RIB

sub42605-37491

main42605-37840iWU300,340..SA200304-200812

7.00-16-10,RIB

main42605-37850iWU300,340..SA200304-200812

7.00R16-10,RIB

main42605-37860iWU300,340..SA200304-200812

7.00-16-10,LUG

main42652-37101iXZU330,340..80T200212-200610

205/85R16,*Y/H,YOKOHAMA

main42652-37101iXZU337,347..80T200610-200901

205/85R16,*Y/H

main42652-37551iXZU330,340..80T200212-200610

205/85R16,*D/L,DUNLOP

main42652-37551iXZU337,347..80T200610-200901

205/85R16,*D/L

main98961-70165iWU30#,34#..55T..GEN200212-200707

7.00-16-10,RIB

main98961-70166iWU30#,34#..WT..GEN..CBU200212-201106

7.00-16-12,RIB

10 parts on this diagram · 2 diagrams in section
