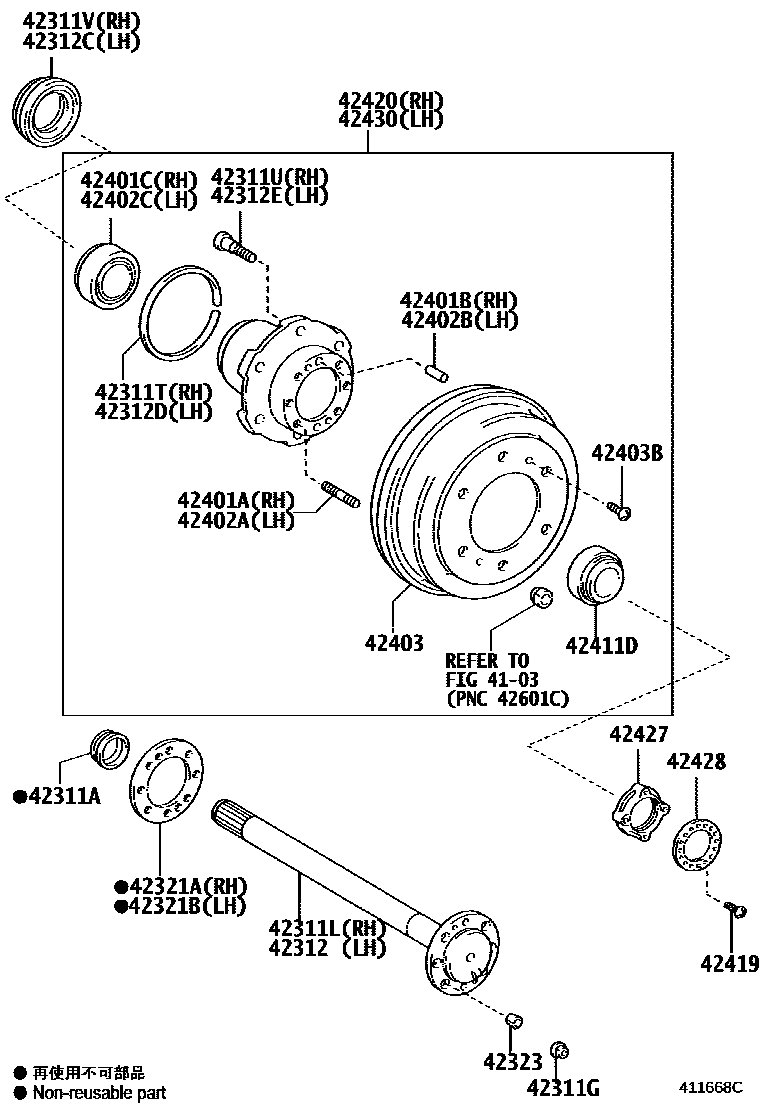

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1 0004 1 0005 1 0007 1W/O(ABS) 0008 1 0009 1 0010 1 0011 1 0012 1 0014 1 0015 1 0017 1 0018 1 0019 1

4103

42311SHAFT, REAR AXLE

main42311-37100iXZU320200212-200610

main42311-37120iXZU337,347..80T200212-200901

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90033-11032iXZU337,347..80T200212-200901

main90310-38033iWU300,340..SA200304-201106

main90310-38033iBU303,343,WU300,340..(48T,55T)..(GCC,GEN)200212-200610

10.5INCHES DIFFERENTIAL

main90310-40001iXZU349..6F;XZU309..IV3200610-202310

main90310-40001iBU300,340200209-200612

12INCHES DIFFERENTIAL

42311GNUT(FOR REAR AXLE SHAFT)

main90179-10067iWU342,352..WT..(DCRTP,DCRTR)200212-202310

main90179-10067iBU30#,34#,WU300,340,XZU342..WT..(ARL,GCC,GEN,IDN)200209-200612

12INCHES DIFFERENTIAL

main90179-10067iBU303,343,WU300,340..(48T,55T)..(GCC,GEN)200209-200612

10.5INCHES DIFFERENTIAL

42311LSHAFT, REAR AXLE, RH

main42311-0W010iBU303,WU300..T3200209-202004

sub42311-F1010

main42311-0W020iBU343..IDN200209-202004

sub42311-F1020

main42311-0W030iWU340,XZU342..IDN200209-202004

sub42311-F1030

main42311-37080iBU303,343,WU300,340..55T..(GCC,GEN)200212-200610

10.5INCHES DIFFERENTIAL

main42311-37080iWU300,340..55T..(GCC,GEN)200304-201106

main42311-37090iBU303,WU300..ST..TS200212-200610

10.5INCHES DIFFERENTIAL

main42311-37090iWU30#..ST..TS200610-201106

main42311-37100iXZU327200610-200901

main42311-37110iXZU307,337..55T,65T200610-201106

main42311-37110iBU303,343,WU300,340,XZU30#,330,345..(55T,65T)..(ARL,GCC,GEN,TAIW)200212-200610

12INCHES DIFFERENTIAL

main42311-F1010iXZU309..IV3202005-202310

main42311-F1020iXZU349..WT..DCRTH..IV8202005-202310

main42311-F1030iXZU359;XZU349..5F..(75T,85T)202005-202310

42311TRING, SNAP(FOR REAR AXLE SHAFT RH)

main90520-99065iBU303,WU300..T3200209-202310

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02024iBU303,WU300..T3200209-201612

main90942-02045iWU342..DCRTH;WU342..75T..DCRTJ200209-201612

main90942-02071iXZU337,347..80T200209-201612

main90942-T2002iXZU349..5F..IV3;XZU349,359..(65T,85T)..IV8201612-202310

main90942-T2004iXZU349,359..75T..DCRTJ201612-202310

main90942-T2006iXZU309,349..ST..IV8201612-202310

42311VSEAL, OIL(FOR REAR AXLE SHAFT RH)

main90033-11031iXZU337,347..80T200212-200901

main90033-11038iWU342,352..85T200209-202310

main90311-75003iXZU309,349..ST..IV8200209-202310

main90311-78001iWU300,340..SA200212-202310

main90311-82001iWU342,352..65T..DCRTP200209-202310

42312SHAFT, REAR AXLE, LH

main42311-0W010iWU302..DCRTH..T3200209-202004

sub42311-F1010

main42311-0W020iWU342..DCRTH200209-202004

sub42311-F1020

main42311-0W030iWU340,XZU342..IDN200209-202004

sub42311-F1030

main42311-37080iWU300,340..SA200304-201106

main42311-37080iBU303,343,WU300,340..55T..(GCC,GEN)200212-200610

10.5INCHES DIFFERENTIAL

main42311-37090iWU30#..ST..TS200610-201106

main42311-37090iBU303,WU300..ST..TS200212-200610

10.5INCHES DIFFERENTIAL

main42311-37100iXZU327200610-200901

main42311-37110iBU30#,34#,WU300,340,XZU300,330..(55T,65T)..(ARL,GCC,GEN,TAIW)200212-200610

12INCHES DIFFERENTIAL

main42311-37110iXZU307,337..55T,65T200610-201106

main42311-F1010iXZU309..IV3202005-202310

main42311-F1020iXZU349..WT..DCRTH..IV8202005-202310

main42311-F1030iXZU349,359..75T..DCRTJ202005-202310

main42311-F1040iXZU359..85T;XZU349..5F..IV3202005-202310

42312CSEAL, OIL(FOR REAR AXLE SHAFT LH)

main90033-11031iXZU330,340..80T200212-200901

main90033-11038iWU342..75T..DCRTJ200209-202310

main90311-75003iXZU309,349..ST..IV8200209-202310

main90311-78001iWU30#,34#..GCC,GEN200212-202310

main90311-82001iWU342..DCRTH200209-202310

42312DRING, SNAP(FOR REAR AXLE SHAFT LH)

main90520-99065iXZU309,349..ST..IV8200209-202310

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02025iWU302..DCRTP200209-201612

main90942-02046iBU343..IDN;WU340,XZU342..75T200209-201612

main90942-02072iXZU307,327,337..55T,65T200209-201612

main90942-T2003iWU342,352..65T,85T201612-202310

main90942-T2005iWU342,352..75T201612-202310

main90942-T2007iXZU309,349..ST..IV8201612-202310

42321AGASKET, REAR AXLE SHAFT, RH

main42321-0W010iXZU349..6F200912-202310

main42321-0W020iXZU309..IV3200912-202310

main42321-36050iBU303,343,WU300..IDN200209-201005

main42321-37020iWU340,XZU342;BU30#,34#,WU300,XZU300,320,330..(48T,55T,65T)..(ARL,GCC,GEN,SA,TAIW)200209-201106

42321BGASKET, REAR AXLE SHAFT, LH

main42321-0W010iXZU349..6F200912-202310

main42321-0W020iXZU309,349..DCRTH..IV8200912-202310

main42321-36050iWU302,342..DCRTH..T3200209-201005

main42321-37020iWU342..DCRTJ..IDN200209-201106

42323WASHER, CONE (FOR REAR AXLE SHAFT)

main42323-36010iWU342..(DCRTH,DCRTJ)..IDN200304-202310

main42323-36010iBU30#,34#,WU300,340,XZU300,320,330,342..(55T,65T,75T)..(ARL,GCC,GEN,IDN,TAIW)200209-200612

12INCHES DIFFERENTIAL

main42323-36010iBU303,343,WU300,340..(48T,55T)..(GCC,GEN)200209-200612

10.5INCHES DIFFERENTIAL

42401ABOLT, STUD (FOR REAR AXLE HUB RH)

main90031-01163iXZU330,340..80T200212-200901

main90116-10191iWU302,342..ST..DCRTP200304-202310

main90116-10191iBU30#,34#,WU300,340,XZU300,320,330,342..(55T,65T,75T)..(ARL,GCC,GEN,IDN,TAIW)200209-200612

12INCHES DIFFERENTIAL

main90116-10191iBU303,343,WU300,340..(48T,55T)..(GCC,GEN)200209-200612

10.5INCHES DIFFERENTIAL

42401BPIN, STRAIGHT (FOR REAR AXLE HUB RH)

main90250-10055iWU300,340..SA200209-202310

42401CBEARING (FOR REAR AXLE HUB INNER RH)

main90033-66030iXZU337,347..80T200212-200901

main90033-66031iXZU359..85T;XZU349..5F..IV3200209-202310

main90366-60012iWU30#,34#..GCC,GEN200212-202310

main90368-57010iXZU309,349..ST..IV8200209-202310

main90368-63001iBU343..IDN200209-202310

42402ABOLT, STUD (FOR REAR AXLE HUB LH)

main90031-01163iXZU337,347..80T200212-200901

main90116-10191iWU302..DCRTH..T3200304-202310

main90116-10191iBU303,343,WU300,340,XZU30#,320,330,345..(55T,65T)..(ARL,GCC,GEN,TAIW)200209-200612

12INCHES DIFFERENTIAL

main90116-10191iBU303,WU300..T3200209-200612

10.5INCHES DIFFERENTIAL

42402BPIN, STRAIGHT (FOR REAR AXLE HUB LH)

main90250-10055iWU302,342..(DCRTH,DCRTJ)..IDN200209-202310

42402CBEARING (FOR REAR AXLE HUB INNER LH)

main90033-66030iXZU330,340..80T200212-200901

main90033-66031iWU342,352..85T200209-202310

main90366-60012iWU30#,34#..GCC,GEN200212-202310

main90368-57010iWU302..DCRTH..T3200209-202310

main90368-63001iWU342,352..65T..DCRTP200209-202310

42403DRUM SUB-ASSY, REAR BRAKE

main42431-0W010iXZU349,359..75T..DCRTJ200209-202310

main42431-0W020iWU342..75T..DCRTJ200209-202310

main42431-37030iXZU349..WT..DCRTH..IV8200612-202310

main42431-37070iXZU305..T4200212-200610

main42431-37080iBU303,343,WU300,340,XZU30#,320,330,345..(48T,55T,65T)..(ARL,GCC,GEN,TAIW)..(T3,TS)200212-201106

main42431-37101iXZU330,340..80T200212-200410

main43512-0W050iWU302,342..ST..DCRTP200209-202310

42403BBOLT, SET (FOR REAR BRAKE DRUM SETTING)

main90113-10035iWU300..T3200209-202310

42411DBEARING, TAPERED ROLLER (FOR REAR AXLE OUTER BEARING)

main90033-66031iXZU337,347..80T200212-200901

main90366-55054iBU303,343,WU300,340,XZU30#,320,330,345..(48T,55T,65T)..(ARL,GCC,GEN,TAIW)200212-202310

main90368-52043iBU303,343,WU300..IDN200209-202310

42419SCREW, REAR AXLE BEARING LOCK NUT

main90119-06199iXZU330,340..80T200212-200901

main93311-16012iBU300,340200209-202310

42420HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, RH

main42420-09010iWU302..DCRTP200912-201612

sub42420-09011

main42420-09011iWU302,342..ST201612-202310

main42420-09020iWU342..65T..DCRTJ..IDN200908-201612

sub42420-09021

main42420-09021iWU342,352..75T201612-202310

main42420-09030iWU342,352..85T200912-202201

sub42420-09031

main42420-09031iXZU349..6F202201-202310

main42420-09040iXZU349..WT..DCRTH..IV8201612-202310

main42420-39066iWU300,340..SA200304-200812

main42420-39076iXZU305..T4200312-200610

W(ABS)

main42420-39086iXZU305,345..T3200312-200610

W(ABS)

main42420-39106iWU340..65T..GEN;WU302,342..DCRTJ..GEN200610-201106

main42420-39106iXZU30#,320,330,345..(55T,65T)..T3200212-200610

W/O(ABS);12INCHES DIFFERENTIAL

main42420-39165iXZU305..T4200312-200610

main42420-39215iXZU307,327,337..55T,65T200610-200801

sub42420-39106

main42420-39245iWU30#..ST..TS200212-201106

main42420-39255iBU303,343,WU300,340..55T..(GCC,GEN)200212-201106

main42420-39265iWU302..DCRTH..T3200209-201005

main42420-39275iWU342..DCRTH200209-201612

sub42420-09040

main42420-39285iWU340,XZU342..65T200209-200907

main42420-39295iWU342..75T..DCRTJ200209-201005

main42430-39175iXZU337,347..80T200610-200901

42427NUT, REAR AXLE BEARING LOCK

main42427-0W010iXZU309,349..DCRTH..IV8200711-202310

RH

main42427-0W020iWU302,342..DCRTH..T3200711-202310

LH

main42427-0W030iWU342,352..75T..(DCRTP,DCRTR)200711-202310

RH

main42427-0W040iWU342,352..75T..(DCRTP,DCRTR)200711-202310

LH

main42427-36030iBU303,343,WU300..IDN200209-200711

RH

main42427-37020iWU340,XZU342..IDN200209-201708

RH

main42427-37020iWU300,340..SA200212-201106

main42427-37030iXZU337,347..80T200212-200901

main42427-37040iBU303,343,WU300..IDN200209-200711

LH

main42427-37050iWU342..85T200209-201708

LH

main42427-F1010iXZU359..85T;XZU349..5F..IV3201708-202310

RH

main42427-F1020iXZU359..85T;XZU349..5F..IV3201708-202310

LH

42428PLATE, REAR AXLE LOCK NUT

main42428-36020iWU302,342..(DCRTH,DCRTJ)..IDN200209-202310

main42428-37010iXZU337,347..80T200212-200901

NO.1

main42428-37030iXZU330,340..80T200212-200901

NO.2

main42428-F1010iWU342,352..85T201708-202310

42430HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, LH

main42430-09010iWU302..DCRTP200912-201612

sub42430-09011

main42430-09011iXZU309..IV3201612-202310

main42430-09020iWU342..75T..(DCRTP,DCRTR)200908-201612

sub42430-09021

main42430-09021iWU342,352..75T201612-202310

main42430-09030iWU342,352..85T200912-202201

sub42430-09031

main42430-09031iWU342,352..85T202201-202310

main42430-09040iXZU349..WT..DCRTH..IV8201612-202310

main42430-39066iWU300,340..SA200304-200812

main42430-39076iXZU305..T4200312-200610

W(ABS)

main42430-39086iXZU305,345..T3200312-200610

W(ABS)

main42430-39106iXZU307,327,337..55T,65T200610-201106

main42430-39106iBU303,343,WU300,340..WT..(GCC,GEN)200212-200610

W/O(ABS);12INCHES DIFFERENTIAL

main42430-39165iXZU305..T4200312-200610

main42430-39185iXZU337,347..80T200610-200901

main42430-39255iXZU307,327,337..55T,65T200610-200801

sub42430-39106

main42430-39275iWU30#..ST..TS200212-201106

main42430-39285iBU303,343,WU300,340..55T..(GCC,GEN)200212-201106

main42430-39295iBU303,WU300..T3200209-201005

main42430-39305iWU342..65T..DCRTP200209-201612

sub42430-09040

main42430-39315iWU342..65T..DCRTJ..IDN200209-200907

main42430-39325iWU340,XZU342..75T200209-201005

29 parts on this diagram · 16 diagrams in section
