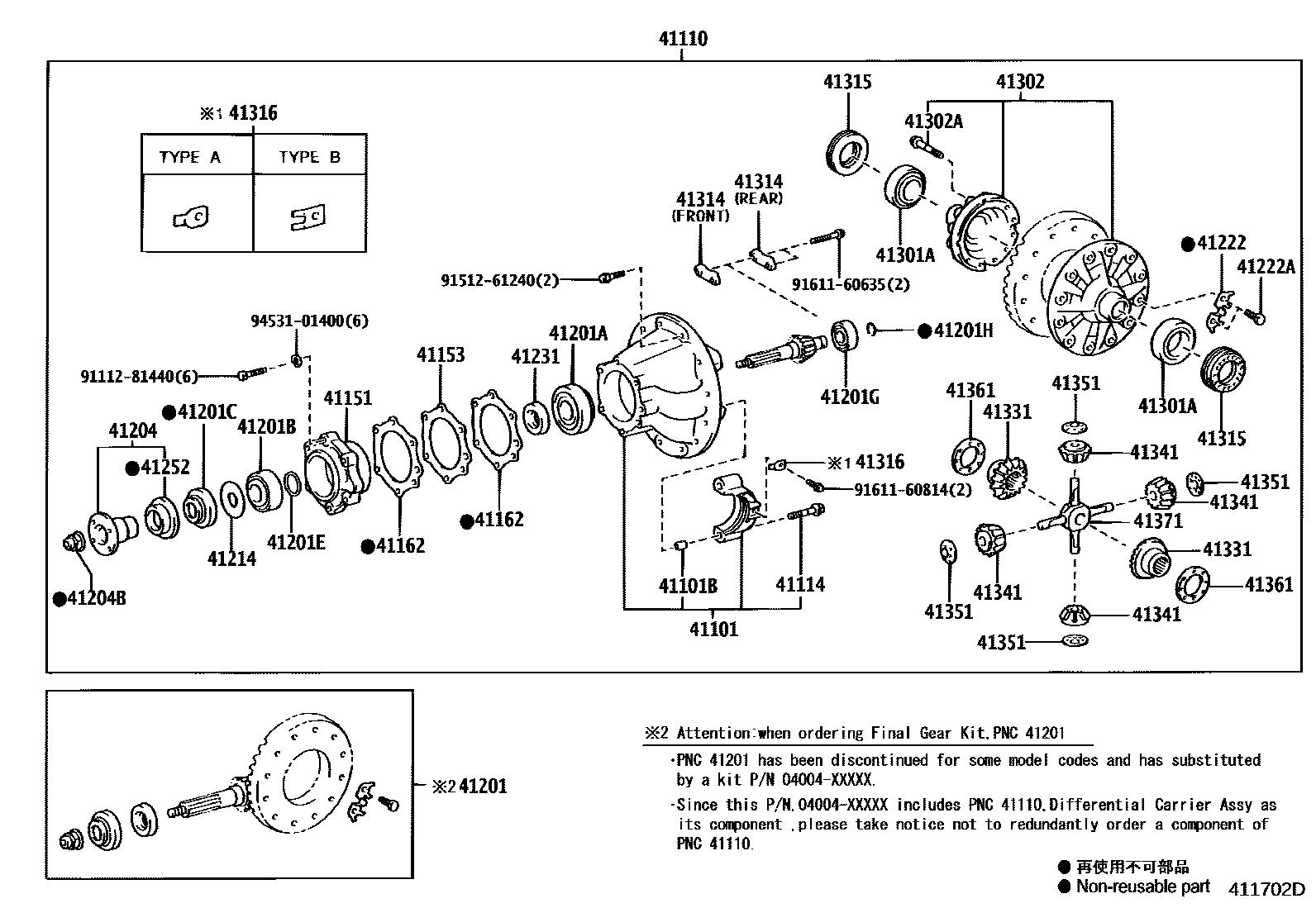

REAR AXLE HOUSING & DIFFERENTIAL

0001 112 INCHES DIFFERENTIAL 0002 113 INCHES DIFFERENTIAL 0003 110.5 INCHES DIFFERENTIAL 0005 112 INCHES DIFFERENTIAL 0007 112 INCHES DIFFERENTIAL 0009 112 INCHES DIFFERENTIAL 0011 110.5 INCHES DIFFERENTIAL 0013 113 INCHES DIFFERENTIAL 0014 1 0015 1 0016 1W(LSD) 0017 113 INCHES DIFFERENTIAL 0018 112 INCHES DIFFERENTIAL 0020 110.5 INCHES DIFFERENTIAL 0022 112 INCHES DIFFERENTIAL 0023 110.5 INCHES DIFFERENTIAL 0025 113 INCHES DIFFERENTIAL 0027 113 INCHES DIFFERENTIAL 0028 112 INCHES DIFFERENTIAL

41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR

main41101-36040iBU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW)200209-200311

12INCHES DIFFERENTIAL

main41101-37010iWU300,340..SA200212-200802

10.5INCHES DIFFERENTIAL

main41101-37010iWU30#,340..(48T,55T)..(DCRTH,DSL)..(GCC,GEN)200610-201106

main41101-37040iXZU359..85T202203-202310

13INCHES DIFFERENTIAL,FINAL GEAR RATIO=5.857

main41101-37040iWU342,352..VBODY201708

*FGR=41:7=5.857

main41101-37050iWU342,352..VBODY201708-202004

*FGR=45:7=6.428

sub41101-F1010

main41101-37050iWU342..85T..T3200209-202004

sub41101-F1010

main41101-37060iBU300,340200311-200905

sub41101-37061

main41101-37061iXZU309..IV3200904-202310

main41101-F1010iWU342,352..85T202005-202310

41101BPIN, RING (FOR REAR DIFFERENTIAL CARRIER)

main90253-22002iBU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW)200209-200311

12INCHES DIFFERENTIAL

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-0W030iBU343,WU340..65T..IDN200209-200311

*FGR=35:6=5.833

sub41110-37540

main41110-0W070iWU340,XZU342..75T200209-201005

*FGR=45:7=6.428

main41110-0W080iWU302,342..DCRTH..T3200612-201005

*FGR=37:8=4.625

main41110-0W100iWU342..DCRTH200612-201005

*FGR=41:8=5.125

main41110-0W110iWU342..65T..DCRTJ..IDN200612-201005

*FGR=35:6=5.833

main41110-0W130iXZU309..IV3200912-202310

*FGR=37:8=4.625

main41110-0W140iWU302..DCRTP200912-201612

*FGR=39:8=4.875

main41110-0W150iWU342..75T..DCRTR..IV3200912-202310

*FGR=41:8=5.125

main41110-0W160iWU342..65T..DCRTP;WU342..75T..DCRTR200912-201612

*FGR=43:8=5.375

main41110-0W170iWU342,352..75T..DCRTR200912

*FGR=39:7=5.571

main41110-0W180iWU342..75T..DCRTP200912

*FGR=37:6=6.167

main41110-0W190iWU342..75T..DCRTP200912-201612

*FGR=39:6=6.500

main41110-0W200iWU342,352..85T200912-202310

*FGR=45:7=6.428

main41110-0W210iWU342..85T200912-201205

*FGR=41:6=6.833

sub41110-0W211

main41110-0W211iWU342..85T..T3201205-202310

*FGR=41:6=6.833

main41110-0W230iWU342..75T..DCRTR201201-201612

*FGR=35:6=5.833

main41110-36471iWU300,340..WT..GCC200212-200311

*FGR=39:7=5.571,12INCHES DIFFERENTIAL

sub41110-37530

main41110-36501iBU303,343..WT..GEN200212-200311

*FGR=39:6=6.500

sub41110-37560

main41110-37100iWU300..ST..TS200212-200802

*FGR=41:8=5.125

sub41110-37101

main41110-37110iWU300,340..SA200212-200802

*FGR=43:8=5.375

sub41110-37111

main41110-37120iBU303..ST..TS;WU300,340..WT..GCC200212-200610

*FGR=39:7=5.571,10.5INCHES DIFFERENTIAL

sub41110-37620

main41110-37140iBU300..T4;XZU300..55T200212-200311

*FGR=41:8=5.125

sub41110-37360

main41110-37150iXZU300..65T;BU300,340,XZU342..(55T,65T)..T3200209-200311

*FGR=43:8=5.375

sub41110-37370

main41110-37170iXZU320,330..65T200212-200311

*FGR=35:6=5.833

sub41110-37390

main41110-37180iXZU330,340..80T200212-200311

*FGR=37:6=6.167

sub41110-37400

main41110-37190iBU303,343..55T200212-200610

*FGR=35:6=5.833

sub41110-37630

main41110-37220iWU300,340..SA200610-201106

*FGR=41:8=5.125

sub41110-37221

main41110-37240iBU303,WU300..T3200209-200311

*FGR=43:8=5.375

sub41110-37520

main41110-37350iXZU307..55T200610-200901

*FGR=39:8=4.875

main41110-37360iXZU300..55T200311-200901

*FGR=41:8=5.125

main41110-37370iBU300,340..T3200311-200612

*FGR=43:8=5.375

main41110-37380iXZU305..T4200312-201106

*FGR=39:7=5.571

main41110-37390iWU302,342..55T200311-201106

*FGR=35:6=5.833

main41110-37400iXZU330,340..80T200311-201106

*FGR=37:6=6.167

main41110-37410iWU34#..65T..GEN200610-201106

*FGR=39:6=6.500

main41110-37520iBU303,WU300..T3200311-200612

*FGR=43:8=5.375

main41110-37530iWU300,340..WT..GCC200311-200610

*FGR=39:7=5.571

main41110-37540iBU343,WU340..65T..IDN200311-200612

*FGR=35:6=5.833

main41110-37560iBU303,343..WT..GEN200311-200610

*FGR=39:6=6.500

main41110-37810iWU300,340..SA200610-201106

*FGR=43:8=5.375

sub41110-37811

main41110-37820iWU300..ST..GEN;WU300,340..55T..(GCC,GEN)200610-201106

*FGR=39:7=5.571

sub41110-37821

main41110-37830iWU300,340..55T..GEN200610-201106

*FGR=35:6=5.833

sub41110-37831

main41110-F1070iWU342..85T..T3201703-202310

*FGR=41:6=6.833,W(LSD)

main41110-F1080iXZU349..6F201708-202310

*FGR=41:7=5.857

41114BOLT, REAR DIFFERENTIAL BEARING CAP

main90031-05043iXZU307,327,337,347200209-201108

subSZ105-16030

main90105-16009iBU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW)200209-200311

12INCHES DIFFERENTIAL

main90105-16022iWU30#,340..(48T,55T)..(DCRTH,DSL)..(GCC,GEN)200610-201106

main90105-16022iBU303,343,WU300,340..(48T,55T)..(GCC,GEN)200212-200802

10.5INCHES DIFFERENTIAL

mainSZ10516030iWU342..85T..T3201108-202007

mainSZ10516030iWU302,352;WU342..VBODY;WU342..48T,65T,75T201108

(J)

mainSZ10516030iXZU309,349,359..IV1,IV8202203-202310

13INCHES DIFFERENTIAL,FINAL GEAR RATIO=5.857

mainSZ105T0019iXZU359..85T;XZU349..5F..IV3202203-202310

mainSZ105T0019iWU342,352..85T202008

(L)

41151CAGE, DIFFERENTIAL DRIVE PINION BEARING

main41151-0W010iXZU309,349,359..5F..(IV1,IV8)200612-202310

main41151-0W020iXZU349..5F..IV3200912-202310

main41151-36010iBU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW)200209-200311

main41151-37020iWU340,XZU342..75T200209-201005

main41151-37030iWU340..65T..GEN;WU302,342..DCRTJ..GEN200311-201008

sub41151-37031

main41151-37031iWU340..65T;WU302,342..DCRTJ201008-201106

41153SHIM, DIFFERENTIAL DRIVE PINION CAGE

main41153-36010iBU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW)200209-200311

T=0.10

main41153-36020iBU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW)200209-200311

T=0.15

main41153-36030iBU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW)200209-200311

T=0.25

main41153-36040iBU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW)200209-200311

T=0.45

main41153-37050iXZU349..IV3;XZU359..85T200209-201005

T=0.30

main41153-37060iWU340,XZU342..75T200209-201005

T=0.40

main41153-37070iXZU349..IV3;XZU359..85T200209-201005

T=0.45

main41153-37080iWU342,352..85T200209-201005

T=0.50

main41153-37090iXZU309,349,359..5F..(IV1,IV8)200311-202310

T=0.30

main41153-37100iXZU309,349,359..5F..(IV1,IV8)200311-202310

T=0.40

main41153-37110iWU302,342..(48T,65T)..(DCRTH,DCRTJ)..IDN200311-202310

T=0.45

main41153-37120iXZU309,349,359..5F..(IV1,IV8)200311-202310

T=0.50

41162GASKET, DIFFERENTIAL DRIVE PINION COVER

main41162-36010iBU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW)200209-200311

41201FINAL GEAR KIT, DIFFERENTIAL, REAR

main41201-80146iWU340..CBU200304-200802

*FGR=43:8=5.375

sub41201-80620

main41201-80148iBU303,343..55T200212-200610

*FGR=35:6=5.833

sub41201-80640

main41201-80151iWU340..SA200304-200802

*FGR=41:8=5.125

sub41201-80611

sub41204-37090

sub41204-37100

main41201-80153iXZU320,330..65T200212-200309

*FGR=35:6=5.833

sub04004-16437

main41201-80209iWU340,XZU342..75T200209-200612

*FGR=45:7=6.428

main41201-80215iXZU307..55T200610-200612

*FGR=39:8=4.875

sub41201-80553

main41201-80216iXZU300..55T200311-200612

*FGR=41:8=5.125

sub41201-80550

main41201-80217iXZU300..65T200311-200612

*FGR=43:8=5.375

sub41201-80548

main41201-80218iXZU327,337;WU302,342,XZU347..55T,80T200311-200612

*FGR=39:7=5.571

sub41201-80547

main41201-80287iWU302,342..55T200311-200612

*FGR=35:6=5.833

sub41201-80549

main41201-80293iWU34#..65T..GEN200610-200612

*FGR=37:6=6.167

sub41201-80554

main41201-80351iWU34#..65T..GEN200311-200612

*FGR=39:6=6.500

sub41201-80555

main41201-80365iWU30#..ST..TS200610-200901

*FGR=41:8=5.125

sub41201-80611

sub41204-37090

sub41204-37100

main41201-80369iWU300,340..GCC;WU30#..ST..GEN200610-200901

*FGR=43:8=5.375

sub41201-80620

main41201-80373iXZU359..85T;XZU349..5F..IV3200612-202310

*FGR=45:7=6.428

main41201-80414iWU300,340..SA200610-200901

*FGR=39:7=5.571

sub41201-80630

main41201-80485iWU300,340..55T..GEN200610-200901

*FGR=35:6=5.833

sub41201-80640

main41201-80547iXZU327,337,347200612-201106

*FGR=39:7=5.571

sub41201-80609

main41201-80547iWU342..75T..DCRTR200912-201504

*FGR=39:7=5.571,AXLE CODE=A07A

sub41201-80609

main41201-80548iWU342..65T..DCRTP;WU342..75T..DCRTR200912-201504

*FGR=43:8=5.375,AXLE CODE=A02A

sub41201-80608

main41201-80549iWU342..65T200612-201504

*FGR=35:6=5.833

sub41201-80612

main41201-80549iWU342..75T..DCRTR201201-201504

*FGR=35:6=5.833,AXLE CODE=A03A

sub41201-80612

main41201-80550iXZU307..65T200612-201005

*FGR=41:8=5.125

sub41201-80607

main41201-80550iWU342..65T..DCRTP200912-201504

*FGR=41:8=5.125,AXLE CODE=A01A

sub41201-80607

main41201-80551iWU302,342..DCRTH..T3200612-201005

*FGR=37:8=4.625

sub41201-80650

main41201-80553iXZU307..55T200612-201005

*FGR=39:8=4.875

sub41201-80606

main41201-80553iWU302..DCRTP200912-201504

*FGR=39:8=4.875,AXLE CODE=A08A

sub41201-80606

main41201-80554iWU34#..65T..GEN200612-201106

*FGR=37:6=6.167

sub41201-80614

main41201-80554iWU342..75T..DCRTP200912-201504

*FGR=37:6=6.167,AXLE CODE=A05A

sub41201-80614

main41201-80555iWU34#..65T..GEN200612-201106

*FGR=39:6=6.500

sub41201-80613

main41201-80555iWU342..75T..DCRTP200912-201504

*FGR=39:6=6.500,AXLE CODE=A06A

sub41201-80613

main41201-80558iWU342,352..VBODY201708-202310

*FGR=41:7=5.587

main41201-80606iWU302201504-201612

*FGR=39:8=4.875,AXLE CODE=A08A

main41201-80607iWU342..65T..IV3201504

*FGR=41:8=5.125,AXLE CODE=A01A

main41201-80607iWU352..DCRTR..T3;WU342..WT..IV8..T3;WU342..75T..DCRTR..IV3201612-202310

*FGR=41:8=5.125

main41201-80608iWU342..65T;WU342..75T..DCRTR201504-201612

*FGR=43:8=5.375,AXLE CODE=A02A

main41201-80609iWU342,352..DCRTR..IV8..T3201708

*FGR=39:7=5.571

main41201-80609iWU342..75T..DCRTR..IV3201504

*FGR=39:7=5.571,AXLE CODE=A07A

main41201-80610iWU30#..ST..TS200901-201106

*FGR=41:8=5.125

sub41201-80611

sub41204-37100

main41201-80612iWU352..DCRTP201708

*FGR=35:6=5.833

main41201-80612iWU342..65T;WU342..75T..DCRTR201504-201612

*FGR=35:6=5.833,AXLE CODE=A03A

main41201-80613iWU342..75T..DCRTP201504-201612

*FGR=39:6=6.500,AXLE CODE=A06A

main41201-80614iWU342..75T..DCRTP201504

*FGR=37:6=6.167,AXLE CODE=A05A

main41201-80620iWU300,340..GCC;WU30#..ST..GEN200901-201106

*FGR=43:8=5.375

sub41201-80621

sub41204-36090

sub41204-37100

main41201-80630iWU300,340..55T;WU300..ST..GEN200901-201106

*FGR=39:7=5.571

sub41201-80631

sub41204-36090

sub41204-37100

main41201-80640iWU300,340..55T..GEN200901-201106

*FGR=35:6=5.833

sub41201-80641

sub41204-36090

sub41204-37100

main41201-80650iWU302..DCRTP200912-201504

*FGR=37:8=4.625,AXLE CODE=A09A

sub41201-80651

main41201-80651iXZU309..IV3201708-202310

*FGR=37:8=4.625

main41201-80651iWU302..IV3201504

*FGR=37:8=4.625,AXLE CODE=A09A

main41201-80660iWU342..85T200912-201205

*FGR=41:6=6.833

sub41201-80661

main41201-80661iXZU349..6F201205-202310

*FGR=41:6=6.833

41201ABEARING (FOR REAR DRIVE PINION REAR)

main90033-66035iWU340,XZU342..75T200209-201108

subSZ366-55011

main90366-40100iWU30#,340..(48T,55T)..(DCRTH,DSL)..(GCC,GEN)200610-201106

main90366-40100iBU303,343,WU300,340..(48T,55T)..(GCC,GEN)200212-200802

10.5INCHES DIFFERENTIAL

main90366-49001iBU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW)200209-200311

12INCHES DIFFERENTIAL

mainSZ36655011iWU342,352..85T201108-202310

mainSZ36655013iXZU349..IV3;XZU359..85T202310

41201BBEARING (FOR REAR DRIVE PINION FRONT)

main90033-65002iXZU309..IV3200311-202310

NO.3

main90033-66038iWU342..85T200311-201108

NO.1

subSZ366-45013

main90033-66038iWU340,XZU342..75T200209-201005

subSZ366-45013

main90033-66040iWU340..65T..GEN;WU302,342..DCRTJ..GEN200311-202310

NO.2

main90366-35108iBU303,343,WU300,340..(48T,55T)..(GCC,GEN)200212-200802

10.5INCHES DIFFERENTIAL

main90366-35108iWU30#,340..(48T,55T)..(DCRTH,DSL)..(GCC,GEN)200610-201106

main90366-45001iBU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW)200209-200311

12INCHES DIFFERENTIAL

mainSZ36645013iXZU309..IV3201108-202310

NO.1

mainSZ36645013iXZU349..5F..IV3202310

41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)

main90033-11039iWU340..65T..GEN;WU302,342..DCRTJ..GEN200209-202310

main90311-48019iBU303,343,WU300,340..(48T,55T)..(GCC,GEN,SA)200212-200405

10.5INCHES DIFFERENTIAL

sub90311-48024

main90311-48024iWU30#,340..(48T,55T)..(DCRTH,DSL)..(GCC,GEN)200610-201106

main90311-48024iWU300,340..SA200405-200802

10.5INCHES DIFFERENTIAL

main90311-58010iBU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW)200209-200311

12INCHES DIFFERENTIAL

41201ESHIM (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST)

main90564-35019iBU303,343,WU300,340..(48T,55T)..(GCC,GEN)200212-201106

T=1.80

main90564-35020iWU30#,340..(48T,55T)..(DCRTH,DSL)..(GCC,GEN)200212-201106

T=1.82

main90564-35021iWU300,340..SA200212-201106

T=1.84

main90564-35022iWU300,340..SA200212-201106

T=1.86

main90564-35023iWU300,340..SA200212-201106

T=1.88

main90564-35024iWU300,340..SA200212-201106

T=1.90

main90564-35025iBU303,343,WU300,340..(48T,55T)..(GCC,GEN)200212-201106

T=2.00

main90564-35026iWU30#,340..(48T,55T)..(DCRTH,DSL)..(GCC,GEN)200212-201106

T=2.10

main90564-35027iWU30#,340..(48T,55T)..(DCRTH,DSL)..(GCC,GEN)200212-201106

T=2.20

main90564-35028iWU300,340..SA200212-201106

T=2.30

main90564-35029iWU300,340..SA200212-201106

T=2.40

main90564-35030iBU303,343,WU300,340..(48T,55T)..(GCC,GEN)200212-201106

T=2.50

main90564-35031iWU300,340..SA200212-201106

T=2.60

main90564-35032iWU300,340..SA200212-201106

T=2.70

main90564-35033iWU300,340..SA200212-201106

T=2.80

main90564-35034iWU300,340..SA200212-201106

T=2.90

main90564-35035iWU30#,340..(48T,55T)..(DCRTH,DSL)..(GCC,GEN)200212-201106

T=3.00

main90564-35036iWU300,340..SA200212-201106

T=1.81

main90564-35037iBU303,343,WU300,340..(48T,55T)..(GCC,GEN)200212-201106

T=1.83

main90564-35038iWU300,340..SA200212-201106

T=1.85

main90564-35039iWU300,340..SA200212-201106

T=1.87

main90564-35040iWU300,340..SA200212-201106

T=1.89

main90564-45020iXZU300..65T;BU300,340..T3200212-200311

T=1.80,12INCHES DIFFERENTIAL

main90564-45020iBU303,343,WU300,340,XZU342..(48T,65T)..IDN200209-200311

T=1.80

main90564-45021iXZU300..65T;BU300,340..T3200212-200311

T=1.82,12INCHES DIFFERENTIAL

main90564-45021iBU303,343,WU300,340,XZU342..(48T,65T)..IDN200209-200311

T=1.82

main90564-45022iBU303,343,WU300,340,XZU342..(48T,65T)..IDN200209-200311

T=1.84

main90564-45022iXZU300..65T;BU300,340..T3200212-200311

T=1.84,12INCHES DIFFERENTIAL

main90564-45023iBU303,343,WU300,340,XZU342..(48T,65T)..IDN200209-200311

T=1.86

main90564-45023iXZU300..65T;BU300,340..T3200212-200311

T=1.86,12INCHES DIFFERENTIAL

main90564-45024iBU303,343,WU300,340,XZU342..(48T,65T)..IDN200209-200311

T=1.88

main90564-45024iXZU300..65T;BU300,340..T3200212-200311

T=1.88,12INCHES DIFFERENTIAL

main90564-45025iBU303,343,WU300,340,XZU342..(48T,65T)..IDN200209-200311

T=1.90

main90564-45025iXZU300..65T;BU300,340..T3200212-200311

T=1.90,12INCHES DIFFERENTIAL

main90564-45026iBU303,343,WU300,340,XZU342..(48T,65T)..IDN200209-200311

T=2.00

main90564-45026iXZU300..65T;BU300,340..T3200212-200311

T=2.00,12INCHES DIFFERENTIAL

main90564-45027iBU303,343,WU300,340,XZU342..(48T,65T)..IDN200209-200311

T=2.10

main90564-45027iXZU300..65T;BU300,340..T3200212-200311

T=2.10,12INCHES DIFFERENTIAL

main90564-45028iXZU300..65T;BU300,340..T3200212-200311

T=2.20,12INCHES DIFFERENTIAL

main90564-45028iBU303,343,WU300,340,XZU342..(48T,65T)..IDN200209-200311

T=2.20

main90564-45029iBU303,343,WU300,340,XZU342..(48T,65T)..IDN200209-200311

T=2.30

main90564-45029iXZU300..65T;BU300,340..T3200212-200311

T=2.30,12INCHES DIFFERENTIAL

main90564-45030iBU303,343,WU300,340,XZU342..(48T,65T)..IDN200209-200311

T=2.40

main90564-45030iXZU300..65T;BU300,340..T3200212-200311

T=2.40,12INCHES DIFFERENTIAL

main90564-45031iBU303,343,WU300,340,XZU342..(48T,65T)..IDN200209-200311

T=2.50

main90564-45031iXZU300..65T;BU300,340..T3200212-200311

T=2.50,12INCHES DIFFERENTIAL

main90564-45032iXZU300..65T;BU300,340..T3200212-200311

T=2.60,12INCHES DIFFERENTIAL

main90564-45032iBU303,343,WU300,340,XZU342..(48T,65T)..IDN200209-200311

T=2.60

main90564-45033iXZU300..65T;BU300,340..T3200212-200311

T=2.70,12INCHES DIFFERENTIAL

main90564-45033iBU303,343,WU300,340,XZU342..(48T,65T)..IDN200209-200311

T=2.70

main90564-45034iBU303,343,WU300,340,XZU342..(48T,65T)..IDN200209-200311

T=2.80

main90564-45034iXZU300..65T;BU300,340..T3200212-200311

T=2.80,12INCHES DIFFERENTIAL

main90564-45035iXZU300..65T;BU300,340..T3200212-200311

T=2.90,12INCHES DIFFERENTIAL

main90564-45035iBU303,343,WU300,340,XZU342..(48T,65T)..IDN200209-200311

T=2.90

main90564-45036iXZU300..65T;BU300,340..T3200212-200311

T=3.00,12INCHES DIFFERENTIAL

main90564-45036iBU303,343,WU300,340,XZU342..(48T,65T)..IDN200209-200311

T=3.00

main90564-45037iBU30#,34#,WU300,340,XZU342..(48T,55T,65T)..(ARL,IDN)..T3200209-200311

T=3.10

main90564-45037iXZU300..65T200212-200311

T=3.10,12INCHES DIFFERENTIAL

main90564-45038iXZU300..65T200212-200311

T=3.20,12INCHES DIFFERENTIAL

main90564-45038iBU30#,34#,WU300,340,XZU342..(48T,55T,65T)..(ARL,IDN)..T3200209-200311

T=3.20

main90564-45039iBU30#,34#,WU300,340,XZU342..(48T,55T,65T)..(ARL,IDN)..T3200209-200311

T=3.30

main90564-45039iXZU300..65T200212-200311

T=3.30,12INCHES DIFFERENTIAL

main90564-45046iXZU300..65T;BU300,340..T3200212-200311

T=1.81,12INCHES DIFFERENTIAL

main90564-45046iBU303,343,WU300,340,XZU342..(48T,65T)..IDN200209-200311

T=1.81

main90564-45047iBU303,343,WU300,340,XZU342..(48T,65T)..IDN200209-200311

T=1.83

main90564-45047iXZU300..65T;BU300,340..T3200212-200311

T=1.83,12INCHES DIFFERENTIAL

main90564-45048iBU303,343,WU300,340,XZU342..(48T,65T)..IDN200209-200311

T=1.85

main90564-45048iXZU300..65T;BU300,340..T3200212-200311

T=1.85,12INCHES DIFFERENTIAL

main90564-45049iBU303,343,WU300,340,XZU342..(48T,65T)..IDN200209-200311

T=1.87

main90564-45049iXZU300..65T;BU300,340..T3200212-200311

T=1.87,12INCHES DIFFERENTIAL

main90564-45050iXZU300..65T;BU300,340..T3200212-200311

T=1.89,12INCHES DIFFERENTIAL

main90564-45050iBU303,343,WU300,340,XZU342..(48T,65T)..IDN200209-200311

T=1.89

41201GBEARING, DIFFERENTIAL DRIVE PINION CYLINDLICAL ROLLER

main90033-65001iXZU349..5F..IV3200209-202310

main90365-25030iBU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW)200209-200311

41201HRING, DRIVE PINION CYLINDRICAL ROLLER BEARING LOCKING

main90035-20019iXZU349..5F..IV3200209-202310

main90035-20024iXZU309..IV3200311-202310

main90520-23034iBU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW)200209-200311

41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR

main41204-0W010iWU302,342..(48T,65T,75T)..(DCRTP,DCRTR)200612-201408

sub41204-F1010

main41204-0W020iWU342..85T200912-201408

sub41204-F1020

main41204-37010iBU303,343,WU300,340..(48T,55T)..(GCC,GEN)200212-200802

10.5INCHES DIFFERENTIAL

main41204-37020iBU303,WU300..T3;BU303,343,WU300,340..(55T,65T)..(GCC,GEN,IDN)200209-200311

12INCHES DIFFERENTIAL

main41204-37030iBU300,340,XZU300,320,330,34#..55T,65T,80T200209-200311

main41204-37040iWU30#,340..(48T,55T)..(DCRTH,DSL)..(GCC,GEN)200610-201106

main41204-37060iWU340,XZU342..75T200209-201005

main41204-37080iXZU342..65T200311-201106

main41204-37090iBU303,343,WU300,340..(48T,65T)..IDN200311-200612

12INCHES DIFFERENTIAL

main41204-F1010iXZU309,349,359..5F..(IV1,IV8)201408-202310

main41204-F1020iXZU349..5F..IV3201408-202310

41204BNUT (FOR REAR DRIVE PINION)

main90179-22003iBU303,343,WU300,340..(48T,55T)..(GCC,GEN)200212-200802

OD=29,10.5INCHES DIFFERENTIAL

main90179-22003iWU300,340..SA200610-200901

OD=29

main90179-22029iWU30#,340..(48T,55T)..(DCRTH,DSL)..(GCC,GEN)200901-201106

OD=43

main90179-24001iBU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW)200209-200311

12INCHES DIFFERENTIAL

main90179-30003iXZU349..5F..IV3202203-202310

41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL

main41214-36020iBU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW)200209-200311

12INCHES DIFFERENTIAL

main41214-37010iBU303,343,WU300,340..(48T,55T)..(GCC,GEN)200212-200802

10.5INCHES DIFFERENTIAL

main41214-37010iWU300,340..SA200610-201106

41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK

main41222-36020iWU30#,340..(48T,55T)..(DCRTH,DSL)..(GCC,GEN)200610-201106

main41222-36020iBU303,343,WU300,340..(48T,55T)..(GCC,GEN)200212-200802

10.5INCHES DIFFERENTIAL

main41222-36030iBU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW)200209-200311

12INCHES DIFFERENTIAL

41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)

main90031-01193iBU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW)200311-200612

sub90031-01203

main90031-01203iXZU309..IV3200612-202310

main90031-09055iXZU349,359..6F200209-202310

main90101-14315iWU300,340..SA200212-200802

10.5INCHES DIFFERENTIAL

main90101-14315iWU30#,340..(48T,55T)..(DCRTH,DSL)..(GCC,GEN)200610-201106

main90101-16015iBU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW)200209-200311

12INCHES DIFFERENTIAL

41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

main41231-36040iBU303,343,WU300,340..(48T,55T)..(GCC,GEN)200212-200802

10.5INCHES DIFFERENTIAL

main41231-36040iWU30#,340..(48T,55T)..(DCRTH,DSL)..(GCC,GEN)200610-201106

main41231-36050iBU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW)200209-200311

12INCHES DIFFERENTIAL

main41231-37220iWU340,XZU342..75T200209-201005

T=13.900

main41231-37230iXZU349..IV3;XZU359..85T200209-201005

T=13.925

main41231-37240iWU340,XZU342..75T200209-201005

T=13.950

main41231-37250iWU340,XZU342..75T200209-201005

T=13.975

main41231-37260iWU342,352..85T200209-201005

T=14.000

main41231-37270iWU342,352..85T200209-201005

T=14.025

main41231-37280iXZU349..IV3;XZU359..85T200209-201005

T=14.050

main41231-37290iXZU349..IV3;XZU359..85T200209-201005

T=14.075

main41231-37300iWU340,XZU342..75T200209-201005

T=14.100

main41231-37310iWU342,352..85T200209-201005

T=14.125

main41231-37320iWU340,XZU342..75T200209-201005

T=14.150

main41231-37330iWU342,352..85T200209-201005

T=14.175

main41231-37340iWU342..75T..DCRTJ200209-201005

T=14.200

main41231-37350iXZU349..IV3;XZU359..85T200209-201005

T=14.225

main41231-37360iWU340,XZU342..75T200209-201005

T=14.250

main41231-37370iXZU349..IV3;XZU359..85T200209-201005

T=14.275

main41231-37380iXZU349..IV3;XZU359..85T200209-201005

T=14.300

main41231-37390iWU342..75T..DCRTJ200209-201005

T=14.325

main41231-37400iWU340,XZU342..75T200209-201005

T=14.350

main41231-37410iXZU349..IV3;XZU359..85T200209-201005

T=14.375

main41231-37420iWU340..65T..GEN;WU302,342..DCRTJ..GEN200311-202310

T=14.400

main41231-37430iWU340..65T..GEN;WU302,342..DCRTJ..GEN200311-202310

T=14.425

main41231-37440iXZU309,349,359..5F..(IV1,IV8)200311-202310

T=14.450

main41231-37450iBU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW)200311-202310

T=14.475

main41231-37460iXZU309,349,359..5F..(IV1,IV8)200311-202310

T=14.500

main41231-37470iWU302,342..(48T,65T)..(DCRTH,DCRTJ)..IDN200311-202310

T=14.525

main41231-37480iBU303,343,WU300,340,XZU342..(48T,65T)..IDN200311-202310

T=14.550

main41231-37490iWU340..65T..GEN;WU302,342..DCRTJ..GEN200311-202310

T=14.575

main41231-37500iBU300,340200311-202310

T=14.600

main41231-37510iXZU309,349,359..5F..(IV1,IV8)200311-202310

T=14.625

main41231-37520iXZU307,327,337,347200311-202310

T=14.650

main41231-37530iBU300,340200311-202310

T=14.675

main41231-37540iXZU307,327,337,347200311-202310

T=14.700

main41231-37550iXZU307,327,337,347200311-202310

T=14.725

main41231-37560iXZU307,327,337,347200311-202310

T=14.750

main41231-37570iXZU307,327,337,347200311-202310

T=14.775

main41231-37580iXZU309,349,359..5F..(IV1,IV8)200311-202310

T=14.800

main41231-37590iWU340..65T..GEN;WU302,342..DCRTJ..GEN200311-202310

T=14.825

main41231-37600iXZU307,327,337,347200311-202310

T=14.850

main41231-37610iXZU307,327,337,347200311-202310

T=14.875

41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)

main37341-0W020iXZU309,349,359..5F..(IV1,IV8)200612-202310

main37341-89203iXZU305,345200209-201106

subS3734-11560

main41252-37020iWU300,340..SA200610-201106

main41252-37020iBU303,343,WU300,340..(48T,55T)..(GCC,GEN)200212-200802

10.5INCHES DIFFERENTIAL

main41252-37030iBU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW)200209-200311

12INCHES DIFFERENTIAL

41301ABEARING(FOR REAR DIFFERENTIAL CASE)

main90033-66039iWU342..75T..DCRTJ200209-202310

main90366-52004iBU303,343,WU300,340..(48T,55T)..(GCC,GEN)200212-200802

10.5INCHES DIFFERENTIAL

main90366-52004iWU300,340..SA200610-201106

main90366-55054iWU302,342..(48T,65T)..(DCRTH,DCRTJ)..IDN200311-201906

main90366-55089iWU302,342,352..48T,65T,75T201906-202310

main90366-60001iXZU300..55T;BU30#,WU300..WT..(ARL,GCC,GEN)..(T4,TS);BU343,WU340,XZU320,330,340..GCC,GEN,TAIW200212-200311

main90366-60001iXZU300..65T;BU30#,34#,WU300,340,XZU342..(48T,55T,65T)..(ARL,IDN)..T3200209-200311

12INCHES DIFFERENTIAL

41302CASE SUB-ASSY, REAR DIFFERENTIAL

main41301-0W010iXZU349,359..5F..WT..(IV1,IV8)200612-202310

main41301-0W010iWU302..DCRTP200912-201612

*FGR=4.875

main41301-36030iBU303,343,WU300,340..(48T,55T)..(GCC,GEN)200212-200802

10.5INCHES DIFFERENTIAL

main41301-36030iWU300,340..SA200610-201106

main41301-36040iBU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW)200209-200311

12INCHES DIFFERENTIAL

main41301-37020iWU342..85T200209-201412

sub41301-37021

main41301-37021iWU342,352..85T201412-201904

main41301-37030iWU302..DCRTP..IV3200612-201005

*FGR=4.625

main41301-37030iWU302,342..ST..IV8201708-202310

main41301-37040iXZU307,327,337,347200311-201106

main41301-F1010iXZU349,359..6F201904-202310

41302ABOLT(FOR REAR DIFFERENTIAL CASE)

main90031-05044iXZU349..5F..IV3200209-202310

main90031-05098iBU303,343,WU300,340,XZU342..(48T,65T)..IDN200311-202310

main90031-09055iWU342..85T..T3201703

W(LSD)

main90105-12047iBU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW)200209-200311

main90105-12087iWU300,340..SA200212-200802

10.5INCHES DIFFERENTIAL

main90105-12087iWU30#,340..(48T,55T)..(DCRTH,DSL)..(GCC,GEN)200610-201106

41314RETAINER, DRIVE PINION BEARING

main41304-36010iBU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW)200209-200311

FRONT

main41314-36010iBU303..WT;BU30#,34#,WU300,340,XZU300,320,330,34#..(48T,55T,65T,80T)..(ARL,GEN,IDN,TAIW)..(T3,T4)200209-200311

REAR

41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING

main41315-0W010iXZU309..IV3200612-202310

main41315-36011iWU30#,340..(48T,55T)..(DCRTH,DSL)..(GCC,GEN)200610-201106

main41315-36011iBU303,343,WU300,340..(48T,55T)..(GCC,GEN)200212-200802

10.5INCHES DIFFERENTIAL

main41315-36020iBU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW)200209-200311

12INCHES DIFFERENTIAL

main41315-37010iWU342..75T..DCRTJ200209-201707

main41315-37020iBU303,343,WU300,340,XZU30#,320,330,340,345..WT..(ARL,GCC,GEN,TAIW)200311-201106

main41315-F1010iXZU349..5F..IV3201707-202310

41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT

main41316-0W010iXZU349..5F..IV3200612-202310

main41316-36011iWU300,340..SA200212-201106

TYPE A:REFER ILLUST.

main41316-36020iBU30#,34#,WU300,340,XZU300,320,330,340..WT..(ARL,GCC,GEN,TAIW)200212-200312

12INCHES DIFFERENTIAL;TYPE A:REFER TO ILLUSTRATION

main41316-36020iBU303,343,WU300,340,XZU342..(48T,65T)..IDN200209-200312

TYPE A:REFER TO ILLUSTRATION

main41316-37010iWU342..75T200209-201106

main41317-36011iWU300,340..SA200610-201106

TYPE B:REFER ILLUST.

main41317-36011iBU303,343,WU300,340..(48T,55T)..(GCC,GEN)200212-200802

TYPE B:REFER TO ILLUSTRATION;10.5INCHES DIFFERENTIAL

main41317-36020iBU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW)200209-200311

TYPE B:REFER ILLUST.

41331GEAR, REAR DIFFERENTIAL SIDE

main41331-36020iWU300,340..SA200610-201106

main41331-36020iWU300,340..SA200212-200802

10.5INCHES DIFFERENTIAL

main41331-36031iBU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW)200209-200311

12INCHES DIFFERENTIAL

main41331-37030iWU340,XZU342..75T200209-201005

sub41331-37H01

main41331-37031iXZU349..5F..IV3201004-202310

main41331-37040iXZU307,327,337,347200311-202310

41341PINION, REAR DIFFERENTIAL

main41341-36011iBU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW)200209-200311

12INCHES DIFFERENTIAL

main41341-37020iWU340,XZU342..75T200209-201005

sub41331-37H01

sub41331-37H02

main41341-37021iXZU349..5F..IV3201004-202310

main41341-37030iXZU309,349,359..5F..(IV1,IV8)200311-202310

main41341-55013iWU300,340..SA200610-201106

main41341-55013iBU303,343,WU300,340..(48T,55T)..(GCC,GEN)200212-200802

10.5INCHES DIFFERENTIAL

41351WASHER, REAR DIFFERENTIAL PINION THRUST

main41351-35011iWU300,340..SA200610-201106

main41351-35011iWU300,340..SA200212-200802

10.5INCHES DIFFERENTIAL

main41351-36010iBU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW)200209-200311

12INCHES DIFFERENTIAL

main41351-37010iXZU349,359..6F200209-202310

main41351-37020iXZU309,349,359..5F..(IV1,IV8)200311-202310

41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-36010iBU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW)200209-200311

T=1.4

main41361-36020iBU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW)200209-200311

T=1.5

main41361-36030iBU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW)200209-200311

T=1.6

main41361-36040iBU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW)200209-200311

T=1.7

main41361-37010iWU340,XZU342..75T200209-200311

T=2.0

main41361-37020iWU342..75T..DCRTJ200311-202310

T=2.0

main41361-37030iXZU309..IV3200311-202310

T=2.0

main41361-60011iWU300,340..SA200212-201106

T=1.60

main41361-60021iWU300,340..SA200212-201106

T=1.75

main41361-60031iWU300,340..SA200212-201106

T=1.90

main41361-60041iBU303,343,WU300,340..(48T,55T)..(GCC,GEN)200212-201106

T=2.05

main41361-60480iWU300,340..SA200212-201106

T=1.55

main41361-60490iBU303,343,WU300,340..(48T,55T)..(GCC,GEN)200212-201106

T=1.65

main41361-60500iWU300,340..SA200212-201106

T=1.70

main41361-60510iBU303,343,WU300,340..(48T,55T)..(GCC,GEN)200212-201106

T=1.80

main41361-60520iWU300,340..SA200212-201106

T=1.85

main41361-60530iWU30#,340..(48T,55T)..(DCRTH,DSL)..(GCC,GEN)200212-201106

T=1.95

main41361-60540iWU300,340..SA200212-201106

T=2.00

main41361-60550iWU30#,340..(48T,55T)..(DCRTH,DSL)..(GCC,GEN)200212-201106

T=2.10

41371SPIDER, REAR DIFFERENTIAL

main41371-36011iBU303,343,WU300,340..(48T,55T)..(GCC,GEN)200212-200802

10.5INCHES DIFFERENTIAL

main41371-36011iWU300,340..SA200610-201106

main41371-36020iBU303,WU300..T3;BU30#,34#,WU300,340,XZU300,320,330,34#..(55T,65T,80T)..(ARL,GCC,GEN,IDN,TAIW)200209-200311

12INCHES DIFFERENTIAL

main41371-37010iWU340,XZU342..75T200209-202310

main41371-37020iBU300,340200311-200410

sub41371-37030

main41371-37030iWU340..65T..GEN;WU302,342..DCRTJ..GEN200410-202310

9111281440

main91112-81440

9151261240

main91512-61240

9161160635

main91611-60635

9161160814

main91611-60814

9453101400

main94531-01400

37 parts on this diagram · 19 diagrams in section
