FUEL FILTER

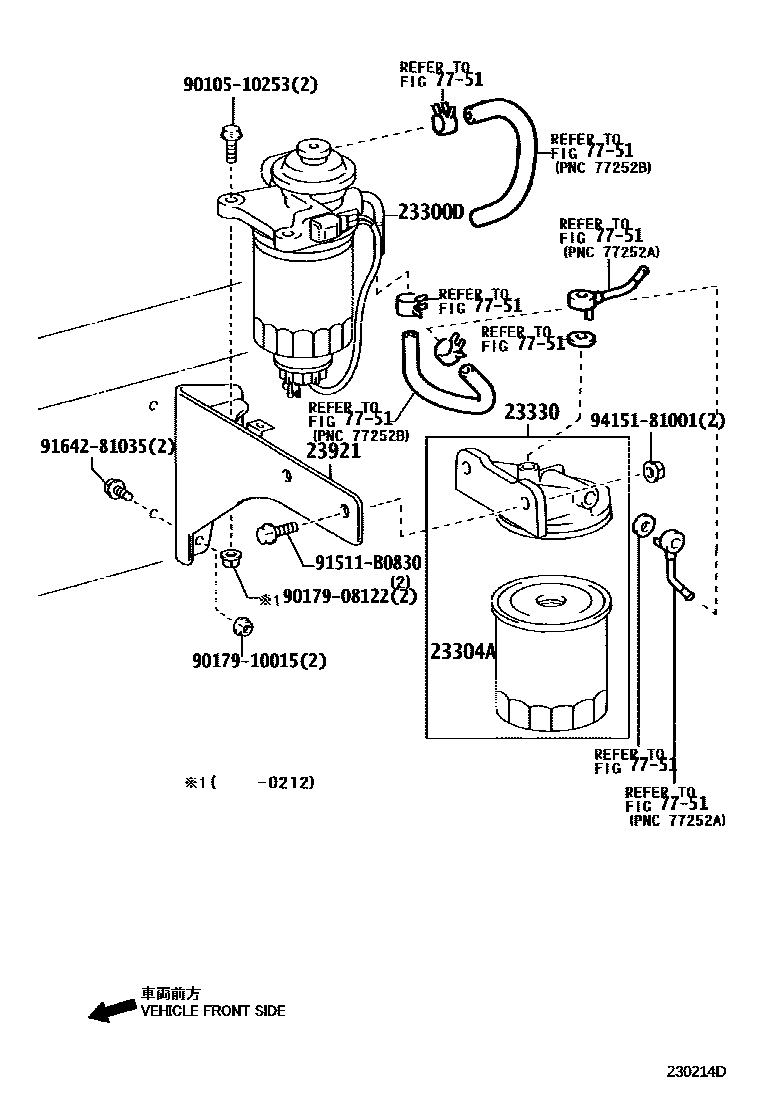

Parts diagram
23300FILTER ASSY, FUEL
main23300-78100i200209-200612
main23300-78251i200610-200901
23300DFILTER ASSY, FUEL(FOR DIESEL)
main23300-0U010i202203-202310
main23300-0W020i200209-200612
main23300-78110i200212-201106
NO.1
main23300-78190i200209-201106
NO.2
main23300-78210i200209-201005
NO.1
main23300-78370i200610-201106
NO.2
main23300-78450i200912-202001
main23300-78460i200901-200902
NO.2
main23300-78461i200902-201005
NO.2
main23330-0U040i202001-202111
NO.1
main23330-0U041i202112
NO.1
23304AELEMENT SET, FUEL FILTER
main23304-78180i200209-200612
main23304-EV520i202001-202112
main23304-EV521i202112
main23304-EV570i202203-202310
23330PREFILTER ASSY, FUEL
main23330-78010i200209-200612
main23330-78030i200610-200901
main23330-78441i202203-202310
NO.1:REFER ILLUST.
main23330-78451i202203-202310
NO.2:REFER ILLUST.
23921SUPPORT, FUEL FILTER
main23264-78050i200610-201106
NO.2
main23264-78060i200612-201005
NO.2
main23921-0U030i202203-202310
NO.1:REFER ILLUST.
main23921-0U040i202203-202310
NO.2:REFER ILLUST.
main23921-0W010i200209-200612
main23921-0W020i200209-201005
NO.1
main23921-0W050i200912-202001
NO.1
main23921-78010i200312-200610
main23921-78070i200212-200610
main23921-78110i200212-200610
main23921-78170i200212-200610
main23921-78180i200212-200802
main23921-78180i200610-201106
NO.1
main23921-78190i200312-200610
main23921-78250i200610-200901
main23921-78750i202001
NO.1
main23921-78760i202001
NO.3
7751FUEL TANK & TUBE
→ Go to FIG 77-51
9010510253
main90105-10253
9017908122
main90179-08122
9017910015
main90179-10015
91511B0830
main91511-B0830
9164281035
main91642-81035
9415181001
main94151-81001

12 parts on this diagram · 16 diagrams in section
