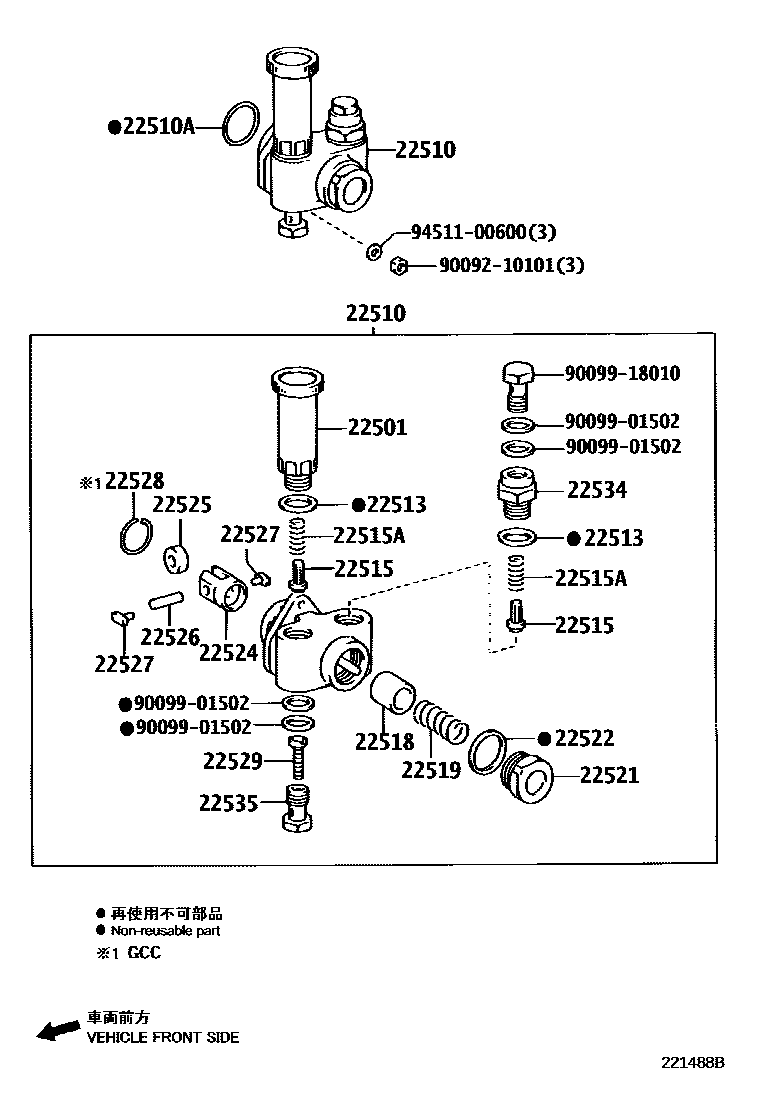

FUEL FEED PUMP

0001 1 0002 1 0003 1W(HIGH ALTITUDE COMPENSATOR) 0004 1 0005 1 0006 1 0007 1

22501PUMP SUB-ASSY, PRIMING

main22501-77021iW04D..WU300,340..GCC200209-200610

main22501-78500iW04D..WU302,342..DCRTP,DCRTR200912-201503

mainS225091390iS05C..XZU342200209-200612

22510PUMP ASSY, FUEL FEED

main22510-78030iW04D..WU300,340..GCC,GEN,SA200610-201106

main23100-78010iW04D..WU302,342..DCRTH,DCRTJ200610-201106

mainS225701880iS05C..XZU342200209-200612

22510ARING, O(FOR FUEL FEED PUMP)

main90069-38012iW04D..WU302,342..DCRTP,DCRTR200912-201503

main90099-14050iW04D..WU300,340..GCC200209-200610

mainS228171540iS05C..XZU342200209-200612

22513GASKET, CHECK VALVE CHAMBER PLUG

main21616-78500×3iW04D..WU302,342..DCRTP,DCRTR200912-201503

main22513-77020×2iW04D..WU300,340..GCC200209-200610

mainS228471680×3iS05C..XZU342200209-200612

22515VALVE, FEED PUMP CHECK

main22515-77021×2iW04D..WU300,340..GCC200209-200610

mainS225631041×2iS05C..XZU342200209-200612

22515ASPRING, FEED PUMP CHECK VALVE

main90501-05141×2iW04D..WU300,340..GCC200209-200610

mainS225621020×2iS05C..XZU342200209-200612

22518PISTON, FEED PUMP

main22518-56012iW04D..WU300,340..IDN200209-200612

GREEN

main22518-77020iW04D..WU300,340..GCC200209-200610

BLUE

main22518-78500iW04D..WU302,342..DCRTP,DCRTR200912-201503

mainS225661200iS05C..XZU342200209-200612

22519SPRING, FEED PUMP PISTON

main22519-78030iW04D..WU300,340..IDN200209-200612

main22519-78500iW04D..WU302,342..DCRTP,DCRTR200912-201503

mainS225671090iS05C..XZU342200209-200612

22521PLUG, FEED PUMP PISTON CHAMBER

main22521-77021iW04D..WU300,340..GCC200209-200610

main22521-78500iW04D..WU302,342..DCRTP,DCRTR200912-201503

mainS228451360iS05C..XZU342200209-200612

22522GASKET, FEED PUMP PISTON PLUG

main90069-34039iW04D..WU302,342..DCRTP,DCRTR200912-201503

main90099-01432iW04D..WU300,340..GCC200209-200610

mainS228471690iS05C..XZU342200209-200612

22524TAPPET, FEED PUMP

main22524-77021iW04D..WU300,340..IDN200209-200612

main22524-78500iW04D..WU302,342..DCRTP,DCRTR200912-201503

mainS225681270iS05C..XZU342200209-200612

22525ROLLER, FEED PUMP TAPPET

main22525-77020iW04D..WU300,340..GCC200209-200610

main22525-78500iW04D..WU302,342..DCRTP,DCRTR200912-201503

mainS225691130iS05C..XZU342200209-200612

22526PIN, FEED PUMP TAPPET ROLLER

main22526-77020iW04D..WU300,340..GCC200209-200610

main22526-78500iW04D..WU302,342..DCRTP,DCRTR200912-201503

mainS225711060iS05C..XZU342200209-200612

22527BLOCK, FEED PUMP TAPPET SLIDING

main22527-56010×2iW04D..WU300,340..IDN200209-200612

main22527-78500×2iW04D..WU302,342..DCRTP,DCRTR200912-201503

mainS225721150×2iS05C..XZU342200209-200612

22528RING, FEED PUMP TAPPET SNAP

main26314-78510iW04D..WU302,342..DCRTP,DCRTR200912-201503

main90099-01501iW04D..WU300,340..GCC200212-200610

mainS228871160iS05C..XZU342200209-200612

22529FILTER, FUEL PUMP

main22529-67010iW04D..WU300,340..GCC200209-200610

mainS225741040iS05C..XZU342200209-200612

22534SUPPORT, VALVE

main22534-77121iW04D..WU300,340..IDN200209-200612

22535SCREW, FUEL PIPE FOLLOW

main22535-46010iW04D..WU300,340..GCC200209-200610

main22535-78500iW04D..WU302,342..DCRTP,DCRTR200912-201503

mainS228351370iS05C..XZU342200209-200612

NO.1

mainS228351590iS05C..XZU342200209-200612

NO.2

9009210101

main90092-10101

9009901502

main90099-01502

9009918010

main90099-18010

9451100600

main94511-00600
