INJECTION NOZZLE

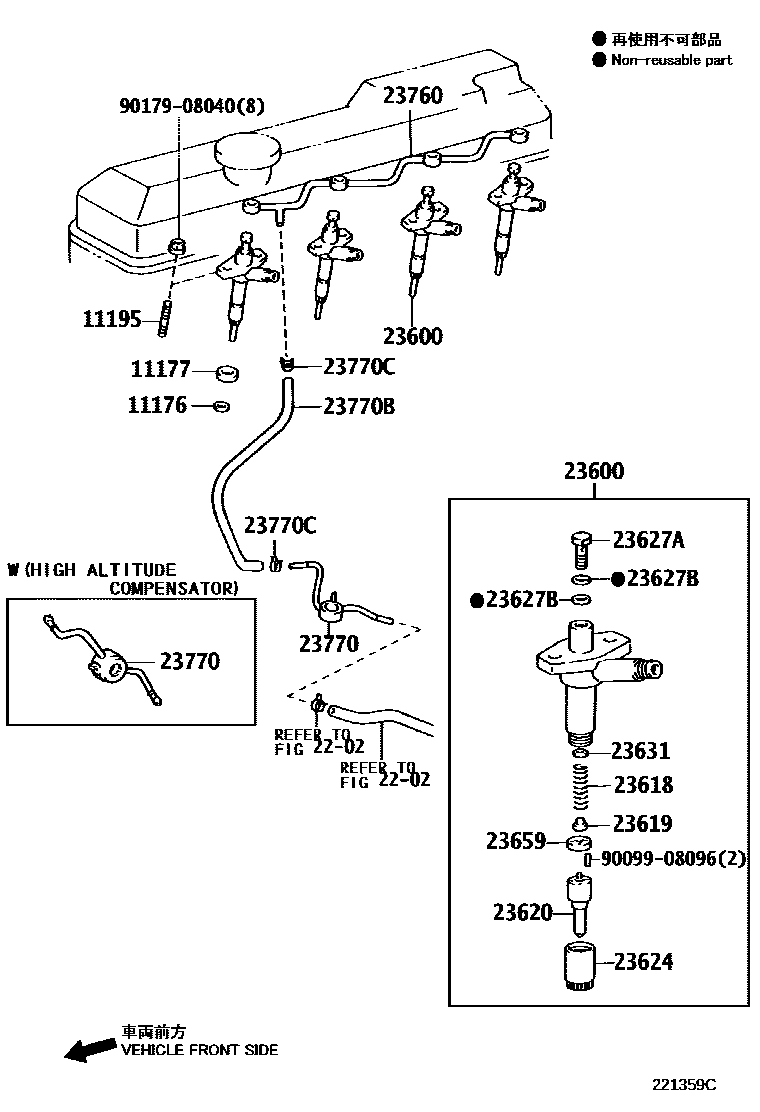

Parts diagram
11176SEAT, INJECTION NOZZLE
main11176-27010i200212-200610
sub11176-27011
main11176-56030i200209-200612
sub11176-56031
main11176-78010i200312-200901
subS1117-61200
main11176-89101i200209-200612
subS1117-61190
main90035-64040i200612-201005
main90564-21001i200209-201106
subSZ910-11017
mainS111761200i202203-202310
11177GASKET, INJECTION NOZZLE SEAT
main11177-78010i200209-201106
subS2366-11140
main23682-78030i200312-200901
sub23682-E0050
main23682-78050i200912
main23682-E0050i202203-202310
main90430-17003i200209-200612
11195BOLT, NOZZLE SET, STUD
main90116-08271i200209-200612
2202
23600HOLDER & NOZZLE SET, NOZZLE
main23600-58030i200209-200505
sub23600-59415
main23600-59305i200212-200505
sub23600-59306
main23600-59306i200505-200610
sub23600-59307
main23600-59335i200212-200312
sub23600-59336
main23600-59415i200505-200612
main23600-78020i200209-201106
subS2361-01710
main23600-78050i200209-200612
subS2361-02220
main23600-78080i200610-201106
subS2361-02270
23618SPRING, NOZZLE HOLDER PRESSURE
main23618-17060i200212-200610
main23618-58030i200209-200612
main23618-78030i200209-200802
main23618-78080i200610-201106
subS2361-51330
main23618-89101i200209-200612
subS2361-51270
23619PIN, NOZZLE HOLDER PRESSURE
main23619-17070i200212-200610
main23619-58030i200209-200612
main23619-78030i200209-200802
main23619-78080i200610-201106
subS2361-61030
main23619-89101i200209-200612
subS2361-61310
23620NOZZLE ASSY
main23602-58100i200212-200610
main23602-58120i200212-200312
main23620-58030i200209-200612
main23620-78020i200209-201106
subS2365-01620
main23620-78080i200610-201106
subS2365-02370
main23620-89108i200209-200612
subS2365-02210
23624NUT, NOZZLE RETAINING
main23624-58010i200209-200612
main23624-58100i200212-200610
main23624-78080i200610-201106
subS2363-31630
main23624-78140i200209-200802
main23624-89103i200209-200612
subS2363-32070
23627ASCREW, FOLLOW(FOR NOZZLE)
main21811-E0050i201210-202310
main23625-58230i200209-200612
main23656-78030i200209-201106
main23656-89101i200209-200612
sub90034-01017
main90034-01017i200312-201210
sub21811-E0050
23627BWASHER, COPPER PLATE(FOR NOZZLE)
main90099-01503i200209-200802
main90201-08106i200209-200612
23631WASHER(FOR NOZZLE HOLDER PRESSURE SPRING)
main23631-17010i200212-200610
T=1.28
main23631-17029i200212-200610
T=0.8
main23631-17030i200212-200610
T=0.9
main23631-17031i200212-200610
T=0.975
main23631-17032i200212-200610
T=1.05
main23631-17033i200212-200610
T=1.125
main23631-17034i200212-200610
T=1.2
main23631-17035i200212-200610
T=1.275
main23631-17036i200212-200610
T=1.35
main23631-17037i200212-200610
T=1.425
main23631-17038i200212-200610
T=1.5
main23631-17039i200212-200610
T=1.575(DA=6.2)
main23631-17040i200212-200610
T=0.85
main23631-17041i200212-200610
T=0.875
main23631-17042i200212-200610
T=0.925
main23631-17043i200212-200610
T=0.95
main23631-17044i200212-200610
T=1.0
main23631-17045i200212-200610
T=1.025
main23631-17046i200212-200610
T=1.075
main23631-17047i200212-200610
T=1.1
main23631-17048i200212-200610
T=1.15
main23631-17049i200212-200610
T=1.175
main23631-17050i200212-200610
T=1.225
main23631-17051i200212-200610
T=1.25
main23631-17052i200212-200610
T=1.3
main23631-17053i200212-200610
T=1.325
main23631-17054i200212-200610
T=1.375
main23631-17055i200212-200610
T=1.4
main23631-17056i200212-200610
T=1.45
main23631-17057i200212-200610
T=1.475
main23631-17058i200212-200610
T=1.525
main23631-17059i200212-200610
T=1.55
main23631-17060i200212-200610
T=1.65
main23631-17061i200212-200610
T=1.725(DA=6.2)
main23631-17062i200212-200610
T=1.8
main23631-17063i200212-200610
T=1.875
main23631-17064i200212-200610
T=1.95
main23631-17065i200212-200610
T=2.0
main23631-17066i200212-200610
T=2.1
main23631-17067i200212-200610
T=2.175
main23631-17068i200212-200610
T=1.6
main23631-17069i200212-200610
T=1.625
main23631-17079i200212-200610
T=0.825
main23631-58010i200209-200612
T=1.000
main23631-58011i200209-200612
T=1.050
main23631-58012i200209-200612
T=1.100
main23631-58013i200209-200612
T=1.150
main23631-58014i200209-200612
T=1.200
main23631-58015i200209-200612
T=1.250
main23631-58016i200209-200612
T=1.300
main23631-58017i200209-200612
T=1.350
main23631-58018i200209-200612
T=1.400
main23631-58019i200209-200612
T=1.450
main23631-78030i200209-200802
T=0.700
main23631-78031i200209-200802
T=0.750
main23631-78032i200209-200802
T=0.800
main23631-78033i200209-200802
T=0.850
main23631-78034i200209-200802
T=0.900
main23631-78035i200209-200802
T=0.950
main23631-78036i200209-200802
T=1.000
main23631-78037i200209-200802
T=1.050
main23631-78038i200209-200802
T=1.100
main23631-78039i200209-200802
T=1.150
main23632-17020i200212-200610
T=1.675
main23632-17021i200212-200610
T=1.7
main23632-17022i200212-200610
T=1.75
main23632-17023i200212-200610
T=1.775
main23632-17024i200212-200610
T=1.825
main23632-17025i200212-200610
T=1.85
main23632-17026i200212-200610
T=1.9
main23632-17027i200212-200610
T=1.925
main23632-17028i200212-200610
T=1.975
main23632-17029i200212-200610
T=2.05
main23632-17030i200212-200610
T=2.075
main23632-17031i200212-200610
T=2.125
main23632-17032i200212-200610
T=2.15
main23632-17033i200212-200610
T=2.2
main23632-17037i200212-200610
T=2.025
main23632-58010i200209-200612
T=1.500
main23632-58011i200209-200612
T=1.550
main23632-58012i200209-200612
T=1.600
main23632-58013i200209-200612
T=1.650
main23632-58014i200209-200612
T=1.700
main23632-58015i200209-200612
T=1.750
main23632-58016i200209-200612
T=1.800
main23632-58017i200209-200612
T=1.275
main23632-58018i200209-200612
T=1.325
main23632-58019i200209-200612
T=1.375
main23632-78030i200209-200802
T=1.200
main23632-78031i200209-200802
T=1.250
main23632-78032i200209-200802
T=1.300
main23632-78033i200209-200802
T=1.350
main23632-78034i200209-200802
T=1.400
main23632-78035i200209-200802
T=1.450
main23632-78036i200209-200802
T=1.500
main23632-78037i200209-200802
T=0.725
main23632-78038i200209-200802
T=0.775
main23632-78039i200209-200802
T=0.825
main23633-58010i200209-200612
T=1.425
main23633-58011i200209-200612
T=1.475
main23633-58012i200209-200612
T=0.950
main23633-58013i200209-200612
T=0.700
main23633-58014i200209-200612
T=0.750
main23633-58015i200209-200612
T=0.800
main23633-58016i200209-200612
T=0.850
main23633-58017i200209-200612
T=0.900
main23633-58018i200209-200612
T=0.975
main23633-58019i200209-200612
T=1.025
main23633-78030i200209-200802
T=0.875
main23633-78031i200209-200802
T=0.925
main23633-78032i200209-200802
T=0.975
main23633-78033i200209-200802
T=1.025
main23633-78034i200209-200802
T=1.075
main23633-78035i200209-200802
T=1.125
main23633-78036i200209-200802
T=1.175
main23633-78037i200209-200802
T=1.225
main23633-78038i200209-200802
T=1.275
main23633-78039i200209-200802
T=1.325
main23634-58010i200209-200612
T=1.075
main23634-58011i200209-200612
T=1.125
main23634-58012i200209-200612
T=1.175
main23634-58013i200209-200612
T=1.225
main23634-78030i200209-200802
T=1.375
main23634-78031i200209-200802
T=1.425
main23634-78032i200209-200802
T=1.475
23659PACKING, TIP(FOR NOZZLE)
main23659-58030i200209-200612
main23659-89101i200209-200612
NO.1
subS2361-91090
main23659-89102i200209-200612
NO.2
sub90032-09019
sub90032-09030
23760PIPE ASSY, NOZZLE LEAKAGE
main23708-0U010i202203-202310
main23708-78010i200312-200901
subS2308-12630
main23760-56060i200209-200612
main23761-58011i200212-200610
main23761-78010i200209-201106
sub23708-E0090
main23761-78070i200610-201106
sub23761-E0020
main23761-E0020i201804
WITH POWEWR TAKE OFF
23770PIPE ASSY, NOZZLE LEAKAGE, NO.2
main23762-58030i200212-200610
main23770-56090i200209-200612
main23770-56100i200212-200610
W(HIGH ALTITUDE COMPENSATOR)
23770BHOSE, FUEL
main23271-58090i200212-200610
main90038-60007i200209-201106
L=65
subSZ920-31066
main90447-11027i200209-200612
23770CCLAMP OR CLIP(FOR FUEL HOSE SET)
main90034-67017i200209-201106
subSZ466-11003
main90034-68024i200610-201106
main96132-41000i200209-200612
9009908096
main90099-08096
9017908040
main90179-08040

19 parts on this diagram · 12 diagrams in section
