VACUUM PUMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

29300PUMP ASSY, VACUUM

main29300-58040i15BFTE..XZU300,320,330,340200212-200610

main29300-58060i14B..BU303,343..GEN200209-200610

main29300-78050iS05C..XZU342200209-200612

sub29300-78051

main29300-78060iN04C..XZU307,327,337,347200610-200901

sub29300-78061

main29300-78080iW04D..WU302,342..DCRTP,DCRTR200912-201407

sub29300-E0070

main29300-78110iN04C..XZU349..6F;N04C..XZU309..IV3202203

main29300-89103iW04D..WU300,340200310-200406

main29300-89104iW04D..WU300,340..IDN200406-200612

subS2930-01481

main29300-E0120iW04D..WU342..DCRTR201407-201612

main29300-E0150iW04D..WU342,352..DCRTR201612

29300GBEARING, BALL

main90099-10185i15BFTE..BU300,340200209-200312

29303ROTOR SUB-ASSY, VACUUM PUMP

main29303-67020iS05C..XZU342200209-200612

main29303-EV010iW04D..WU342..DCRTR200912-201612

main29303-EV020iN04C..XZU349..5F;N04C..XZU309,359..IV1,IV8202203-202310

main29337-27010i14B..BU303,343..GEN200209-200610

main29337-58040i15BFTE..XZU300,320,330,340200212-200610

29311PIN, VACUUM PUMP DOWEL, NO.1

main29311-76010×2i15BFTE..BU300,340200209-200312

29331BLADE, VACUUM PUMP, A

main29331-27010×5i14B,15BFTE..BU303,343,XZU300,320,330,340..GEN,TAIW200209-200610

main29331-67020×5iN04C..XZU307,327,337,347200610-200901

main29331-89102×4iW04D..WU300,340..GCC200310-200610

subS2933-11130

main29331-EV010×3iW04D..WU302,342,352..DCRTP200912

29336SHAFT, VACUUM PUMP

main29336-58040i14B,15BFTE..BU303,343,XZU300,320,330,340..GEN,TAIW200209-200610

main29336-58050iN04C..XZU307,327,337,347200610-200901

29342PACKING, VACUUM PUMP

main29342-17010iN04C..XZU307,327,337,347200610-200901

main29342-64010×2i15BFTE..BU300,340200209-200312

main29342-89101iW04D..WU300,340..SA200610-200812

subS2934-21160

main29342-EV010iW04D..WU342..DCRTR200912-201612

29342BRING, O

main29342-58010×2i15BFTE..BU300,340200209-200312

29351GEAR, VACUUM PUMP

main29351-58050i15BFTE..BU300,340200209-200312

main29351-89101iS05C..XZU342200209-200612

subS1363-31030

29364WASHER, VACUUM PUMP

main29364-66010i15BFTE..BU300,340200209-200312

29369VALVE SUB-ASSY, CHECK

main29369-64030i15BFTE..BU300,340200209-200312

main29369-89102iW04D..WU30#,34#..GCC,GEN200610-201106

subS2930-11290

main29369-EV050iW04D..WU302,342..DCRTP,DCRTR200912-201407

main29369-EV060iN04C..XZU349..5F;N04C..XZU309,359..IV1,IV8202203-202310

9009690031

main90096-90031

9009904577

main90099-04577

9009905185

main90099-05185

9020114099

main90201-14099

9040109001

main90401-09001

9161261032

main91612-61032

9516110413

main95161-10413

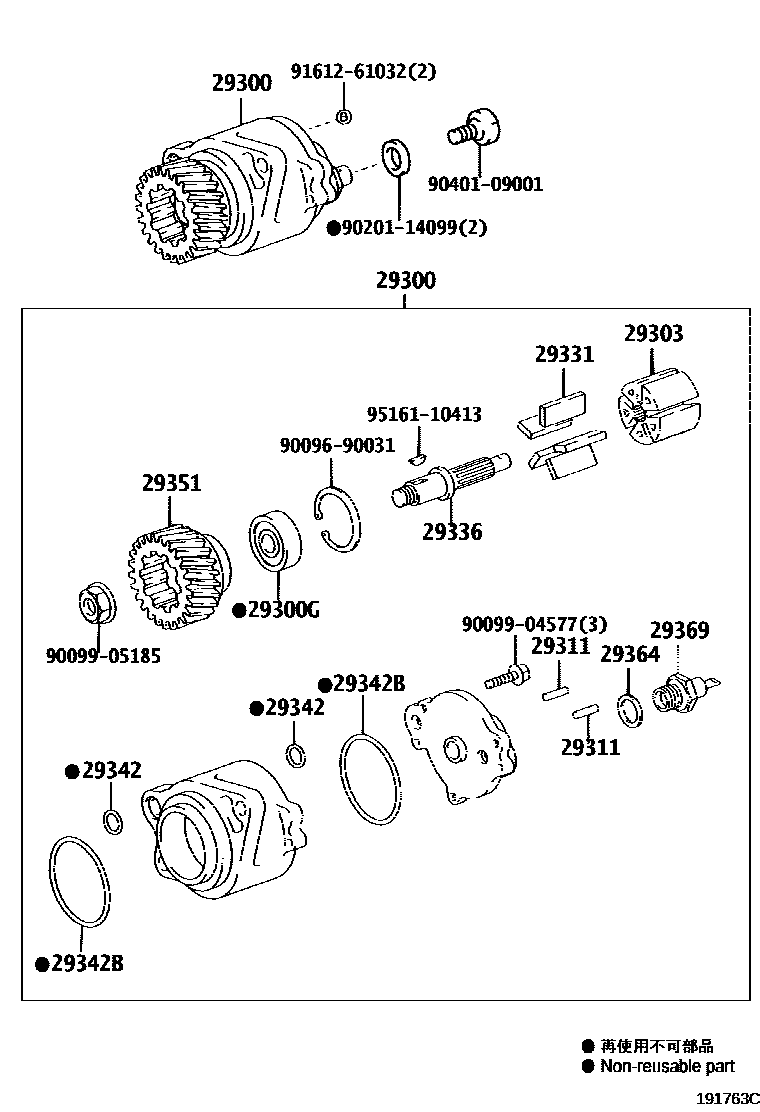

18 parts on this diagram · 7 diagrams in section
