IGNITION COIL & SPARK PLUG / GLOW PLUG

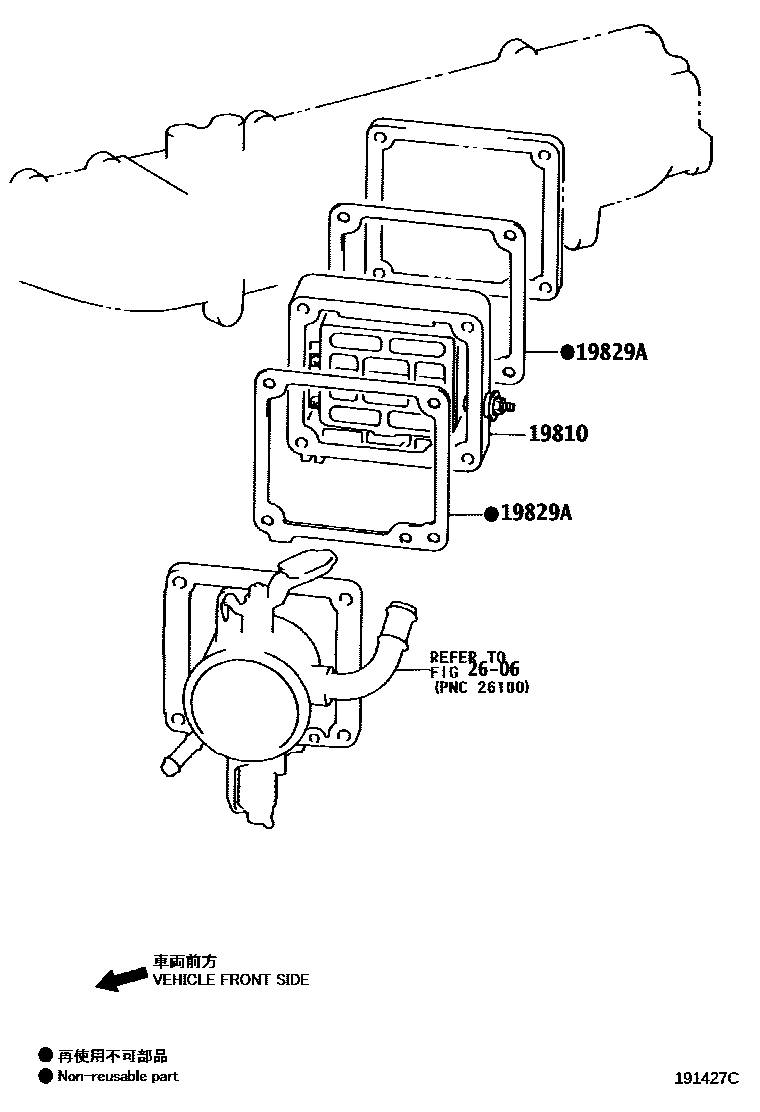

Parts diagram

19810HEATER ASSY, INTAKE

main19810-17020i200212-200312

19829AGASKET, INTAKE HEATER

main19829-17010×2i200212-200312

2606

3 parts on this diagram · 4 diagrams in section
