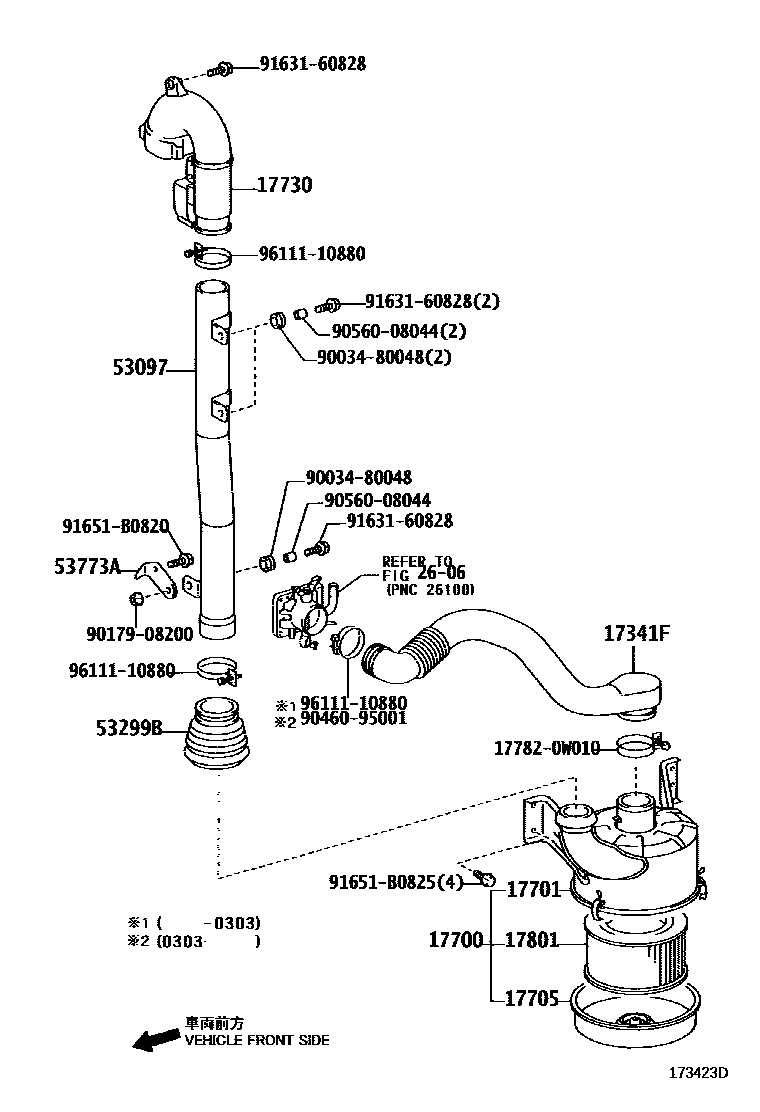

AIR CLEANER

0001 1 0002 1 0003 1 0004 1 0005 1 0007 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1 0015 1 0016 1 0017 1 0018 1

17341FHOSE, AIR, NO.1

main17030-0U010iW04D..WU302,342,352201706

main17030-0W040iW04D..WU302,342..(DCRTH,DCRTJ)..IDN200612-201005

NO.1

main17030-0W060iW04D..WU302,342..DCRTP,DCRTR200912-201612

NO.1

main17030-58021i15BFTE..XZU300,320,330,340200212-200610

main17030-78120iS05C..XZU342200209-200303

sub17030-78121

sub90460-95001

main17030-78121iS05C..XZU342200303-200612

main17030-78130i14B..BU303,343..IDN200209-200303

sub17030-78131

sub90460-95001

main17030-78131i14B..BU303,343..IDN200303-200612

main17030-78140iW04D..WU300,340..IDN200209-200612

main17030-78210iW04D..WU300,340..GCC200212-200303

sub17030-78211

main17030-78211iW04D..WU300,340..GCC,GEN200303-201106

main17030-78220i14B..BU303,343..GEN200212-200306

sub17030-78280

main17030-78240iN04C..XZU307,327,337,347200610-200901

main17030-78240iW04D..WU302,342..GEN200610-201106

NO.1

main17030-78261iN04C..XZU305,345200312-200402

sub17030-78262

main17030-78262iN04C..XZU305,345200403-200610

main17030-78280i14B..BU303,343..GEN200306-200610

main17341-78150iW04D..WU302,342..GEN200610-201106

NO.2

main17341-78230iW04D..WU302,342..(DCRTH,DCRTJ)..IDN200612-201005

NO.2

17700CLEANER ASSY, AIR

main17700-0U020iN04C..XZU349..6F;N04C..XZU309..IV3202203-202310

main17700-0W041iW04D..WU300,340200209-200212

sub17700-0W042

main17700-0W042iS05C..XZU342200212-200303

sub17700-0W043

main17700-0W043iS05C..XZU342200303-200311

sub17700-0W044

main17700-0W044i14B..BU303,343..IDN200311-200612

main17700-0W050iW04D..WU302,342..(DCRTH,DCRTJ)..IDN200612-201005

main17700-0W070iW04D..WU302,342..DCRTP,DCRTR200912-201012

sub17700-0W071

main17700-0W071iW04D..WU302,342,352..IDN201101

main17700-78073iW04D..WU300,340..SA200411-201106

main17700-78150i14B..BU303,343..GEN200212-200303

sub17700-78151

main17700-78151iW04D..WU300,340..GCC200303-200610

main17700-78160i15BFTE..XZU300,320,330,340200212-200303

sub17700-78161

main17700-78161i15BFTE..XZU300,320,330,340200303-200610

main17700-78190iN04C..XZU305,345200312-200610

main17700-78280iW04D..WU302,342..GEN200610-200811

sub17700-78281

main17700-78281iW04D..WU302,342..GEN200812-201106

main17700-78290iN04C..XZU307,327,337,347200610-200810

sub17700-78291

main17700-78291iN04C..XZU307,327,337,347200811-200901

17701CASE SUB-ASSY, AIR CLEANER

main17701-0W033iW04D..WU302,342..(DCRTH,DCRTJ)..IDN200209-201005

main17701-0W040iW04D..WU302,342,352..IDN201101

main17701-78031iW04D..WU300,340..SA200411-201106

main17701-78111iW04D..WU300,340..GCC200303-200610

main17701-78121i15BFTE..BU300,340200303-200610

main17701-78150iN04C..XZU305,345200312-200610

main17701-78240iW04D..WU302,342..GEN200610-200811

sub17701-78241

main17701-78241iW04D..WU302,342..GEN200812-201106

main17701-78250iN04C..XZU307,327,337,347200610-200810

sub17701-78251

main17701-78251iN04C..XZU307,327,337,347200811-200901

17705CAP SUB-ASSY, AIR CLEANER

main17705-0U010iN04C..XZU349..5F;N04C..XZU309,359..IV1,IV8202203-202310

main17705-0W040i14B..BU303,343200209-200212

sub17705-0W041

main17705-0W041i14B..BU303,343..IDN200212-200311

sub17705-0W042

main17705-0W042i14B..BU303,343..IDN200311-201005

main17705-0W050iW04D..WU302,342,352..IDN201101

main17705-78011iW04D..WU300,340..GCC,GEN200212-201106

main17705-78020i15BFTE..BU300,340200212-200610

main17705-78040iN04C..XZU307,327,337,347200312-201106

17730PRECLEANER ASSY, AIR W/HOSE

main17730-0W010iW04D..WU302,342..(DCRTH,DCRTJ)..IDN200612-201005

main17730-56041iW04D..WU300,340..IDN200209-200612

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-0U080iN04C..XZU349..6F;N04C..XZU309..IV3202203-202310

main17801-0W020iW04D..WU300,340..IDN200209-200612

main17801-0W030iW04D..WU302,342..(DCRTH,DCRTJ)..IDN200612-201005

sub17801-0W031

main17801-0W032iW04D..WU302,342,352..IDN201101

main17801-67060i14B..BU303,343..GEN200212-200610

main17801-78011iW04D..WU300,340..SA200411-201106

main17801-78030i15BFTE..BU300,340200212-200610

main17801-78040iN04C..XZU305,345200312-201106

2606

53097INLET SUB-ASSY

main53097-0W010iXZU342200209-200302

sub53097-0W011

main53097-0W011iXZU342200302-200307

sub53097-0W012

main53097-0W012iWU300,340..IDN200307-200612

main53097-0W020iWU302,342..(DCRTH,DCRTJ)..IDN200612-201005

main53097-0W030iWU302,342..DCRTP,DCRTR200912-201003

sub53097-0W031

main53097-0W031iWU342..VBODY;WU342..75T..DCRTR;WU302,352..DCRTP,DCRTR;WU342..(48T,65T)..DCRTP201004-201612

main53097-37220iWU300,340..GCC,SA200212-200609

sub53097-37320

main53097-37270iXZU300,320,330,340200212-200609

sub53097-37310

main53097-37300iXZU305,345200312-200610

main53097-37310iXZU307,327,337,347200610-201106

main53097-37320iWU300,340..SA200610-201106

main53097-F1010iXZU309,349,359..IV1,IV8202203-202310

main53097-F1020iXZU349..5F..IV3202203-202310

53299BDUCT, COOL AIR INTAKE

main53299-95401iXZU342200209-201005

53773ABRACKET, AIR CLEANER MOUNTING

main53773-0W010iXZU342200209-200612

177820W010CLAMP, AIR CLEANER DUCT, NO.2

main17782-0W010

9003480048

main90034-80048

9017908200

main90179-08200

9046095001

main90460-95001

9056008044

main90560-08044

9163160828

main91631-60828

91651B0820

main91651-B0820

91651B0825

main91651-B0825

9611110880

main96111-10880

19 parts on this diagram · 16 diagrams in section
