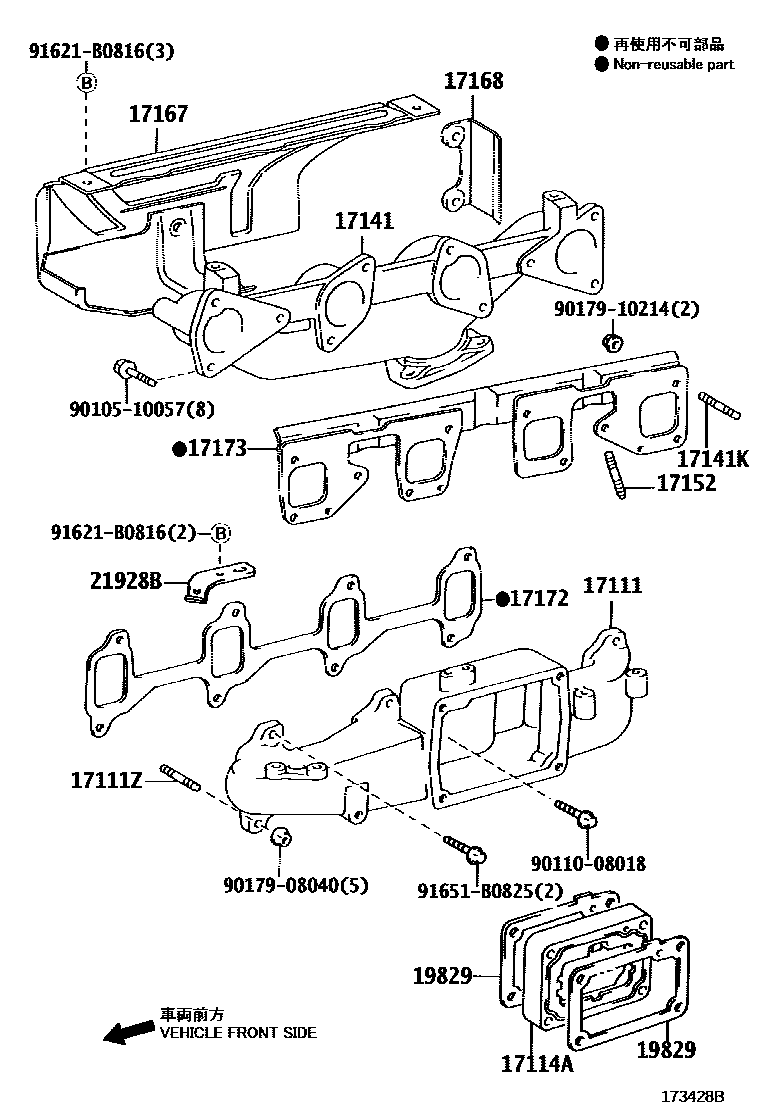

MANIFOLD

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1 0015 1

17111MANIFOLD, INTAKE

main17111-0U010iN04C..XZU349..6F;N04C..XZU309..IV3202203-202310

main17111-58060i14B..BU303,343200209-200612

main17111-58120i15BFTE..XZU300,320,330,340200212-200610

main17111-78011iW04D..WU300,340..IDN200209-201106

sub17111-E0270

main17111-78040iS05C..XZU342200209-200510

sub17111-78070

main17111-78050iN04C..XZU307,327,337,347200312-200901

sub17111-E0210

main17111-78070iS05C..XZU342200510-200612

sub17111-E0010

main17111-78080iW04D..WU302,342..GEN200610-201106

sub17111-E0040

main17111-78090iW04D..WU302,342..(DCRTH,DCRTJ)..IDN200612-201005

17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)

main90116-08352i14B..BU303,343200209-200612

17114AFLANGE, INTAKE

main17114-58020i14B..BU303,343200209-200612

17141MANIFOLD, EXHAUST

main17141-0U010iN04C..XZU349..5F;N04C..XZU309,359..IV1,IV8202203-202310

main17141-56060i14B..BU303,343200209-200612

main17141-58070i15BFTE..XZU300,320,330,340200212-200610

main17141-78030iS05C..XZU342200209-200309

sub17141-78031

main17141-78031iS05C..XZU342200309-200612

subS1714-15783

main17141-78050iW04D..WU300,340..IDN200209-200612

main17141-78061iW04D..WU300,340..GCC,SA200212-200310

sub17141-78062

main17141-78062iW04D..WU300,340..GCC,GEN,SA200310-201106

subS1714-16312

main17141-78072iW04D..WU302,342..GEN200610-201106

subS1714-16432

main17141-78081iN04C..XZU305,345200312-200610

main17141-78100iN04C..XZU307,327,337,347200610-200901

subS1714-16411

main17141-78200iW04D..WU302,342..(DCRTH,DCRTJ)..IDN200612-201005

17141KBOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)

main90031-16069iN04C..XZU307,327,337,347200610-200901

main90116-10063i14B..BU303,343200209-200612

mainSZ12610012iN04C..XZU349..5F;N04C..XZU309,359..IV1,IV8202203-202310

17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

main90031-16063iW04D..WU300,340..IDN200209-200612

main90031-16091iN04C..XZU307,327,337,347200312-201106

main90126-10006i14B,15BFTE..BU30#,34#200209-200612

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-58061i15BFTE..BU300,340200212-200610

main17167-58080i14B..BU303,343200209-200612

main17167-78040iS05C..XZU342200212-200612

subS1704-44060

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-58060i14B..BU303,343200209-200612

17172GASKET, MANIFOLD TO CYLINDER HEAD

main17171-58020i14B..BU303,343200209-200612

main17171-58030i15BFTE..BU300,340200212-200610

main17172-78040iW04D..WU300,340..IDN200209-201106

subS1717-12220

main17172-89102iS05C..XZU342200209-200612

subS1717-12000

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-56040i14B..BU303,343200209-200612

main17173-58050i15BFTE..XZU300,320,330,340200212-200610

main17173-78030iS05C..XZU342200212-200612

NO.2

main17173-78040iW04D..WU300,340..SA200209-201106

subS1710-41880

main17173-78080iN04C..XZU349..5F;N04C..XZU309,359..IV1,IV8201106-202310

main17173-89102iS05C..XZU342200212-200612

NO.1

subS1710-41610

main17173-89102iS05C..XZU342200209-200212

subS1710-41610

19829GASKET, INTAKE HEATER

main19829-17010i14B..BU303,343200209-200612

21928BSUPPORT, THROTTLE WIRE

main21928-58070i14B..BU303,343200209-200612

9010510057

main90105-10057

9011008018

main90110-08018

9017908040

main90179-08040

9017910214

main90179-10214

91621B0816

main91621-B0816

91651B0825

main91651-B0825

18 parts on this diagram · 15 diagrams in section
