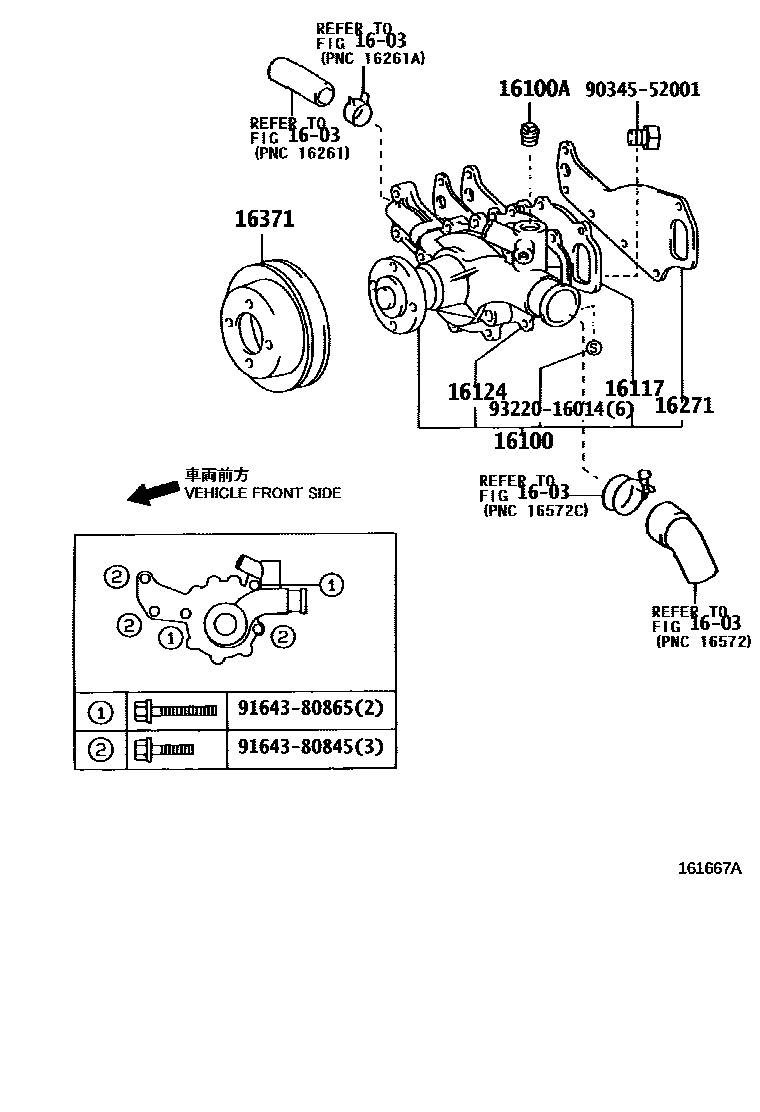

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

16100PUMP ASSY, ENGINE WATER

main16100-59176i14B..BU303,343200209-200612

main16100-59295i15BFTE..XZU300,320,330,340200212-200610

main16100-78011iW04D..WU300,340..IDN200209-200612

main16100-78060iS05C..XZU342200209-200303

main16100-78070iS05C..XZU342200303-200612

main16100-78080iN04C..XZU305,345200312-200511

main16100-78100iW04D..WU302,342..IDN200610-200905

main16100-78101iW04D..WU302,342..GEN200907-201106

main16100-78110iN04C..XZU305,345200511-200610

main16100-78140iW04D..WU302,342..IDN200905-200907

main16100-78141iW04D..WU302,342..(DCRTH,DCRTJ)..IDN200907-201005

main16100-E0151iW04D..WU300,340201010-201106

main16100-E0B71iN04C..XZU349..5F;N04C..XZU309,359..IV1,IV8202203-202310

16100APLUG, WATER PUMP

main90345-54005i14B..BU303,343200209-200612

16117PLATE, WATER PUMP

main16117-58010i14B..BU303,343200209-200612

main16117-58090i15BFTE..BU300,340200212-200312

16124GASKET, WATER PUMP COVER

main16124-58010i14B..BU303,343200209-200612

main16124-58090i15BFTE..BU300,340200212-200312

16271GASKET, WATER PUMP

main16271-58010i15BFTE..XZU300,320,330,340200212-200610

main16271-78010iN04C..XZU349..5F;N04C..XZU309,359..IV1,IV8202203-202310

16371PULLEY, FAN

main16173-78010iW04D..WU300,340..IDN200209-200612

main16173-78020iW04D..WU302,342..DCRTP,DCRTR200912-201611

main16173-E0370iW04D..WU302,342,352201612

main16308-78020iS05C..XZU342200209-200612

main16308-78030iN04C..XZU307,327,337,347200610-200901

main16371-56070i14B..BU303,343200209-200612

main16371-58090i15BFTE..XZU300,320,330,340200212-200610

9034552001

main90345-52001

9164380845

main91643-80845

9164380865

main91643-80865

9322016014

main93220-16014

11 parts on this diagram · 9 diagrams in section
