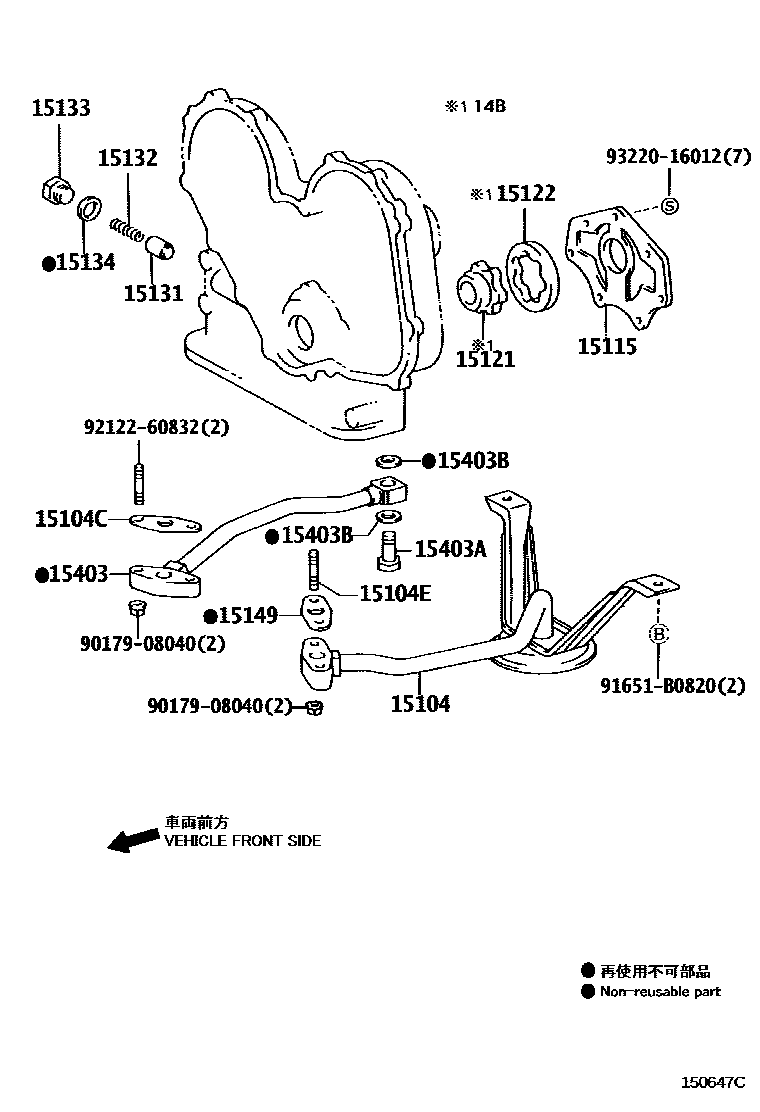

ENGINE OIL PUMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1

15104STRAINER SUB-ASSY, OIL

main15104-56062i14B,15BFTE..BU30#,34#200209-200612

main15104-89102iS05C..XZU342200209-200612

main15104-E0090iN04C..XZU349..5F;N04C..XZU309,359..IV1,IV8202203-202310

main15401-78020iW04D..WU30#,34#..GCC,GEN,SA200610-201106

main15401-78030iN04C..XZU305,345200312-200610

main15401-78060iW04D..WU302,342..(DCRTH,DCRTJ)..IDN200612-201005

main15401-78070iW04D..WU302,342,352..DCRTP,DCRTR200912

15104CGASKET(FOR OIL STRAINER)

main15149-58010i15BFTE..XZU300,320,330,340200212-200610

15104EBOLT, STUD(FOR OIL STRAINER)

main92122-60832×2i15BFTE..XZU300,320,330,340200212-200610

15115COVER, OIL PUMP

main15115-56040i14B..BU303,343200209-200612

main15115-56090i15BFTE..BU300,340200212-200312

15121GEAR, OIL PUMP DRIVE

main15121-56040i14B..BU303,343200209-200612

15122GEAR, OIL PUMP DRIVEN

main13519-78010iW04D..WU300,340..GCC200305-200610

main15122-56040i14B..BU303,343200209-200612

main15122-78010iW04D..WU300,340200209-200305

main15122-89105iS05C..XZU342200209-200612

15131VALVE, OIL PUMP RELIEF

main15131-24010i14B,15BFTE..BU30#,34#200209-200612

main15131-78010iS05C..XZU342200506-200612

main15131-89102iS05C..XZU342200209-200506

15132SPRING, OIL PUMP RELIEF VALVE

main15132-56080i15BFTE..XZU300,320,330,340200212-200610

main15132-78010iS05C..XZU342200209-200612

15133PLUG, OIL PUMP RELIEF VALVE

main15133-20010i14B,15BFTE..BU30#,34#200209-200612

15134GASKET, OIL PUMP RELIEF VALVE

main15134-20010i15BFTE..XZU300,320,330,340200212-200610

15149GASKET, OIL STRAINER FLANGE

main15149-58010i15BFTE..XZU300,320,330,340200212-200610

15403PIPE SUB-ASSY, OIL PUMP OUTLET

main15403-56050i14B,15BFTE..BU30#,34#200209-200612

15403AUNION(FOR OIL PUMP OUTLET PIPE)

main90401-20009i15BFTE..XZU300,320,330,340200212-200610

15403BGASKET(FOR OIL PUMP OUTLET PIPE)

main90430-20018×2i15BFTE..XZU300,320,330,340200212-200610

9017908040

main90179-08040

91651B0820

main91651-B0820

9212260832

main92122-60832

9322016012

main93220-16012

18 parts on this diagram · 11 diagrams in section
