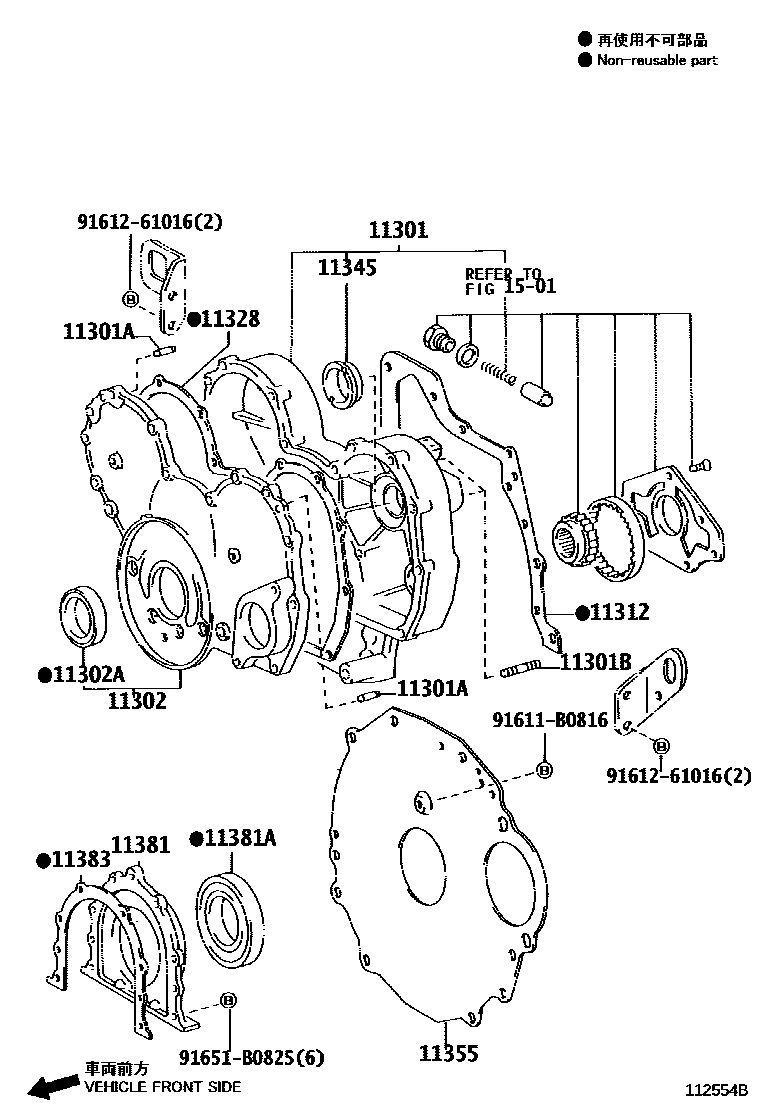

TIMING GEAR COVER & REAR END PLATE
11301CASE SUB-ASSY, TIMING GEAR
11301APIN, STRAIGHT(FOR TIMING GEAR CASE)
L=18,OD=8
11301BBOLT,STUD(FOR TIMING GEAR CASE)
11302COVER SUB-ASSY, TIMING CHAIN OR BELT
W(POWER STEERING)
NO.1
NO.1
NO.1
NO.2
NO.2
NO.2
NO.2
NO.2
NO.1
NO.1
NO.1
11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
11312GASKET, FRONT END PLATE
11328GASKET, TIMING GEAR OR CHAIN COVER
11345BEARING, INJECTION PUMP GEAR THRUST
11355PLATE, REAR END
11381RETAINER, ENGINE REAR OIL SEAL
11381ASEAL, ENGINE REAR OIL
W(PTO(MIXER))
11383GASKET, ENGINE REAR OIL SEAL RETAINER
1501ENGINE OIL PUMP
91611B0816
main91611-B0816
9161261016
main91612-61016
91651B0825
main91651-B0825
16 parts on this diagram · 17 diagrams in section
