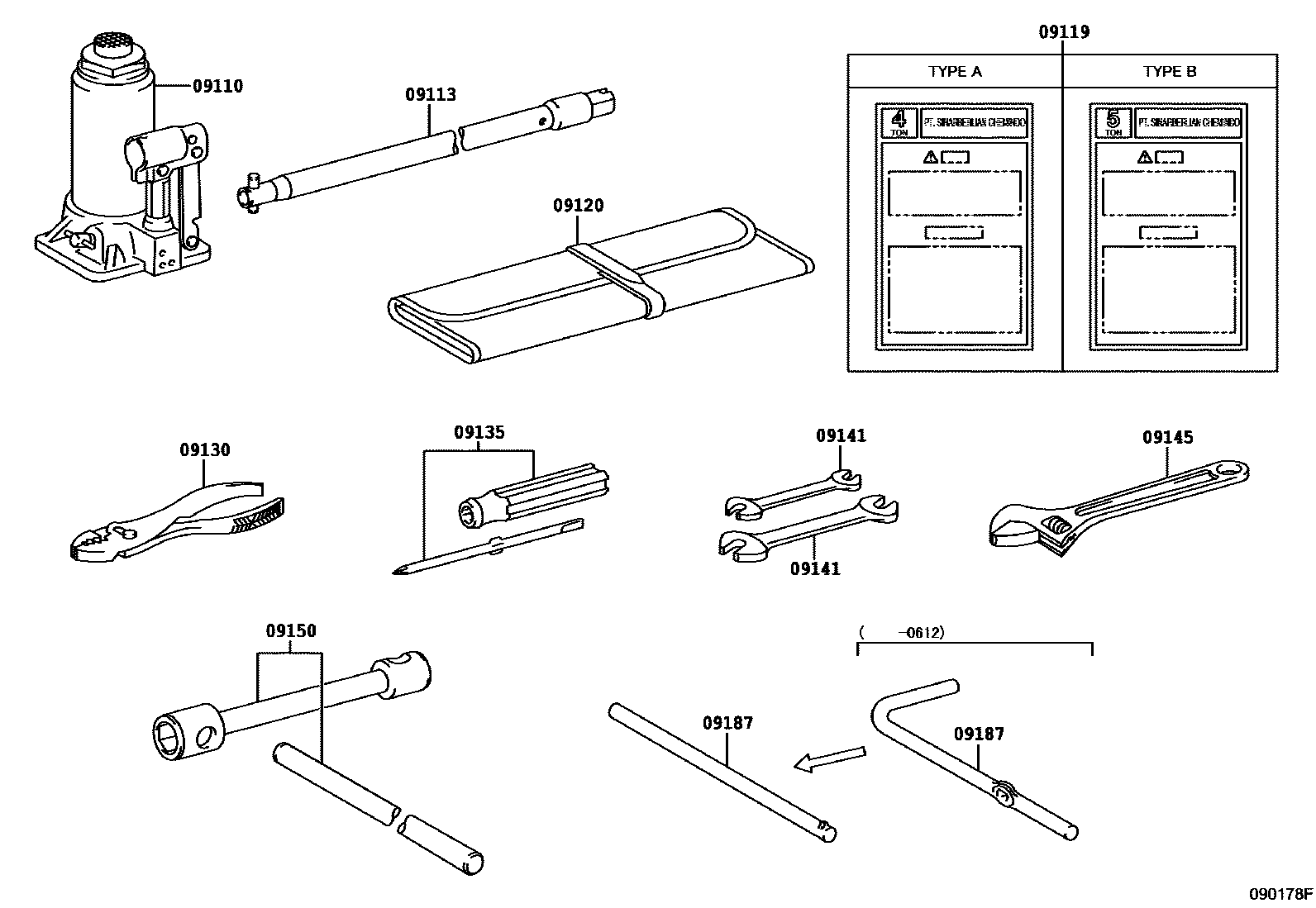

STANDARD TOOL

0001 1 0002 1 0003 1

09110JACK ASSY

main09111-0W050iWU302..DCRTH..T3200209-201005

main09111-0W060iBU343,WU340,XZU342..IDN200209-201005

main09111-0W120iXZU309..IV8;XZU349..DCRTH202203-202310

TYPE A:REFER ILLUST.

main09111-0W120iWU342..DCRTR200912-201612

main09111-37170iXZU305,345200212-200610

sub09111-37271

main09111-37190iBU303,WU300..ST..TS200212-200610

sub09111-37260

main09111-37200iBU303,343,WU300,340,XZU300,320,330,340..WT..(GCC,GEN,SA,TAIW)200212-200406

main09111-37230iBU303,343,WU300,340,XZU300,320,330,340..WT..(GCC,GEN,TAIW)200406-200804

sub09111-37280

main09111-37280iWU30#,34#..GCC,GEN200805-200906

sub09111-37281

main09111-37281iWU30#,34#..GCC,GEN200907-201005

sub09111-37282

main09111-37282iWU30#,34#..GCC,GEN201006-201106

sub09111-37283

main09111-F1010iWU342,352..DCRTR201612

main09111-F1010iXZU359;XZU349..5F..DCRTJ202203-202310

TYPE B:REFER ILLUST.

09113HANDLE, JACK

main09113-0W010iBU303,343,WU300,340,XZU342..IDN200209-200612

main09113-0W020iWU302,342..(DCRTH,DCRTJ)..IDN200612-201005

main09113-0W030iXZU349..6F;XZU309..IV3200912-202310

main09113-37060iWU300..SA200212-200802

sub09113-37070

main09113-37070iXZU307,337,347200212-201106

sub09113-0W030

main09113-37100iBU303..RHD..WT..CBU200212-200610

sub09113-0W080

main09113-37120iWU30#,34#..CBU200610-201106

09119LABEL, JACK CAUTION

main09119-0W030iBU303,WU300..T3200209-201005

TYPE A:REFER TO ILLUSTRATION

main09119-0W070iBU343,WU340,XZU342..IDN200209-201005

TYPE B:REFER TO ILLUSTRATION

main09119-0W120iWU302,342,352..DCRTP200912-202310

09120BAG, TOOL

main09120-0S010iXZU349..5F;XZU309,359..IV1,IV8200912-202310

main09120-0W010iWU302,342..(DCRTH,DCRTJ)..IDN200209-201005

main09120-37030iBU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW200212-201012

main09120-37031iWU30#,34#..GCC,GEN201101-201106

09130PLIERS

main09130-36010iWU302,342,352..DCRTP,DCRTR200912-202310

main90080-99027iBU303,343,WU300,340,XZU342..IDN200209-201005

main99913-11500iWU30#,34#..GCC,GEN200212-201106

09135DRIVER, SCREW

main09135-36010iWU302,342,352..DCRTP,DCRTR200912-202310

main90080-99024iWU302,342..(DCRTH,DCRTJ)..IDN200209-201005

main99915-10700iBU300,340200212-201106

09141SPANNER

main09141-0W010iXZU349..5F;XZU309,359..IV1,IV8200912-202310

10 X 12

main09141-0W020iXZU349..5F;XZU309,359..IV1,IV8200912-202310

14 X 17

main90037-12001iBU303,343,WU300,340,XZU305,345..ARL,GCC,GEN200212-200610

17 X 19

main90080-99025iBU303,343,WU300,340,XZU342..IDN200209-201005

14 X 17

main90080-99026iWU302,342..(DCRTH,DCRTJ)..IDN200209-201005

10 X 12

main99914-10810iBU300,340200212-200610

8 X 10

main99914-11012iWU30#,34#..GCC,GEN200610-201106

10 X 12

main99914-11214iBU303,343,WU300,340,XZU305,345..ARL,GCC,GEN200212-200610

12 X 14

main99914-11417iWU30#,34#..GCC,GEN200610-201106

14 X 17

09145WRENCH, MONKEY

main90080-99023iBU303,343,WU300,340,XZU342..IDN200209-200612

09150WRENCH, HUB NUT BOX

main09150-0W010iWU302..DCRTH..T3200209-201005

main09150-0W020iWU342..(DCRTH,DCRTJ)..IDN200209-201005

main09150-37030iWU30#,34#..GCC,GEN200212-201106

main09151-0W030iXZU309,349..ST..IV8200912-202310

main09151-36051iXZU359;XZU349..5F..WT200912-202310

09187HANDLE, SPARE WHEEL CARRIER

main09187-0W010iBU303,343,WU300,340,XZU342..IDN200209-200612

main09187-0W020iWU302,342..(DCRTH,DCRTJ)..IDN200612-201005

main09187-0W030iXZU349..5F;XZU309,359..IV1,IV8200912-202310

main09187-37010iBU300,340200212-201106

10 parts on this diagram · 3 diagrams in section
