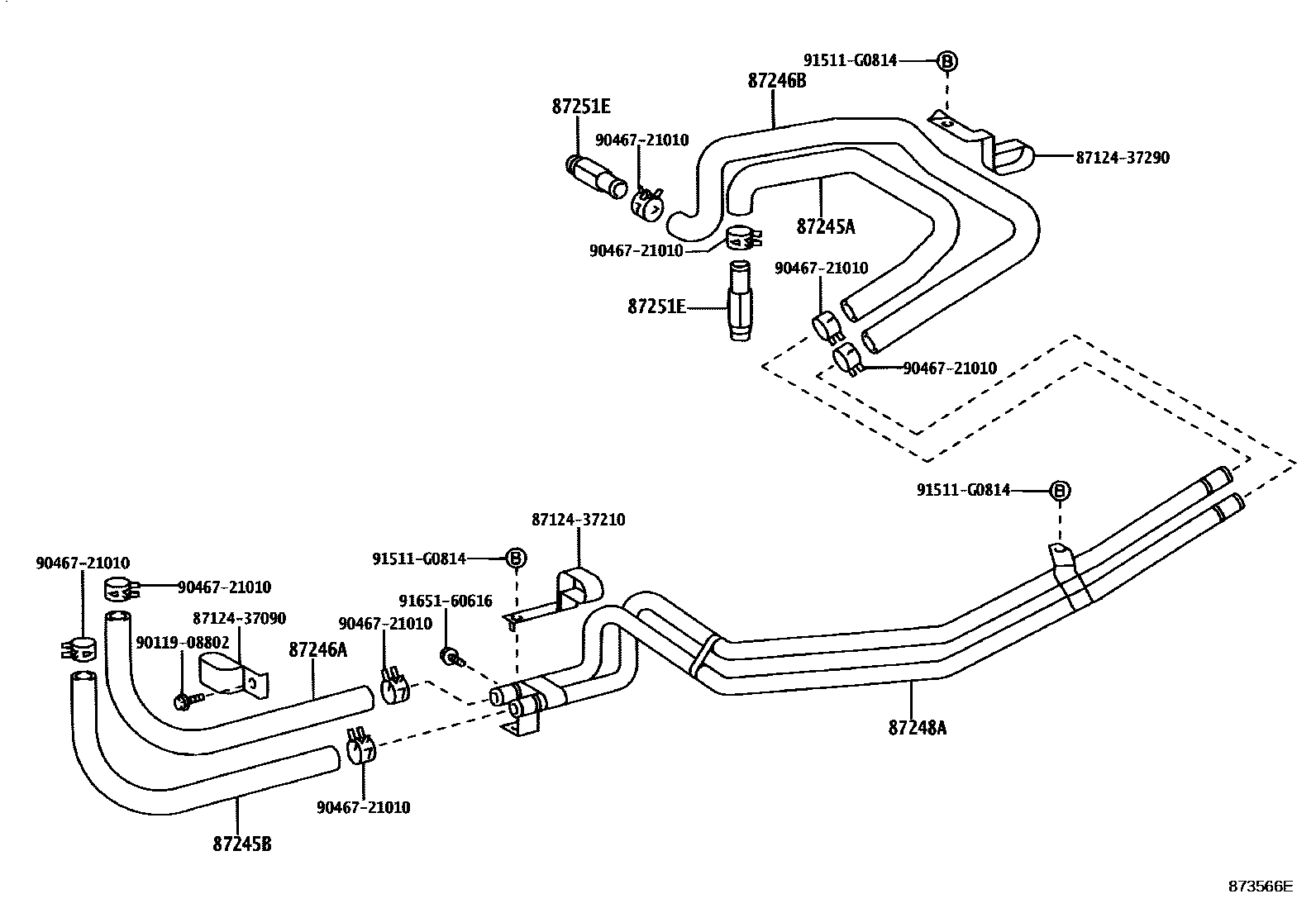

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1

87245AHOSE, HEATER WATER, INLET A

main87245-37661iXZU302,307,342200010-200206

main87246-37310iXZU300,320,330,340199907-200212

87245BHOSE, HEATER WATER, INLET B

main87245-37840iXZU302,307,342200010-200206

main87245-3V120iXZU300,320,330,340199907-200212

L=490

87246AHOSE, HEATER WATER, OUTLET A

main87245-3V120iXZU300,320,330,340199907-200212

L=490

main87246-37091iXZU302,307,342200010-200206

87246BHOSE, HEATER WATER, OUTLET B

main87245-3V360iXZU300,320,330,340199907-200206

main87245-3V361iXZU300,320,330,340200206-200212

main87246-37300iXZU302,307,342200010-200206

87248APIPE, HEATER WATER INLET, A

main87248-37091iXZU302,307,342200010-200206

main87248-37280iXZU300,320,330,340199907-200103

main87248-37281iXZU300,320,330,340200103-200212

87251EJOINT, WATER, NO.2

main87251-30200×2iXZU300..20T200108-200212

main87251-90B01×2iXZU300,320,330,340..30T,40T199907-200212

8712437090CLAMP, HEATER

main87124-37090

8712437210CLAMP, HEATER

main87124-37210

8712437290CLAMP, HEATER

main87124-37290

9011908802

main90119-08802

9046721010

main90467-21010

91511G0814

main91511-G0814

9165160616

main91651-60616

13 parts on this diagram · 2 diagrams in section
