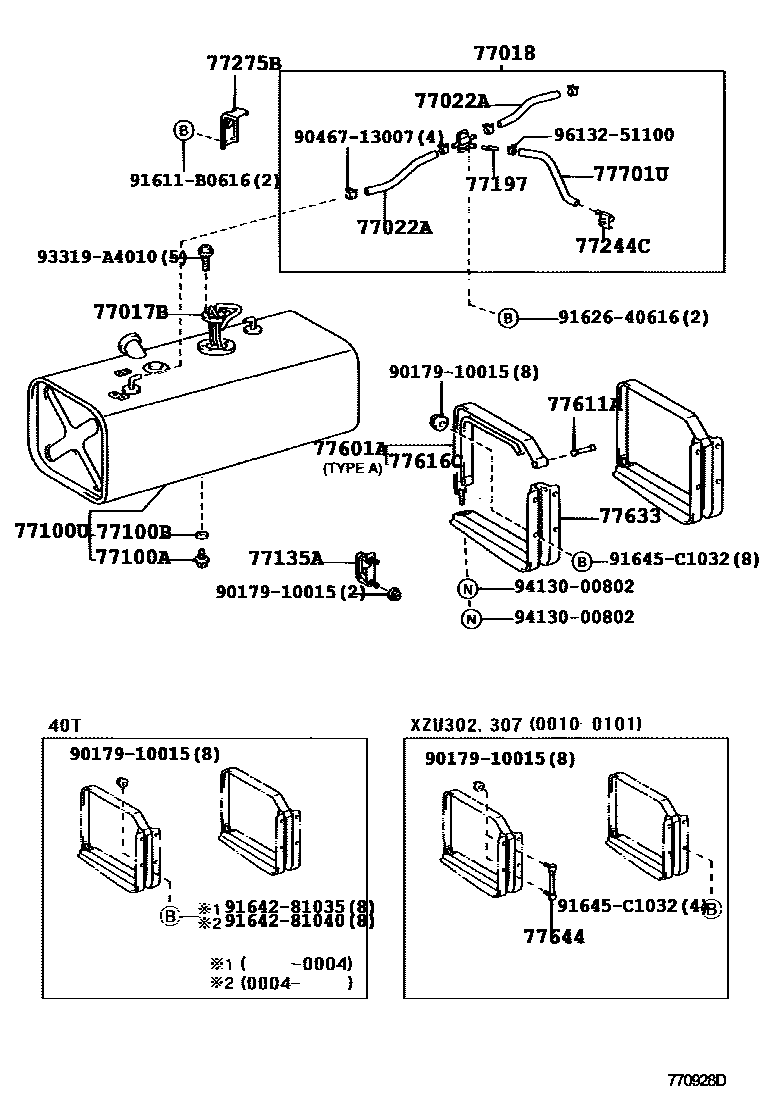

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK W(SUB TANK) 0003 1FUEL TUBE 0004 1FUEL TUBE 0005 1CLAMP 0006 1FUEL TUBE 0007 1FUEL TUBE 0008 1FUEL TUBE

77017BTUBE SUB-ASSY, FUEL TANK VENT

main77017-37010iXZU30#,320,330,34#199907-200212

77018VALVE SUB-ASSY, FUEL VAPOUR SEPARATE

main77018-37050iXZU30#,320,330,34#199907-200212

77022AHOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

main95333-08030×2iXZU30#,320,330,34#199907-200212

L=300(*H,L=220)

77100APLUG(FOR FUEL TANK)

main90105-12116iXZU300,320,330,340199907-200212

77100BGASKET(FOR FUEL TANK)

main90430-12245iXZU300,320,330,340199907-200212

77100UTANK SUB-ASSY, FUEL

main77001-37210iXZU300,302,320199907-200212

780X310X385

main77001-37220iXZU330,34#199907-200212

960X310X385

main77001-37240iXZU307200010-200206

780X310X385

77135APROTECTOR, FUEL TANK SIDE

main77135-37020iXZU330199907-200212

main77135-37030iXZU300199907-200212

main77135-37060iXZU340199907-200212

MAIN TANK

main77135-37070iXZU340199907-200212

main77135-37090iXZU340199907-200212

SUB TANK

77197ORIFICE, FUEL VAPOR

main90977-02001iXZU30#,320,330,34#199907-200212

77244CJOINT, FUEL TUBE, NO.2

main77244-37010iXZU34#199907-200212

77275BPROTECTOR, FUEL LIQUID VAPOR SEPARATOR VALVE

main77275-36020iXZU320199907-200212

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-36140×2iXZU34#199907-200212

W(SUB FUEL TANK)

main77601-36150×2iXZU30#,320,330,34#199907-200212

77611BAND, FUEL TANK

main77616-36030×2iXZU34#199907-200212

77611APIN (FOR FUEL TANK BAND)

main77629-36010×2iXZU30#,320,330,34#199907-200212

77616CSEAT, FUEL TANK BAND

main77616-36030×2iXZU30#,320,330,34#199907-200212

77633STAY, FUEL TANK

main77501-37080×2iXZU30#,320,330,34#199907-200212

main77633-37100×2iXZU34#199907-200212

W(SUB FUEL TANK)

77644BOLT, FUEL TANK

main77644-37010×2iXZU302,307200010-200101

77701UHOSE, FUEL (FOR CHECK VALVE)

main95333-06040iXZU30#,320,330,34#199907-200212

*H,L=400

main95333-06060iXZU34#199907-200210

*H,L=420

9017910015

main90179-10015

9046713007

main90467-13007

91611B0616

main91611-B0616

9162640616

main91626-40616

9164281035

main91642-81035

9164281040

main91642-81040

91645C1032

main91645-C1032

93319A4010

main93319-A4010

9413000802

main94130-00802

9613251100

main96132-51100

27 parts on this diagram · 8 diagrams in section
