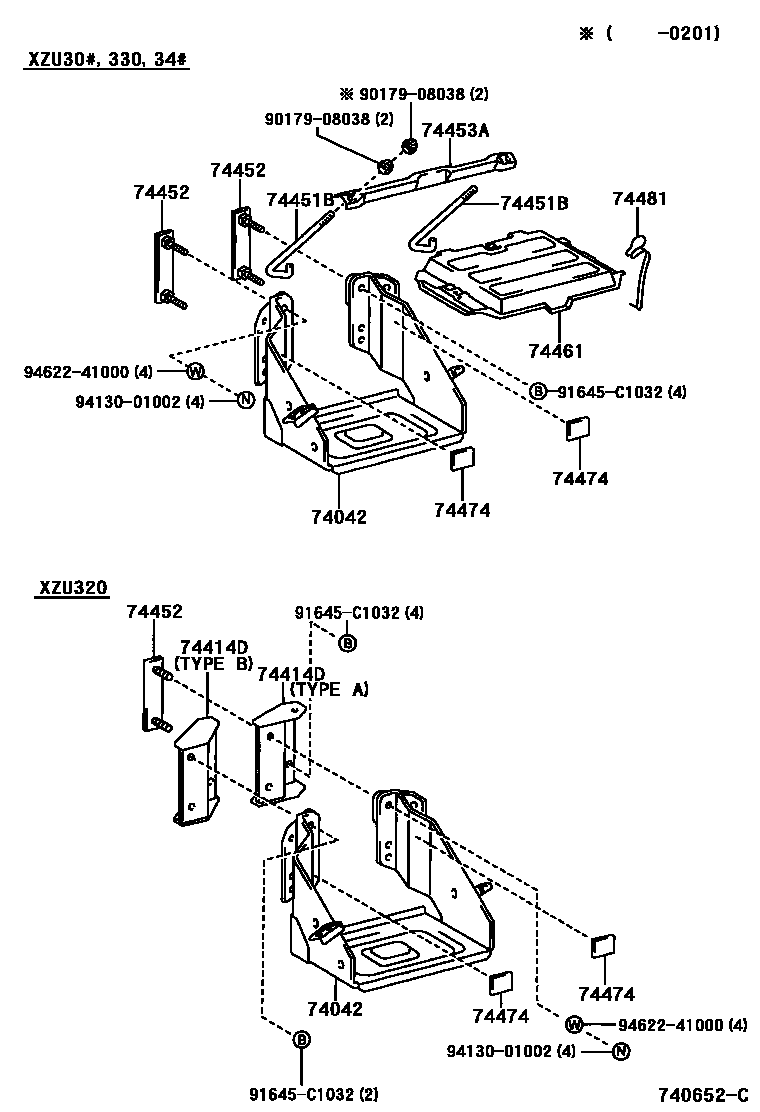

BATTERY CARRIER

74042BRACKET SUB-ASSY, BATTERY

main74042-37040iXZU300,302,342..20T200010-200212

main74042-37050iXZU302,342200010-200206

W(95D31L X 2 BATTERY)

main74042-37110iXZU307200010-200206

main74042-37120iXZU307200010-200206

W(95D31L X 2 BATTERY)

74414DSUPPORT, BATTERY CARRIER

main74414-37070iXZU320199907-200212

TYPE A:REFER ILLUST.

main74414-37080iXZU320199907-200212

TYPE B:REFER ILLUST.

74451BBOLT, BATTERY CLAMP

main74451-37010×2iXZU30#,342..20T200010-200201

main74451-37011×2iXZU30#,342..20T200201-200212

main74451-37020×2iXZU302,307,342;XZU300,320,330,340..30T,40T199907-200201

W(BATTERY=95D31R X 2)

main74451-37021×2iXZU302,307,342;XZU300,320,330,340..30T,40T200201-200212

W(BATTERY=95D31R X 2)

74452PLATE, BATTERY SET

main74452-37020×2iXZU302,307,342200010-200206

main74452-37030×2iXZU300,330,340199907-200210

main74452-37031×2iXZU300,330,340200210-200212

74453ABAR, BATTERY SET PLATE

main74453-36070iXZU30#,320,330,34#199907-200212

74461COVER, BATTERY

main74461-37020iXZU30#,342..20T200010-200212

main74461-37030iXZU302,307,342200010-200206

W(95D31L X 2 BATTERY)

main74461-37040iXZU302,307..WT200010-200206

W(80D26L X 2 BATTERY)

74474PAD, BATTERY

main74475-36040×2iXZU30#,320,330,34#199907-200212

74481CLAMP, BATTERY HOLD DOWN

main74481-36030×2iXZU30#,320,330,34#199907-200212

9017908038

main90179-08038

91645C1032

main91645-C1032

9413001002

main94130-01002

9462241000

main94622-41000

12 parts on this diagram · 1 diagram in section
