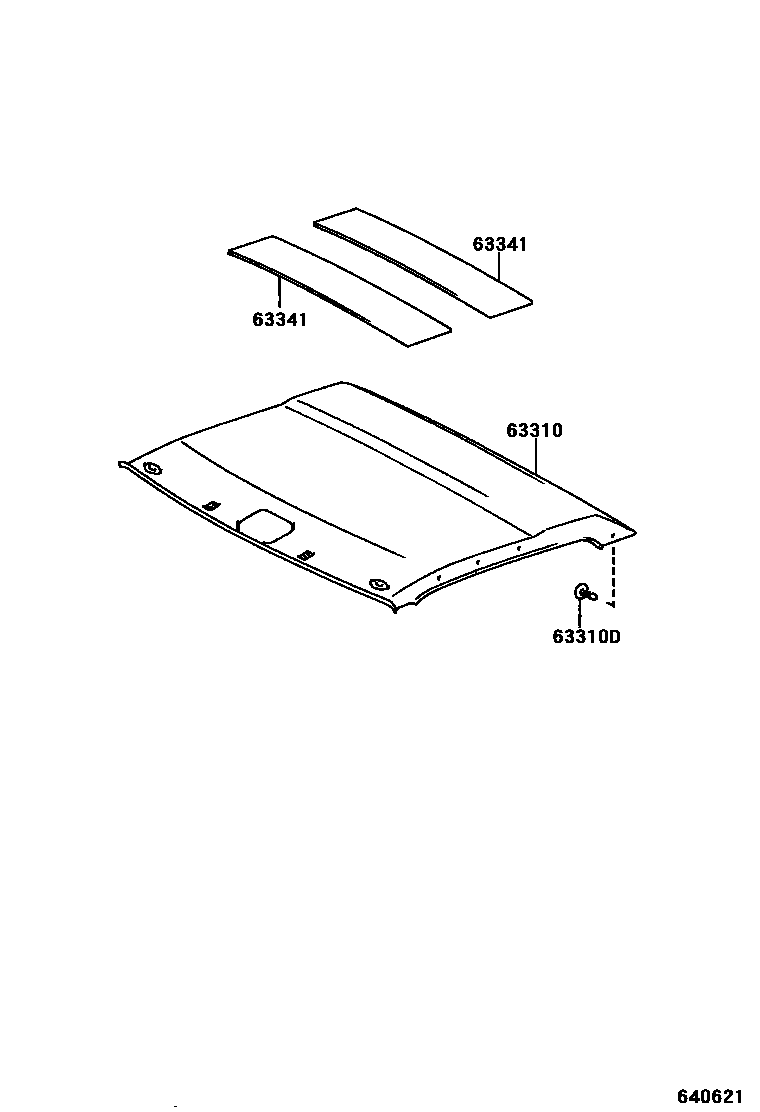

ROOF HEADLINING & SILENCER PAD

0001 1 0002 1HIGH ROOF

63310HEADLINING ASSY, ROOF

main63310-37040-B0iXZU30#,330,34#..WT199907-200212

W(HIGH ROOF),MEDIUM CHARCOAL,TRIM1#

main63311-37020-B0iXZU320199907-200212

MEDIUM CHARCOAL,TRIM1#

63310DCLIP, ROOF HEADLINING

main90467-05101-B2×8iXZU30#,330,34#..WT; XZU320199907-200212

MD.CHARCOAL,TRIM1#; W(HIGH ROOF),MD.CHARCOAL,TRIM1#

63341PAD, ROOF SILENCER, NO.1

main63341-35110×2iXZU302,307,342200010-200206

3 parts on this diagram · 2 diagrams in section
