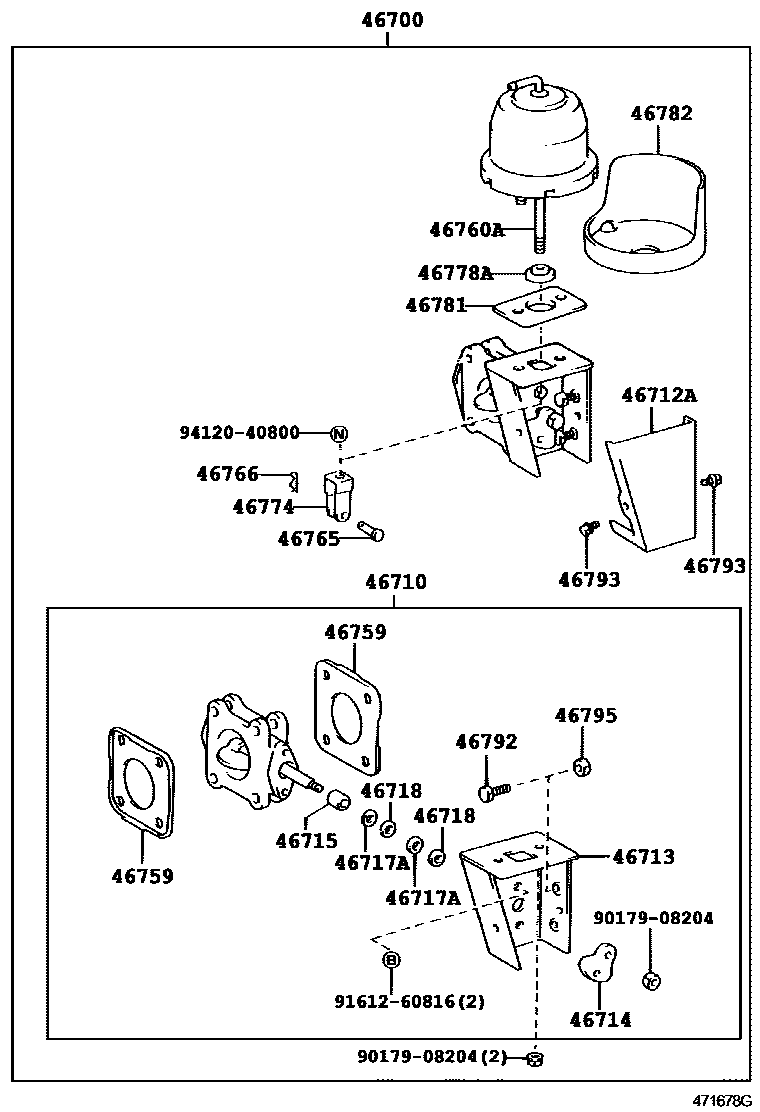

EXHAUST BRAKE ASSEMBLY & VACUUM CYLINDER

0001 1 0002 1

46700RETARDER ASSY, EXHAUST

main46700-37030iXZU302,307,342200010-200104

main46700-37031iXZU302,307,342200104-200206

main46700-37100iXZU300,320,330,340199907-200212

46710VALVE ASSY, EXHAUST BRAKE

main46710-37030iXZU302,307,342200010-200104

main46710-37031iXZU302,307,342200104-200206

main46710-37050iXZU300,320,330,340..30T,40T199907-200212

46712ACOVER, EXHAUST BRAKE BRACKET

main46712-36060iXZU300,320,330,340199907-200212

main46712-37030iXZU302,307,342200010-200206

46713BRACKET, EXHAUST VALVE

main46713-36060iXZU300,320,330,340..30T,40T199907-200212

main46713-37030iXZU302,307,342200010-200206

46714LEVER, EXHAUST VALVE

main46714-36010iXZU300,320,330,340..30T,40T199907-200212

main46714-37030iXZU302,307,342200010-200206

46715BUSH, EXHAUST VALVE, NO.1

main46715-36010iXZU300,320,330,340..30T,40T199907-200212

L=16.0

main46715-37030×2iXZU302,307,342200010-200104

L=14,OD=18

main46715-37031×2iXZU302,307,342200104-200206

L=14,OD=18

46717ARING, EXHAUST VALVE SEAL, NO.1

main46717-36010×2iXZU300,320,330,340..30T,40T199907-200212

main46717-37030×2iXZU302,307,342200010-200206

46718RING, EXHAUST VALVE SEAL, NO.2

main46718-36010×2iXZU300,320,330,340..30T,40T199907-200212

main46718-37030×2iXZU302,307,342200010-200206

46759GASKET, EXHAUST RETARDER

main46759-36040×2iXZU300,320,330,340..30T,40T199907-200212

46760ACHAMBER ASSY, EXHAUST BRAKE

main46760-37030iXZU302,307,342200010-200206

main46760-37050iXZU300,320,330,340199907-200212

46765PIN, VACUUM CYLINDER CLEVIS

main46765-36010iXZU300,320,330,340199907-200212

main46765-37030iXZU302,307,342200010-200206

46766PIN, VACUUM CYLINDER CLEVIS SNAP

main46766-36010iXZU300,320,330,340199907-200212

main46766-37030iXZU302,307,342200010-200206

46774CLEVIS, EXHAUST BRAKE ROD

main46744-25010iXZU300,320,330,340199907-200212

main46774-37030iXZU302,307,342200010-200206

46778ABEARING, EXHAUST BRAKE CHAMBER ROD

main46778-36060iXZU300,320,330,340199907-200212

46781INSULATOR, EXHAUST BRAKE CHAMBER, NO.1

main46781-28010iXZU300,320,330,340199907-200212

main46781-37030iXZU302,307,342200010-200206

46782INSULATOR, EXHAUST BRAKE CHAMBER, NO.2

main46782-36130iXZU300,320,330,340199907-200212

46792BOLT, EXHAUST VALVE STOPPER

main46792-36010×2iXZU300,320,330,340..30T,40T199907-200212

main46792-37030×2iXZU302,307,342200010-200206

46793BOLT, EXHAUST VALVE LINK COVER

main46793-36010×2iXZU300,320,330,340199907-200212

main93381-16008×2iXZU302,307,342200010-200206

46795NUT, EXHAUST VALVE BRACKET

main46795-36010×2iXZU300,320,330,340..30T,40T199907-200212

main46795-37030iXZU302,307,342200010-200206

9017908204

main90179-08204

9161260816

main91612-60816

9412040800

main94120-40800
