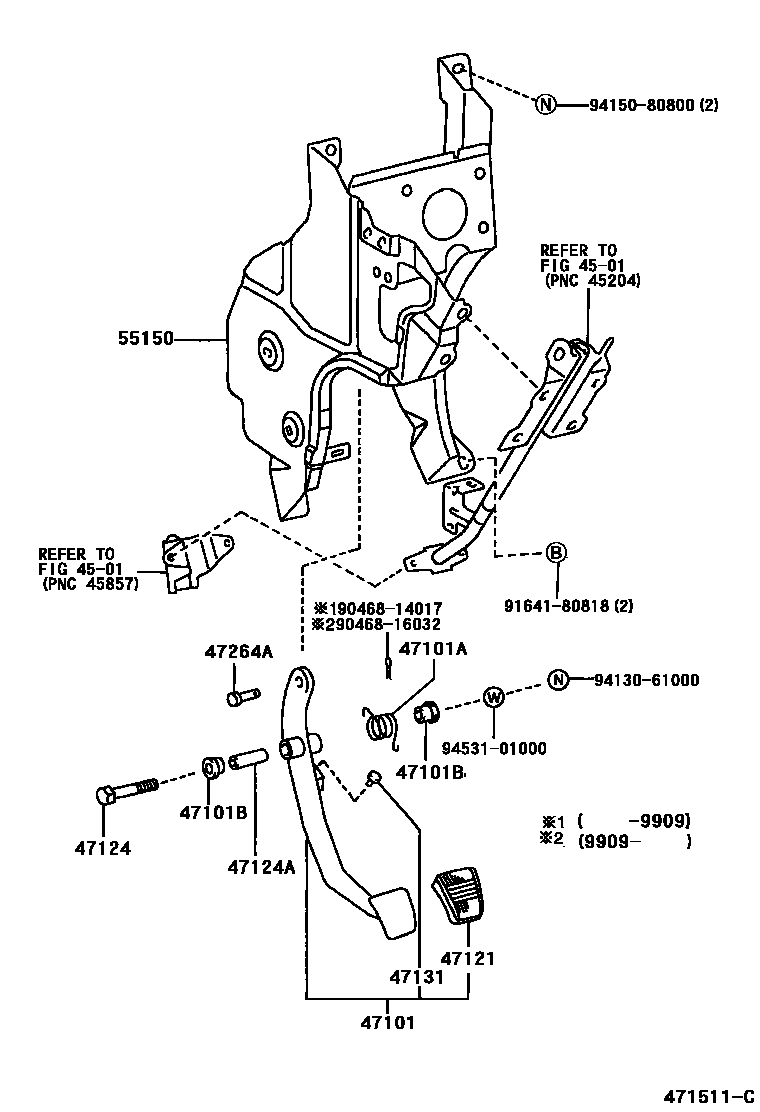

BRAKE PEDAL & BRACKET

4501STEERING COLUMN & SHAFT

→ Go to FIG 45-01

47101PEDAL SUB-ASSY, BRAKE

main47101-37050iXZU30#,320,330,34#199907-200212

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90508-35324iXZU30#,320,330,34#199907-200212

47101BBUSH(FOR BRAKE PEDAL)

main90386-13007×2iXZU30#,320,330,34#199907-200212

47121PAD, BRAKE PEDAL

main31321-14020iXZU30#,320,330,34#199907-200212

47124SHAFT, BRAKE PEDAL

main91112-61070iXZU30#,320,330,34#199907-200212

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10004iXZU30#,320,330,34#199907-200212

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iXZU30#,320,330,34#199907-200212

47264APIN(FOR PUSH ROD)

main90240-10015iXZU300,320,330,340199907-199908

main90240-10037iXZU30#,320,330,34#199909-200212

55150BRACKET ASSY, PEDAL

main55150-37050iXZU300,320,330,340199907-200104

main55150-37051iXZU300,320,330,340200104-200108

main55150-37052iXZU300,320,330,340200108-200212

main55150-37071iXZU302,307,342200010-200104

main55150-37072iXZU302,307,342200104-200107

main55150-37073iXZU302,307,342200107-200206

9046814017

main90468-14017

9046816032

main90468-16032

9164180818

main91641-80818

9413061000

main94130-61000

9415080800

main94150-80800

9453101000

main94531-01000

16 parts on this diagram · 1 diagram in section
