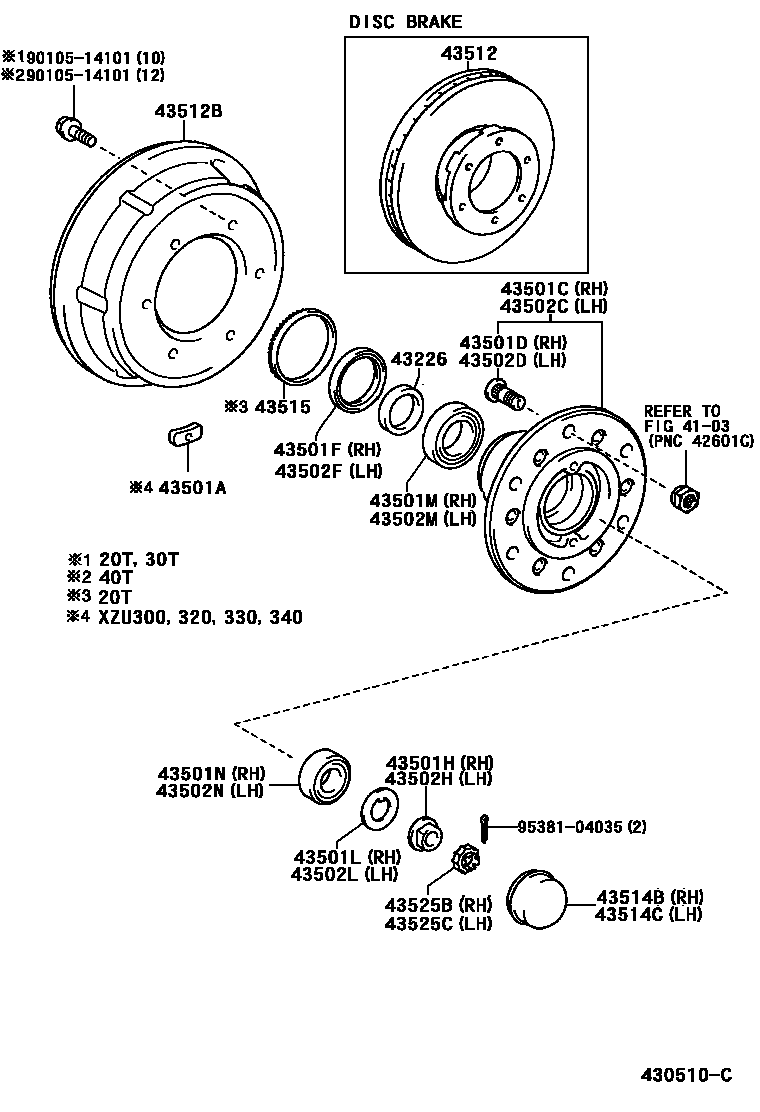

FRONT AXLE HUB

4103

43226SPACER, STEERING KNUCKLE

main43226-37020iXZU30#,320,330,34#199907-200212

43501APIECE, BALANCE (FOR FRONT BRAKE DRUM)

main90937-01117iXZU300,320,330,340199907-200212

10G

main90937-01118iXZU300,320,330,340199907-200212

20G

main90937-01119iXZU300,320,330,340199907-200212

30G

main90937-01120iXZU300,320,330,340199907-200212

40G

main90937-01121iXZU300,320,330,340199907-200212

50G

main90937-01122iXZU300,320,330,340199907-200212

60G

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43501-37060iXZU30#,320,330,342..20T,30T200004-200212

sub43501-37061

sub43514-37060

main43501-37070iXZU300,320,330..30T199907-200004

sub43501-37060

main43501-37080iXZU330,340..40T200004-200212

main43501-37090iXZU330,340..40T199907-200004

sub43501-37080

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02071iXZU30#,320,330,342..20T,30T199907-200212

43501FSEAL, OIL (FOR FRONT AXLE HUB RH)

main90311-68002iXZU30#,320,330,34#199907-200212

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90178-28001iXZU30#,320,330,34#199907-200212

43501LWASHER, CLAW (FOR FRONT AXLE HUB RH)

main90214-29001iXZU30#,320,330,34#199907-200212

43501MBEARING (FOR FRONT AXLE HUB INNER RH)

main90366-50069iXZU30#,320,330,34#199907-200212

43501NBEARING (FOR FRONT AXLE HUB OUTER RH)

main90366-35105iXZU30#,320,330,34#199907-200212

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-37060iXZU30#,320,330,342..20T,30T200004-200212

sub43502-37061

sub43514-37060

main43502-37070iXZU300,320,330..30T199907-200004

sub43502-37060

main43502-37080iXZU330,340..40T200004-200212

main43502-37090iXZU330,340..40T199907-200004

sub43502-37080

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02072iXZU330,340..40T199907-200212

43502FSEAL, OIL (FOR FRONT AXLE HUB LH)

main90311-68002iXZU30#,320,330,34#199907-200212

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90178-28001iXZU30#,320,330,34#199907-200212

43502LWASHER, CLAW (FOR FRONT AXLE HUB LH)

main90214-29001iXZU30#,320,330,34#199907-200212

43502MBEARING (FOR FRONT AXLE HUB INNER LH)

main90366-50069iXZU30#,320,330,34#199907-200212

43502NBEARING (FOR FRONT AXLE HUB OUTER LH)

main90366-35105iXZU30#,320,330,34#199907-200212

43512DISC, FRONT

main43512-37090iXZU302,307,342200010-200206

sub43512-37091

43512BDRUM, BRAKE

main43512-37110iXZU300,320,330..20T,30T199907-200212

main43512-37130iXZU330,340..40T199907-200212

43514BCAP, FRONT AXLE HUB GREASE, RH

main43514-37030iXZU30#,320,330,34#199907-200212

43514CCAP, FRONT AXLE HUB GREASE, LH

main43514-37030iXZU30#,320,330,34#199907-200212

43515ROTOR, SKID CONTROL, FRONT

main43515-37010iXZU302,307,342200010-200206

43525BCAP, FRONT WHEEL ADJUSTING LOCK, RH

main43525-37010iXZU30#,320,330,34#199907-200212

43525CCAP, FRONT WHEEL ADJUSTING LOCK, LH

main43525-37010iXZU30#,320,330,34#199907-200212

9010514101

main90105-14101

9538104035

main95381-04035

26 parts on this diagram · 1 diagram in section
