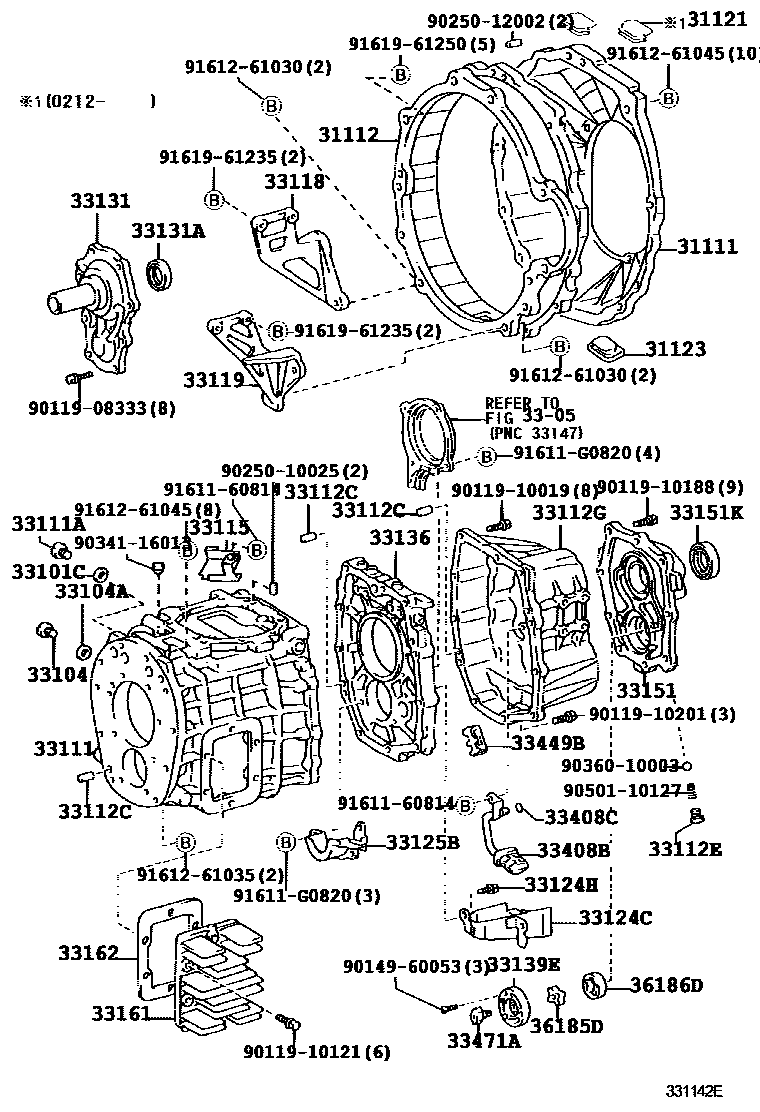

CLUTCH HOUSING & TRANSMISSION CASE (MTM)
31111HOUSING, CLUTCH
W(CLUTCH ADJUSTMENT)
31112HOUSING, CLUTCH, FRONT
31121COVER, CLUTCH HOUSING, NO.1
31123COVER, CLUTCH HOUSING, NO.2
sub31121-36110
3305
33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
33104PLUG SUB-ASSY, DRAIN(MTM)
33104AGASKET, DRAIN PLUG(MTM)
33111CASE, MANUAL TRANSMISSION
33111APLUG, MANUAL TRANSMISSION CASE
33112CPIN, STRAIGHT(FOR TRANSFER ADAPTER)
33112EPLUG, W/HEAD STRAIGHT SCREW(FOR TRANSFER ADAPTER)
33112GCASE, TRANSMISSION, REAR
33115PLATE, TRANSMISSION OIL FILTER
33118PLATE, STIFFENER, RH(MTM)
33119PLATE, STIFFENER, LH(MTM)
33124CPIPE, OIL RECEIVER, NO.1(MTM)
33124HBOLT(FOR OIL RECEIVER PIPE)
33125BRECEIVER, MANUAL TRANSMISSION CASE
33131RETAINER, BEARING, FRONT(MTM)
33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
33136PLATE, TRANSMISSION INTERMEDIATE
33139ECOVER, OIL PUMP
33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33151KSEAL, TYPE T OIL
33161COVER, MANUAL TRANSMISSION POWER TAKE-OFF
33162GASKET, MANUAL TRANSMISSION POWER TAKE-OFF COVER
33408BSTRAINER SUB-ASSY, MANUAL TRANSMISSION OIL(FOR REAR CASE)
33408CRING, O (FOR MANUAL TRANSMISSION OIL STRAINER)
33449BMAGNET, TRANSMISSION
33471ASHAFT, OIL PUMP DRIVE (FOR COUNTER GEAR)
36185DROTOR, TRANSFER OIL PUMP DRIVE(FOR COUNTER GEAR REAR)
36186DROTOR, TRANSFER OIL PUMP DRIVEN (FOR COUNTER GEAR REAR)
9011908333
main90119-08333
9011910019
main90119-10019
9011910121
main90119-10121
9011910188
main90119-10188
9011910201
main90119-10201
9014960053
main90149-60053
9025010025
main90250-10025
9025012002
main90250-12002
9034116013
main90341-16013
9036010003
main90360-10003
9050110127
main90501-10127
9161160814
main91611-60814
91611G0820
main91611-G0820
9161261030
main91612-61030
9161261035
main91612-61035
9161261045
main91612-61045
9161961235
main91619-61235
9161961250
main91619-61250
52 parts on this diagram · 3 diagrams in section
