751270
›

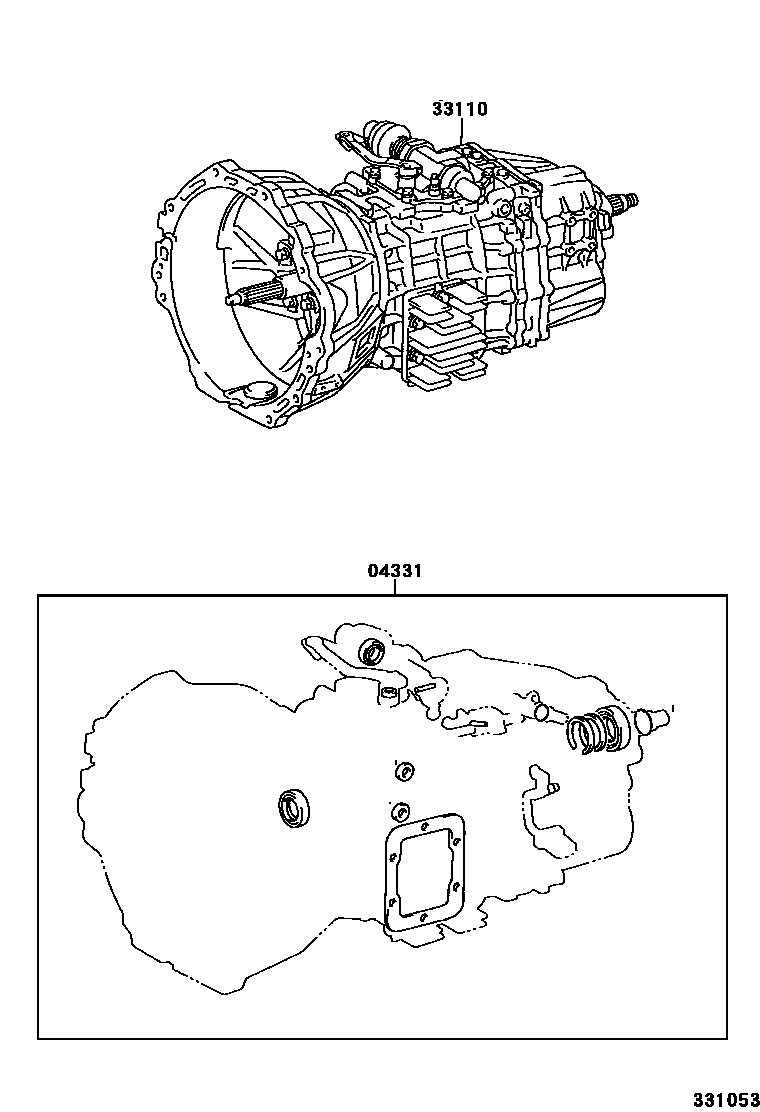

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)
TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)
0001 1H350
0002 1M155
04331
GASKET KIT, MANUAL TRANSMISSION OVERHAUL
main
04331-37030
i
XZU30#,320,330,34#
199907-200212
33110
TRANSMISSION ASSY, MANUAL
main
33110-37830
i
XZU302,307..WT
200010-200206
M155
main
33110-37840
i
XZU302..ST
200010-200206
M155
main
33110-37860
i
XZU300
199907-200212
H350
main
33110-37870
i
XZU320,330,340
199907-200212
H350
main
33110-37881
i
XZU342
200010-200206
H350
2 parts on this diagram · 2 diagrams in section
