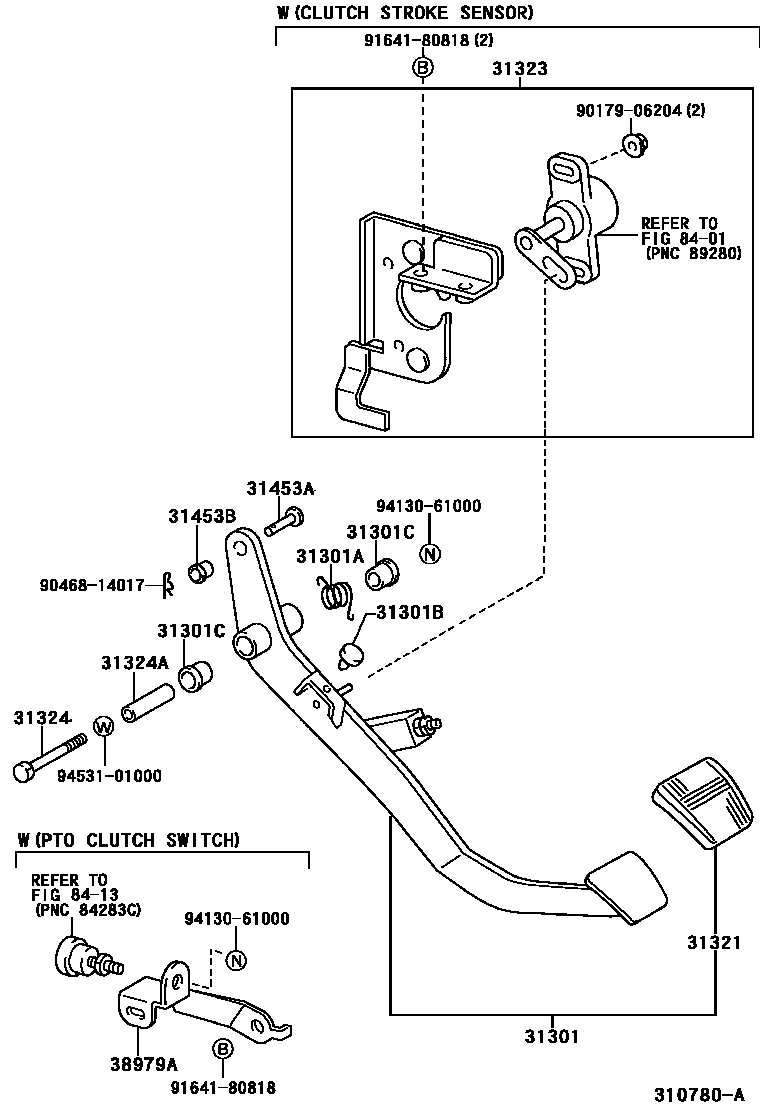

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-37161iXZU302,307,342200010-200206

W(PTO CLUTCH SWITCH)

main31301-37170iXZU302,307,342200010-200206

main31301-37181iXZU300,320,330,340199907-200212

W(PTO CLUTCH SWITCH)

main31301-37190iXZU300,320,330,340199907-200212

31301ASPRING(FOR CLUTCH PEDAL)

main90959-03257iXZU30#,320,330,34#199907-200012

main90959-03344iXZU30#,320,330,34#200012-200212

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iXZU30#,320,330,34#199907-200212

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13007×2iXZU30#,320,330,34#199907-200212

31321PAD, CLUTCH PEDAL

main31321-14020iXZU30#,320,330,34#199907-200212

31323BRACKET, CLUTCH PEDAL

main31302-37011iXZU302,307,342200010-200206

31324SHAFT, CLUTCH PEDAL

main91112-61070iXZU30#,320,330,34#199907-200212

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10004iXZU30#,320,330,34#199907-200212

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90240-08006iXZU30#,320,330,34#199907-200212

L=23.5

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iXZU30#,320,330,34#199907-200212

38979ABRACKET, POWER TAKE-OFF CLUTCH SWITCH

main38979-37011iXZU302,307,342200010-200206

main38979-37031iXZU300,320,330,340199907-200212

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8413POWER TAKE-OFF CONTROL

→ Go to FIG 84-13

9017906204

main90179-06204

9046814017

main90468-14017

9164180818

main91641-80818

9413061000

main94130-61000

9453101000

main94531-01000

18 parts on this diagram · 3 diagrams in section
