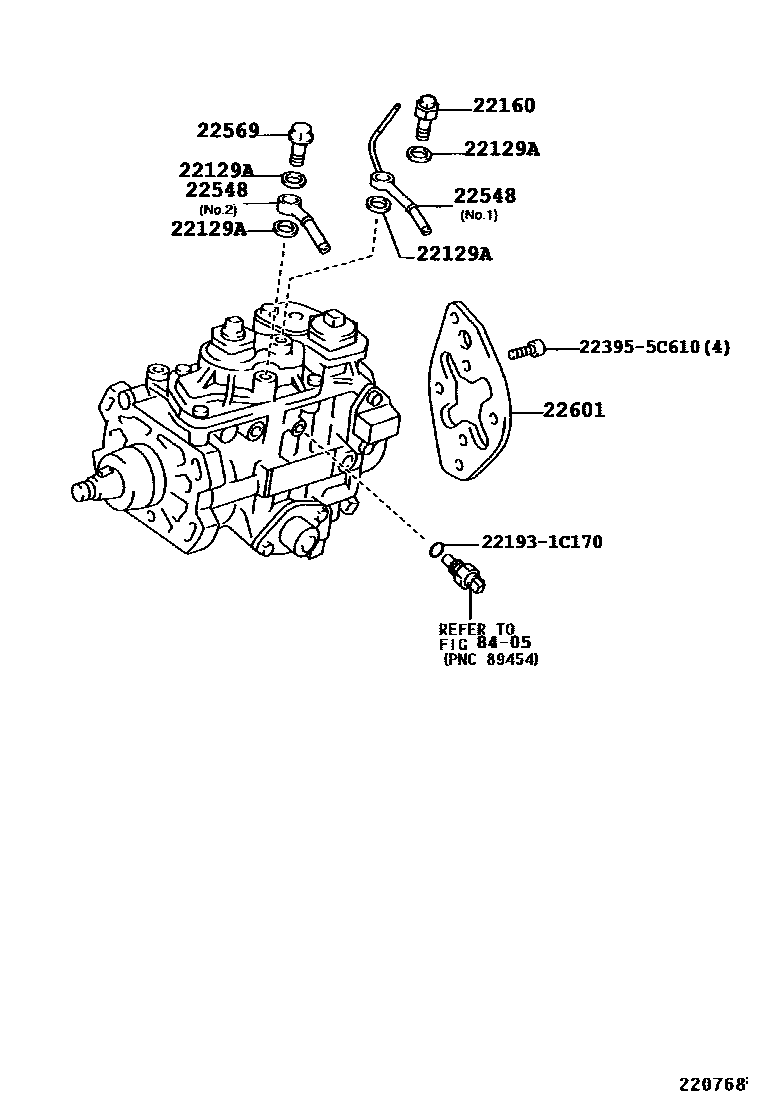

INJECTION PUMP BODY

22129AWASHER, AIR BLEEDER NIPPLE(FOR SCREW PLUG)

main22149-54800×4i15BFTE..XZU300,320,330,340199907-200212

22160SCREW SUB-ASSY, OVERFLOW

main22160-1C170i15BFTE..XZU300,320,330,340199907-200212

22548NIPPLE, SWIVEL

main22548-5C590i15BFTE..XZU300,320,330,340199907-200212

NO.1

main22548-5C610i15BFTE..XZU300,320,330,340199907-200212

NO.2

22569SCREW, OVERFLOW

main22569-1C170i15BFTE..XZU300,320,330,340199907-200110

main22569-1C400i15BFTE..XZU300,320,330,340200110-200212

22601BRACKET SUB-ASSY, IDLE UP

main22601-5C610i15BFTE..XZU300,320,330,340199907-200212

8405ELECTRONIC CONTROLED DIESEL (ECD)

→ Go to FIG 84-05

221931C170RING, O(FOR LEVER CONNECTING PIN)

main22193-1C170

223955C610BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)

main22395-5C610

8 parts on this diagram · 1 diagram in section
